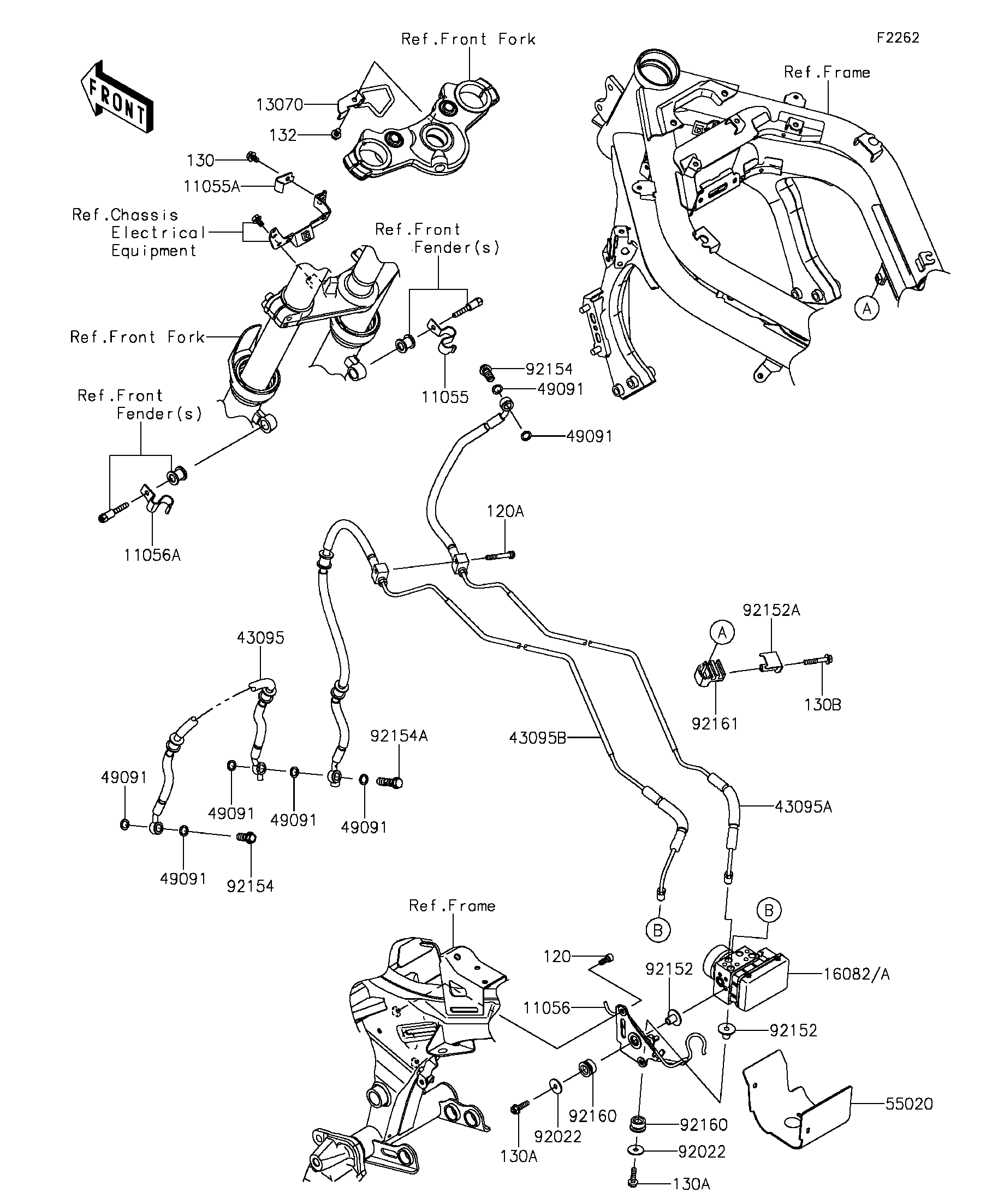

2013 NINJA® 650 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
11056
11056A
13070
16082
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
55020
92022
92022
92152
92152
92152A
92154
92154
92154A
92160
92160
92161
120
120A
130
130A
130A
130B
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-1116 1
BRACKET 11055A 11055-1562 1
BRACKET,ABS UNIT 11056 11056-0807 1
BRACKET 11056A 11056-1083 1
GUIDE 13070 13070-0733 1
PUMP-ASSY-OIL,ABS,WET 16082 16082-0703 1
HOSE-BRAKE,FR,L=545 43095 43095-0627 1
HOSE-BRAKE,HU-M/C 43095A 43095-0637 1
HOSE-BRAKE,HU-CALIPER 43095B 43095-0638 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 7
GUARD,ABS UNIT 55020 55020-0761 1
WASHER,6.5X22X1.6 92022 92022-237 2
COLLAR,6.5X10X14.6 92152 92152-0965 2
COLLAR 92152A 92152-0996 1
BOLT,FLANGED,10X23 92154 92154-0732 2
BOLT,FLANGED,10X37 92154A 92154-0733 1
DAMPER 92160 92160-1141 2
DAMPER,BRAKE PIPE 92161 92161-0347 1
BOLT-SOCKET,6X16 120 120CA0616 2
BOLT-SOCKET,6X40 120A 120CA0640 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X22 130A 130BA0622 2
BOLT-FLANGED,6X35 130B 130BB0635 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
