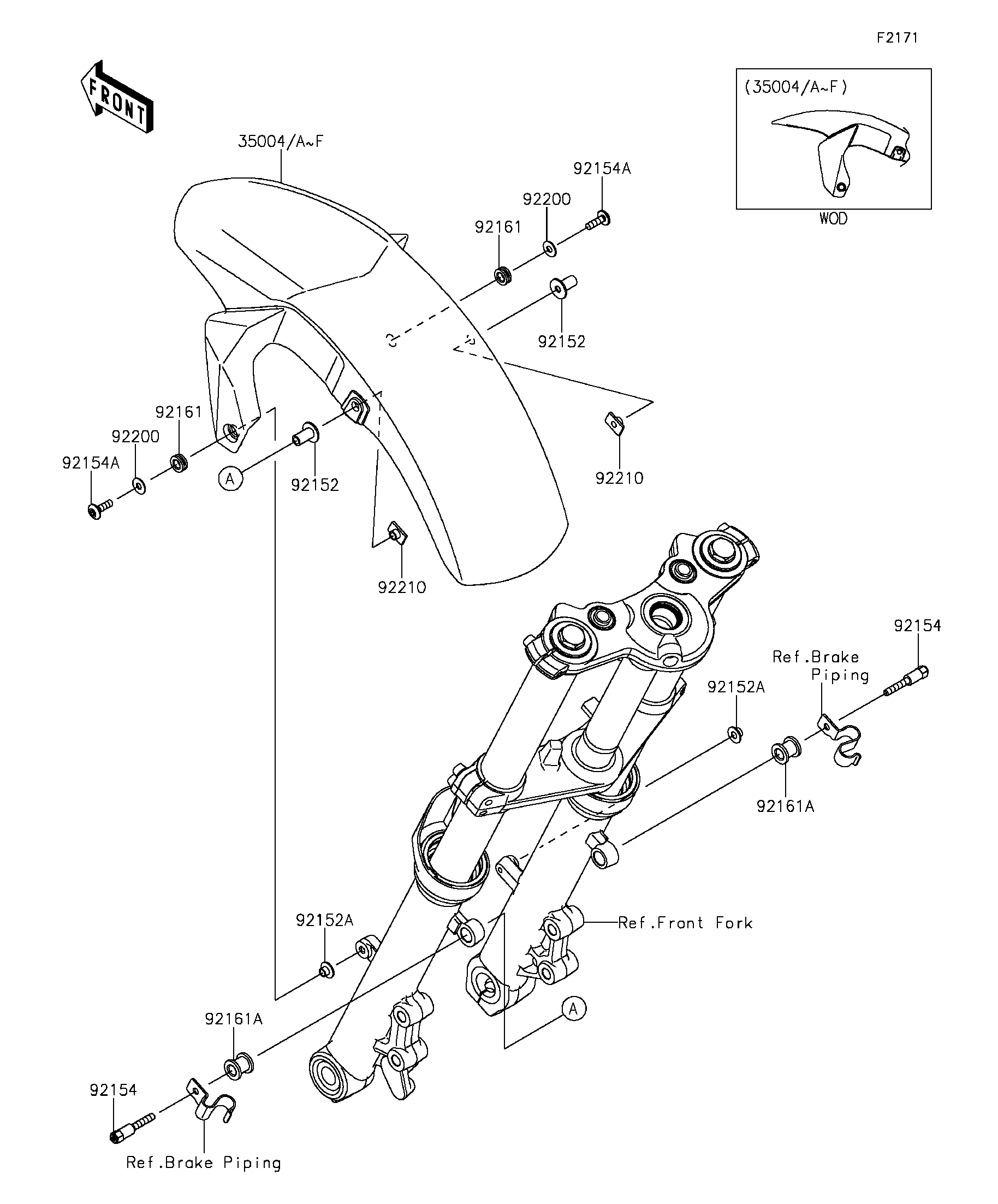

2013 NINJA® 650 ABS - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
35004
35004E
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,P.S.WHITE 35004 35004-0304-25Y 1
FENDER-FRONT,M.F.S.BLACK 35004E 35004-0304-739 1
COLLAR,6.5X10X20.5 92152 92152-1570 2
COLLAR,6.3X8.3X7.2 92152A 92152-1602 2
BOLT 92154 92154-0324 2
BOLT,SOCKET,6X20 92154A 92154-0918 2
DAMPER,8.3X16X6.4 92161 92161-0664 2
DAMPER,10X20X18.9 92161A 92161-1406 2
WASHER,6.5X16X1.0 92200 92200-0796 2
NUT,PLATE,6MM 92210 92210-1352 2
