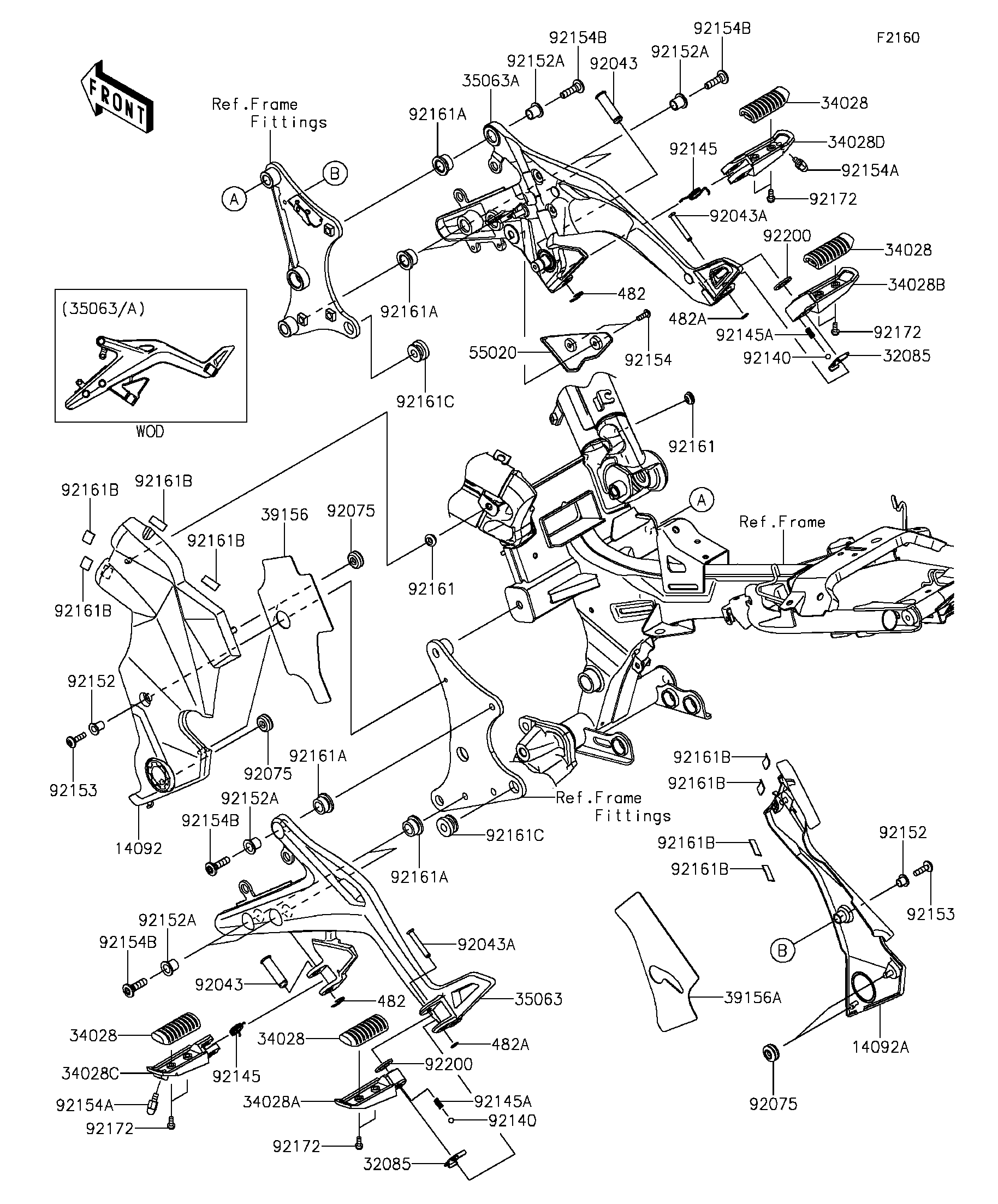

2013 NINJA® 650 ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
14092
14092A
32085
32085
34028
34028
34028
34028
34028A
34028B
34028C
34028D
35063
35063A
39156
39156A
55020
92043
92043
92043A
92043A
92075
92075
92075
92140
92140
92145
92145
92145A
92145A
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92172
92172
92172
92172
92200
92200
482
482
482A
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,PIVOT,LH 14092 14092-0738 1
COVER,PIVOT,RH 14092A 14092-0739 1
STOPPER,REAR STEP 32085 32085-0047 2
STEP,RUBBER 34028 34028-0133 4
STEP,RR,LH 34028A 34028-0314 1
STEP,RR,RH 34028B 34028-0315 1
STEP,FR,LH 34028C 34028-0327 1
STEP,FR,RH 34028D 34028-0328 1
STAY,STEP,LH,F.S.BLACK 35063 35063-0871-18R 1
STAY,STEP,RH,F.S.BLACK 35063A 35063-0872-18R 1
PAD,PIVOT COVER,LH 39156 39156-0817 1
PAD,PIVOT COVER,RH 39156A 39156-0818 1
GUARD,STEP STAY,RH 55020 55020-0742 1
PIN,12X37.5 92043 92043-0026 2
PIN,6X40 92043A 92043-0200 2
DAMPER 92075 92075-1067 5
BALL,6.35MM 92140 92140-0008 2
SPRING,STEP RETURN 92145 92145-0723 2
SPRING 92145A 92145-1319 2
COLLAR,6.8X10X15.1 92152 92152-0975 2
COLLAR,10.6X13.8X15 92152A 92152-0976 6
BOLT,SOCKET,6X23 92153 92153-1267 2
BOLT,SOCKET,5X16 92154 92154-0026 2
BOLT,BANK SENSOR 92154A 92154-0838 2
BOLT,SOCKET,8X30 92154B 92154-0842 6
DAMPER 92161 92161-0631 2
DAMPER,14X26X13.9 92161A 92161-0946 6
DAMPER,12X20X1 92161B 92161-1407 8
DAMPER 92161C 92161-1523 2
SCREW-PAN-WP-CROS,5X14 92172 92172-0473 8
WASHER,16X26X2.3 92200 92200-0772 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
