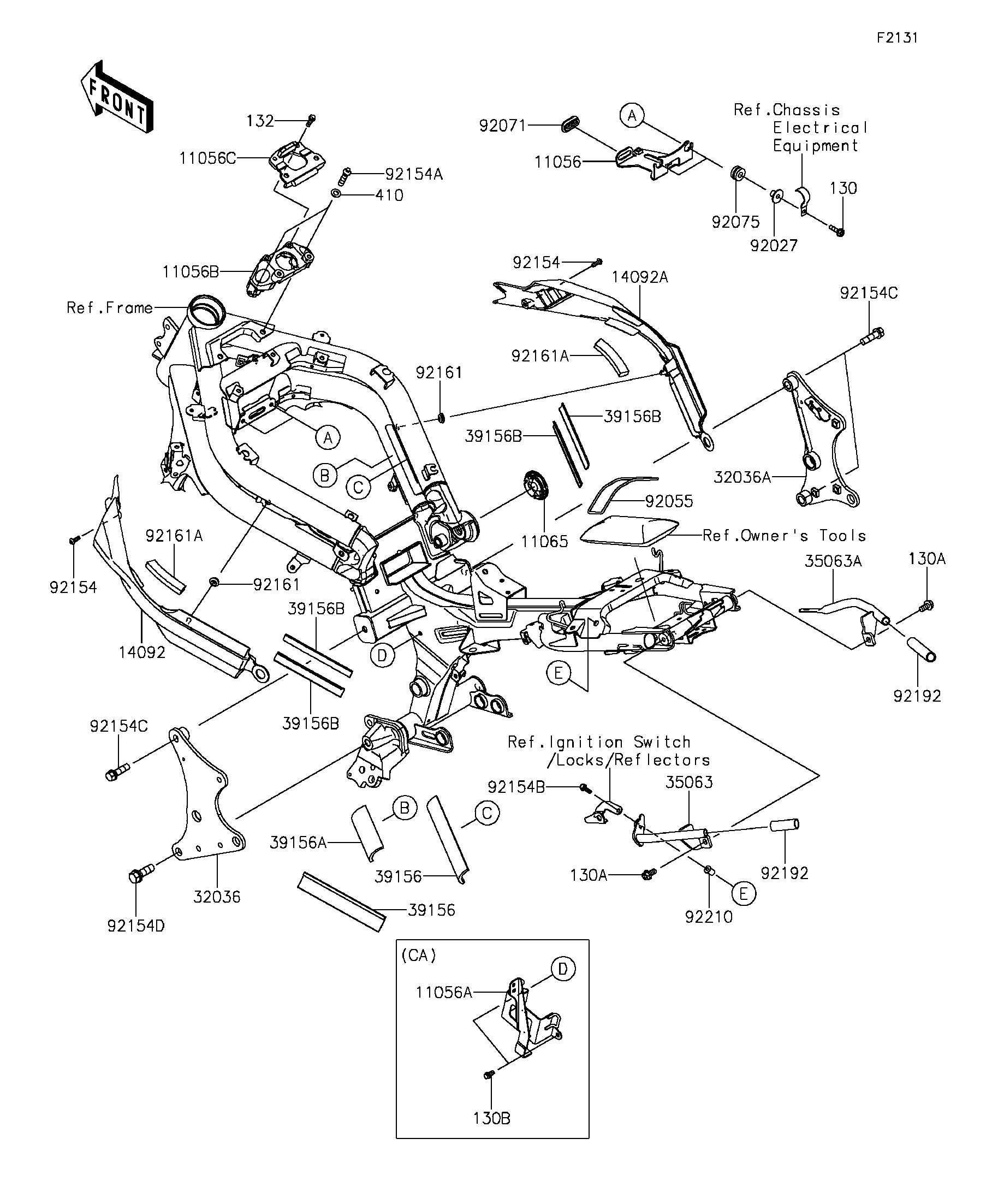

2013 NINJA® 650 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
11056C
11065
14092
14092A
32036
32036A
35063
35063A
39156
39156
39156A
39156B
39156B
39156B
39156B
92027
92055
92071
92075
92154
92154
92154A
92154B
92154C
92154C
92154D
92161
92161
92161A
92161A
92192
92192
92210
130
130A
130A
130B
132
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR 11056 11056-0801 1
BRACKET,CANISTER 11056A 11056-0802 1 CA
BRACKET,IGNITION SW. 11056B 11056-0805 1
BRACKET,IGNITION SW.,UPP 11056C 11056-1717 1
CAP,PIVOT COVER,RH,P.SILVER 11065 11065-0264-458 1
COVER,FRAME,LH 14092 14092-0856 1
COVER,FRAME,RH 14092A 14092-0857 1
BRACKET-SWINGARM,LH 32036 32036-0303 1
BRACKET-SWINGARM,RH 32036A 32036-0304 1
STAY,TAIL COVER,LH 35063 35063-0836 1
STAY,TAIL COVER,RH 35063A 35063-0837 1
PAD,157X40X5 39156 39156-0756 2
PAD,88X40X5 39156A 39156-0757 1
PAD,17X130X2 39156B 39156-0772 4
COLLAR,L=13.1,BLACK 92027 92027-1450 2
RING-O,91.6X3.4 92055 92055-0719 1
GROMMET 92071 92071-0013 1
DAMPER 92075 92075-209 2
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,TORX,8X35 92154A 92154-0730 2
BOLT,FLANGED,5X18 92154B 92154-0785 1
BOLT,FLANGED,10X35 92154C 92154-0862 3
BOLT,FLANGED,12X35 92154D 92154-0863 1
DAMPER 92161 92161-0631 2
DAMPER,10X80X16 92161A 92161-1470 2
TUBE,14X17X50 92192 92192-0700 2
NUT,WELL,5MM 92210 92210-0498 1
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED,8X16 130A 130BA0816 3
BOLT-FLANGED,6X12 130B 130BB0612 2 CA
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
WASHER-PLAIN-SMALL,8MM 410 410AA0800 2
