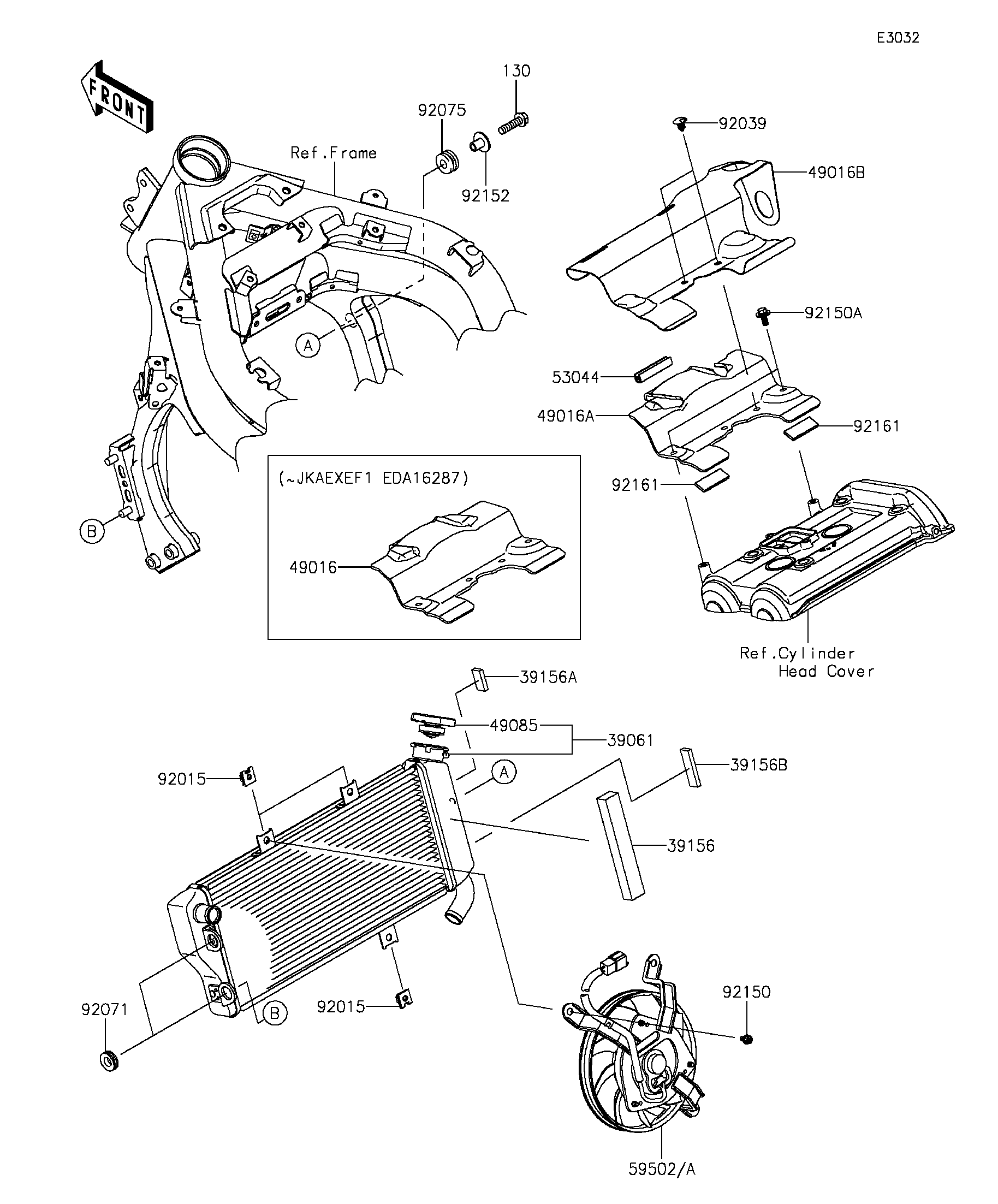

2013 NINJA® 650 ABS - Radiator

DOWNLOAD PDF
SELECT A NEW PART
39061
39156
39156A
39156B
49016
49085
53044
59502A
92015
92015
92071
92075
92150
92150A
92152
92161
92161
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RADIATOR-ASSY 39061 39061-0559 1
PAD 39156 39156-0813 1
PAD 39156A 39156-0814 1
PAD 39156B 39156-0815 1
COVER-SEAL 49016 49016-0566 1 ( - JKAEXEF1 EDA16287)
CAP-ASSY-PRESSURE 49085 49085-1078 1
TRIM,L=50 53044 53044-1185 1
FAN-ASSY 59502A 59502-0587 1 ( - JKAEXEF1 EDA16287)
NUT 92015 92015-1487 3
GROMMET 92071 92071-1115 2
DAMPER,10X24X12 92075 92075-1690 1
BOLT,6X12 92150 92150-1186 3
BOLT,FLANGED,6X14 92150A 92150-1689 2
COLLAR 92152 92152-1603 1
DAMPER 92161 92161-0301 2
BOLT-FLANGED,6X22 130 130BA0622 1
