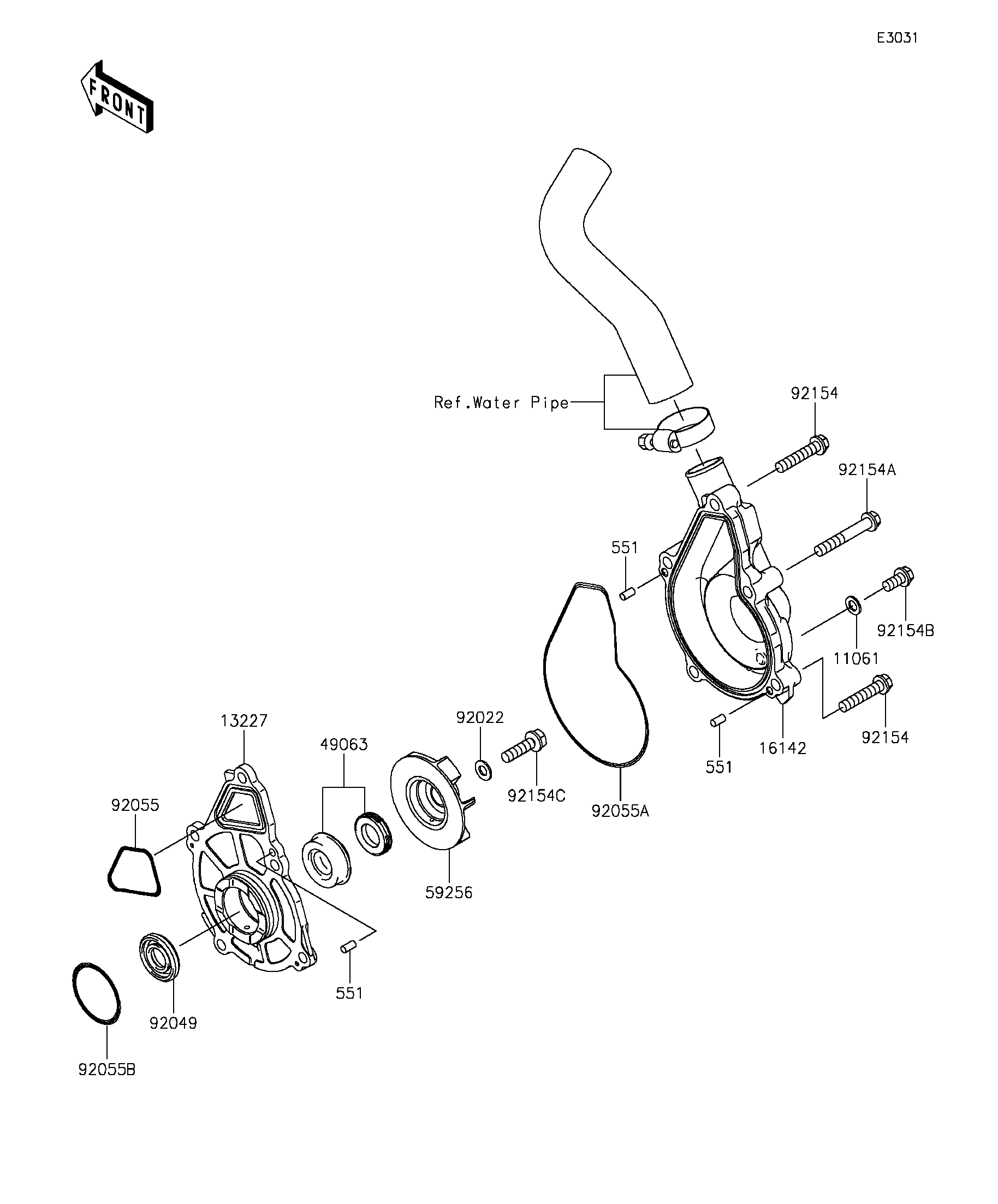

Parts Diagrams |
11061
13227
16142
49063
59256
92022
92049
92055
92055A
92055B
92154
92154
92154A
92154B
92154C
551
551
551
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11061 | 11061-0107 | 1 | ||
| HOUSING | 13227 | 13227-0023 | 1 | ||
| COVER-PUMP | 16142 | 16142-0058 | 1 | ||
| SEAL-MECHANICAL,WATER | 49063 | 49063-1055 | 1 | ||
| IMPELLER | 59256 | 59256-0009 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| SEAL-OIL,12X28.55X5 | 92049 | 92049-0115 | 1 | ||
| RING-O,CASE-HOUSING | 92055 | 92055-0082 | 1 | ||
| RING-O,HOUSING-PUMP COVER | 92055A | 92055-0083 | 1 | ||
| RING-O,33.2MM | 92055B | 92055-1155 | 1 | ||
| BOLT,FLANGED,6X30 | 92154 | 92154-0778 | 2 | ||
| BOLT,FLANGED,6X40 | 92154A | 92154-0782 | 3 | ||
| BOLT,FLANGED,6X12 | 92154B | 92154-0810 | 1 | ||
| BOLT,FLANGED,6X22 | 92154C | 92154-1069 | 1 | ||
| PIN-DOWEL,4X8 | 551 | 551A0408 | 3 |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING | |
| REF # | 13227 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-MECHANICAL,WATER | |
| REF # | 49063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IMPELLER | |
| REF # | 59256 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X12X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,12X28.55X5 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,CASE-HOUSING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,HOUSING-PUMP COVER | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,33.2MM | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X30 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X40 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X22 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,4X8 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
