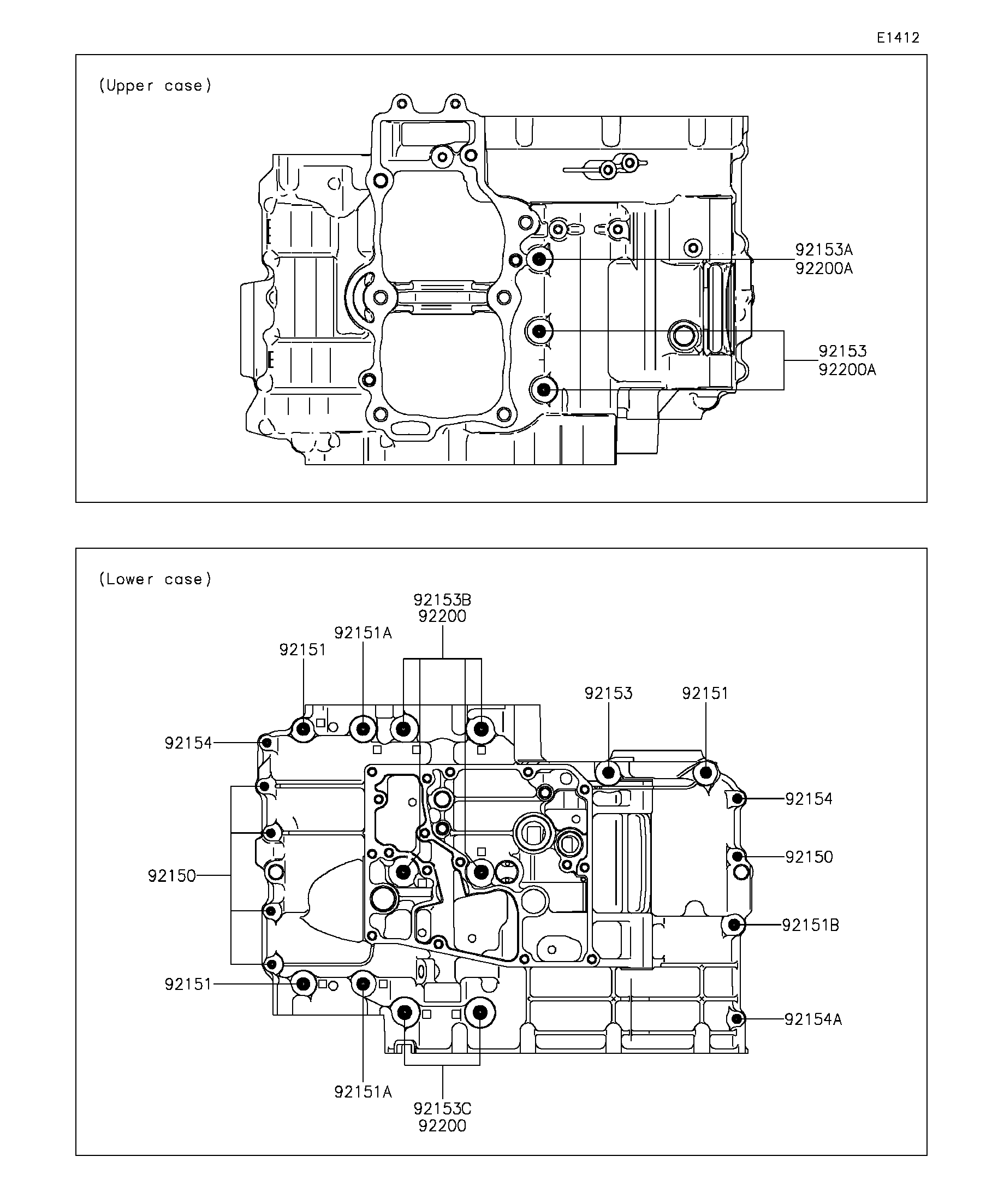

2013 NINJA® 650 ABS - Crankcase Bolt Pattern

DOWNLOAD PDF
SELECT A NEW PART
92150
92150
92151
92151
92151
92151A
92151A
92151B
92153
92153
92153A
92153B
92153C
92154
92154
92154A
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,6X38 92150 92150-1301 5
BOLT,8X60 92151 92151-1461 3
BOLT,8X73 92151A 92151-1462 2
BOLT,8X50 92151B 92151-1463 1
BOLT,FLANGED,8X110 92153 92153-0959 3
BOLT,FLANGED,8X120 92153A 92153-0960 1
BOLT,FLANGED,9X113 92153B 92153-1449 4
BOLT,FLANGED,9X83 92153C 92153-1450 2
BOLT,FLANGED,6X45 92154 92154-0966 2
BOLT,FLANGED,6X32 92154A 92154-0967 1
WASHER,9.2X19X2.3 92200 92200-0115 6
WASHER,8.5X16X1.2 92200A 92200-1063 3
