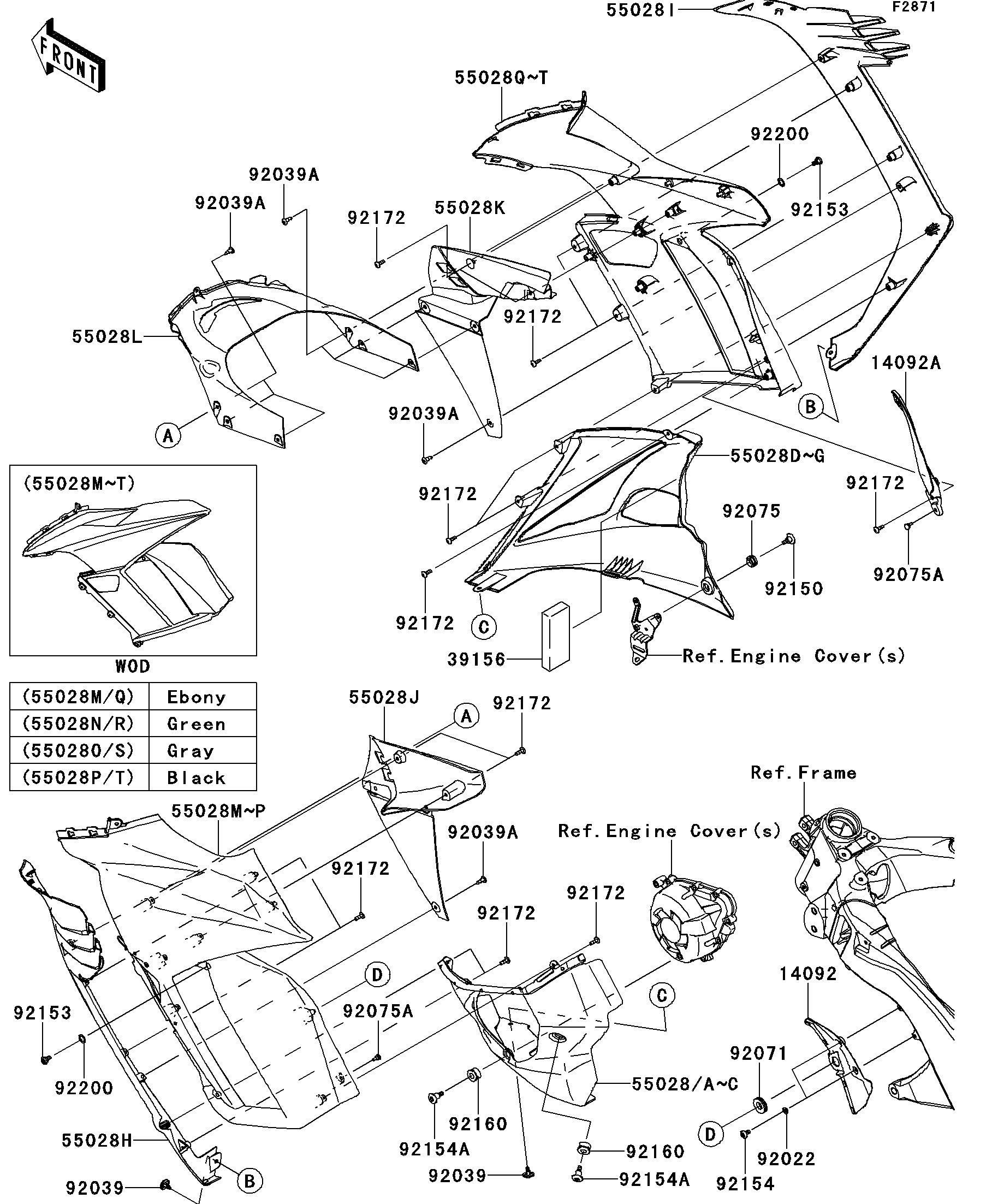

2012 NINJA® 1000 ABS - Cowling(Center)

DOWNLOAD PDF
SELECT A NEW PART
14092
14092A
39156
55028
55028C
55028D
55028G
55028H
55028I
55028J
55028K
55028L
55028M
55028O
55028Q
55028S
92022
92039
92039
92039A
92039A
92039A
92039A
92071
92075
92075A
92075A
92150
92153
92153
92154
92154A
92154A
92160
92160
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LH 14092 14092-0250 1
COVER,RH 14092A 14092-0251 1
PAD,20X120X50 39156 39156-0708 1
COWLING,LWR,LH,C.L.GREEN 55028 55028-0346-17P 1
COWLING,LWR,LH,M.S.BLACK 55028C 55028-0346-660 1
COWLING,LWR,RH,C.L.GREEN 55028D 55028-0347-17P 1
COWLING,LWR,RH,M.S.BLACK 55028G 55028-0347-660 1
COWLING,SLAT,LH,F.BLACK 55028H 55028-0348-6Z 1
COWLING,SLAT,RH,F.BLACK 55028I 55028-0349-6Z 1
COWLING,INNER,LH 55028J 55028-0350 1
COWLING,INNER,RH 55028K 55028-0351 1
COWLING,FR 55028L 55028-0352 1
COWLING,SIDE,LH,EBONY 55028M 55028-0386-H8 1
COWLING,SIDE,LH,M.F.M.GRAY 55028O 55028-0386-40K 1
COWLING,SIDE,RH,EBONY 55028Q 55028-0387-H8 1
COWLING,SIDE,RH,M.F.M.GRAY 55028S 55028-0387-40K 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
RIVET,HOLE 8MM 92039 92039-0014 2
RIVET 92039A 92039-0068 8
GROMMET 92071 92071-1043 1
DAMPER 92075 92075-1634 1
DAMPER 92075A 92075-1808 2
BOLT,SOCKET,6MM 92150 92150-1154 1
BOLT,SOCKET,6MM 92153 92153-1956 2
BOLT,SOCKET,5X16 92154 92154-0026 2
BOLT,6X24 92154A 92154-0348 2
DAMPER 92160 92160-1141 2
SCREW,TAPPING,5X16 92172 92172-0238 15
WASHER,10.4X15.9X0.5 92200 92200-0157 2
