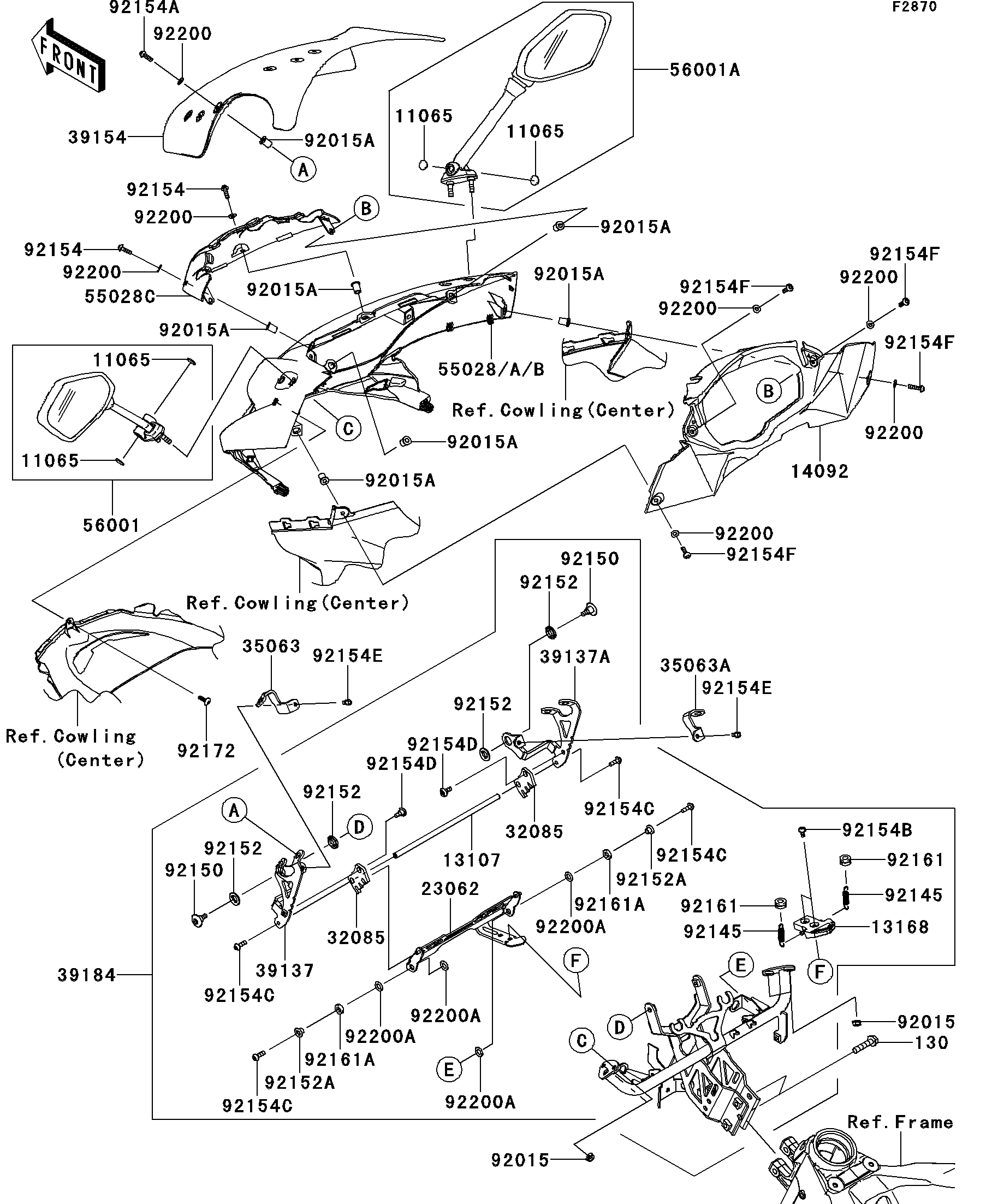

2012 NINJA® 1000 ABS - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
13107
13168
14092
23062
32085
32085
35063
35063A
39137
39137A
39154
39184
55028
55028B
55028C
56001
56001A
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92145
92145
92150
92150
92152
92152
92152
92152
92152A
92152A
92154
92154
92154A
92154B
92154C
92154C
92154C
92154C
92154D
92154D
92154E
92154E
92154F
92154F
92154F
92154F
92161
92161
92161A
92161A
92172
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0787 4
SHAFT 13107 13107-0241 1
LEVER,ADJUST 13168 13168-0211 1
COVER,METER,F.BLACK 14092 14092-0792-6Z 1
BRACKET-COMP 23062 23062-0136 1
STOPPER 32085 32085-0201 2
STAY,LH 35063 35063-0738 1
STAY,RH 35063A 35063-0739 1
STAY-COMP,LH 39137 39137-0064 1
STAY-COMP,RH 39137A 39137-0065 1
WINDSHIELD 39154 39154-0052 1
BRACKET-ASSY,WINDSHIELD 39184 39184-0703 1
COWLING,UPP,C.L.GREEN 55028 55028-0343-17P 1
COWLING,UPP,M.S.BLACK 55028B 55028-0343-660 1
COWLING,CNT,F.BLACK 55028C 55028-0353-6Z 1
MIRROR-ASSY,LH 56001 56001-0231 1
MIRROR-ASSY,RH 56001A 56001-0232 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 4
NUT,WELL,5MM 92015A 92015-1757 12
SPRING 92145 92145-0805 2
BOLT,SOCKET,6MM 92150 92150-1154 2
COLLAR,10X20X3.75 92152 92152-0913 4
COLLAR,5.6X8X7.8 92152A 92152-1506 2
BOLT,SOCKET,5X16 92154 92154-0026 2
BOLT,SOCKET,5X16 92154A 92154-0209 6
BOLT,SOCKET,5X10 92154B 92154-0211 2
BOLT,SOCKET,5X16 92154C 92154-0287 4
BOLT,SOCKET,5X14 92154D 92154-0427 2
BOLT,SOCKET,5X12 92154E 92154-0503 2
BOLT,SOCKET,5X20 92154F 92154-0829 4
DAMPER 92161 92161-0056 2
DAMPER,8.2X15X3 92161A 92161-0998 2
SCREW,TAPPING,5X16 92172 92172-0238 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 12
WASHER,8.2X15X1 92200A 92200-0742 4
BOLT-FLANGED,8X35 130 130CB0835 2
