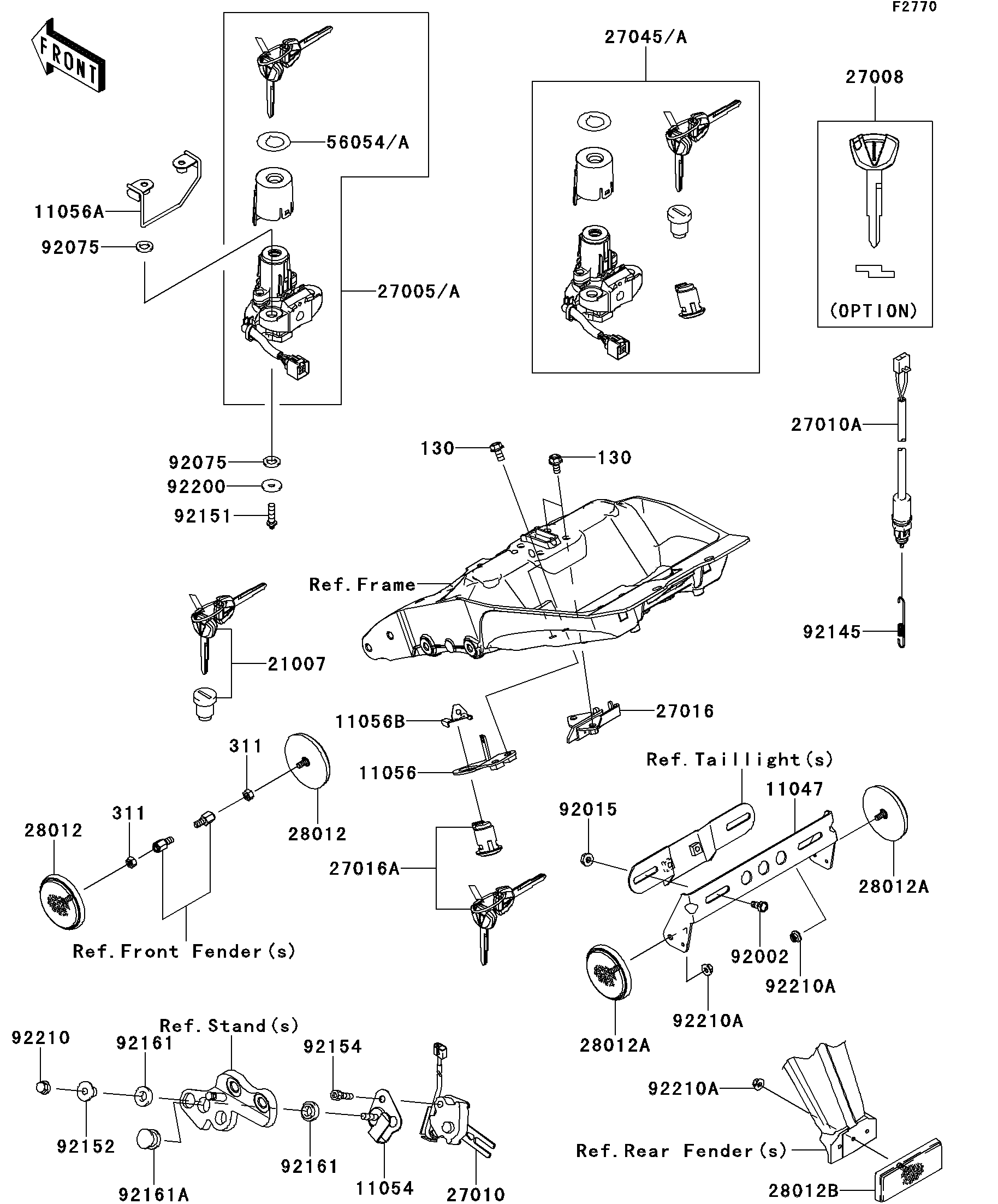

2012 NINJA® 1000 ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11047
11054
11056
11056A
11056B
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012A
28012B
56054
92002
92015
92075
92075
92145
92151
92152
92154
92161
92161
92161A
92200
92210
92210A
92210A
92210A
130
130
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11047 11047-1470 1
BRACKET,SIDE STAND SWITCH 11054 11054-1904 1
BRACKET,KEY CYLINDER 11056 11056-0264 1
BRACKET 11056A 11056-1074 1
BRACKET 11056B 11056-1084 1
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SWITCH-ASSY-IGNITION 27005 27005-0062 1
KEY-LOCK,BLANK 27008 27008-0069 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0112 1
SWITCH,REAR BRAKE 27010A 27010-1486 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5368 1
SWITCH-ASSY 27045 27045-5434 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
MARK,IGNITION SWITCH 56054 56054-0642 1
BOLT,6X12 92002 92002-1132 2
NUT,FLANGED,6MM 92015 92015-1367 2
DAMPER 92075 92075-1564 4
SPRING,BRAKE LAMP SWITCH 92145 92145-0761 1
BOLT,TORX,6X22 92151 92151-1946 2
COLLAR 92152 92152-1074 1
BOLT,SOCKET,6X22 92154 92154-0031 1
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
WASHER,6X20X1.6 92200 92200-0212 2
NUT,CAP,6MM 92210 92210-0003 1
NUT,FLANGED,5MM 92210A 92210-0007 3
BOLT-FLANGED,6X12 130 130BA0612 4
NUT-HEX 311 311AB0500 2
