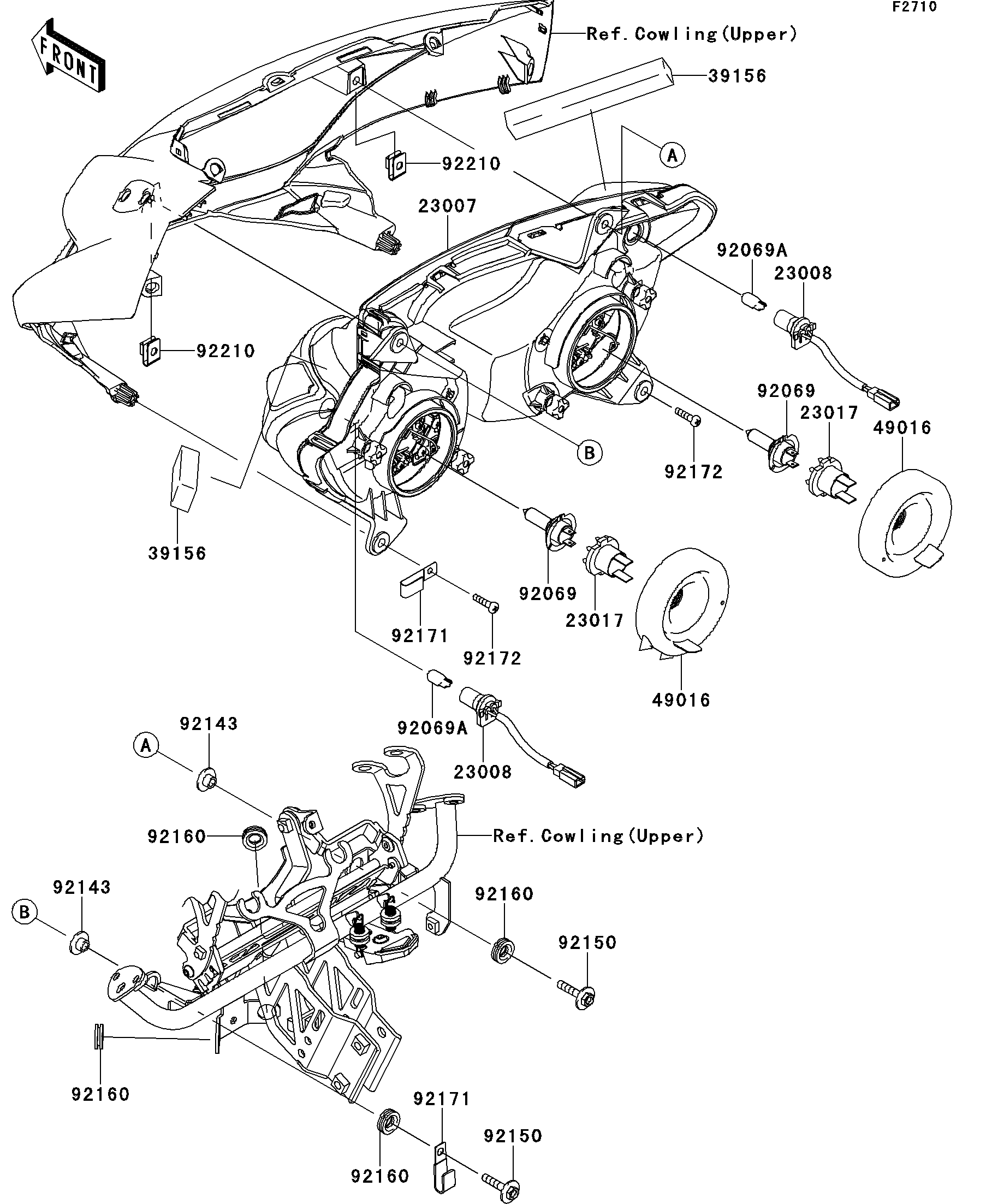

2012 NINJA® 1000 ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23007
23008
23008
23017
23017
39156
39156
49016
49016
92069
92069
92069A
92069A
92143
92143
92150
92150
92160
92160
92160
92160
92171
92171
92172
92172
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-0144 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0109 2
SOCKET,HEAD LAMP 23017 23017-1067 2
PAD,20X140X15 39156 39156-0736 2
COVER-SEAL,HEAD LAMP 49016 49016-0062 2
BULB,12V 55W,H7 92069 92069-0053 2
BULB,12V 5W 92069A 92069-1016 2
COLLAR,L=7.4 92143 92143-1019 2
BOLT,6X30 92150 92150-1694 2
DAMPER 92160 92160-1278 4
CLAMP 92171 92171-0305 2
SCREW 92172 92172-1072 2
NUT 92210 92210-0130 2
