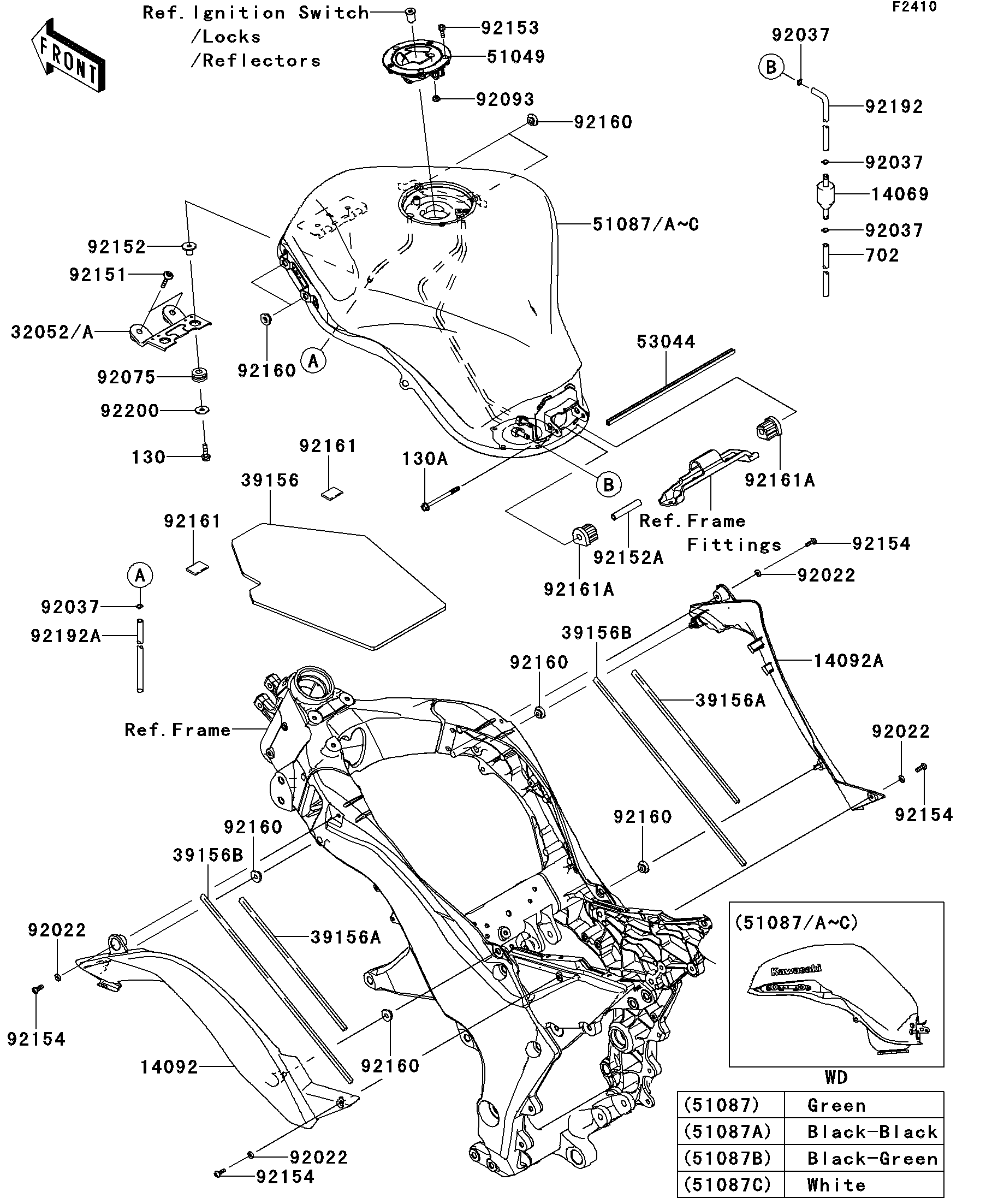

2012 NINJA® 1000 ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14069
14092
14092A
32052
32052A
39156
39156A
39156A
39156B
39156B
51049
51087
51087A
53044
92022
92022
92022
92022
92037
92037
92037
92037
92075
92093
92151
92152
92152A
92153
92154
92154
92154
92154
92160
92160
92160
92160
92160
92160
92161
92161
92161A
92161A
92192
92192A
92200
130
130A
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BREATHER,TANK 14069 14069-0008 1
COVER,KNEE GRIP,LH,F.BLACK 14092 14092-0161-6Z 1
COVER,KNEE GRIP,RH,F.BLACK 14092A 14092-0162-6Z 1
BRACKET-TANK,F.S.BLACK 32052 32052-0146-18R 1
BRACKET-TANK,F.M.GRAY 32052A 32052-0146-26M 1
PAD,FUEL TANK 39156 39156-0658 1
PAD,8X280X5 39156A 39156-0703 2
PAD,8X400X5 39156B 39156-0704 2
CAP-TANK,FUEL 51049 51049-0039 1
TANK-COMP-FUEL,C.L.GREEN 51087 51087-5207-17P 1
TANK-COMP-FUEL,M.S.BLACK 51087A 51087-5208-660 1
TRIM 53044 53044-1296 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
CLAMP,TUBE 92037 92037-010 4
DAMPER 92075 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 2
COLLAR 92152 92152-0091 2
COLLAR,6.8X10X60 92152A 92152-1182 1
BOLT,SOCKET,5X16 92153 92153-1616 3
BOLT,SOCKET,5X16 92154 92154-0026 4
DAMPER 92160 92160-1613 8
DAMPER,20X30X3 92161 92161-0958 2
DAMPER,FUEL TANK,RR 92161A 92161-1330 2
TUBE,BREATHER 92192 92192-0798 1
TUBE,6X9X926(30) 92192A 92192-1024 1
WASHER,6.5X22X1.6 92200 92200-1087 2
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED,6X70 130A 130BB0670 1
TUBE-RUBBER,6X9X300 702 702A06300 1
