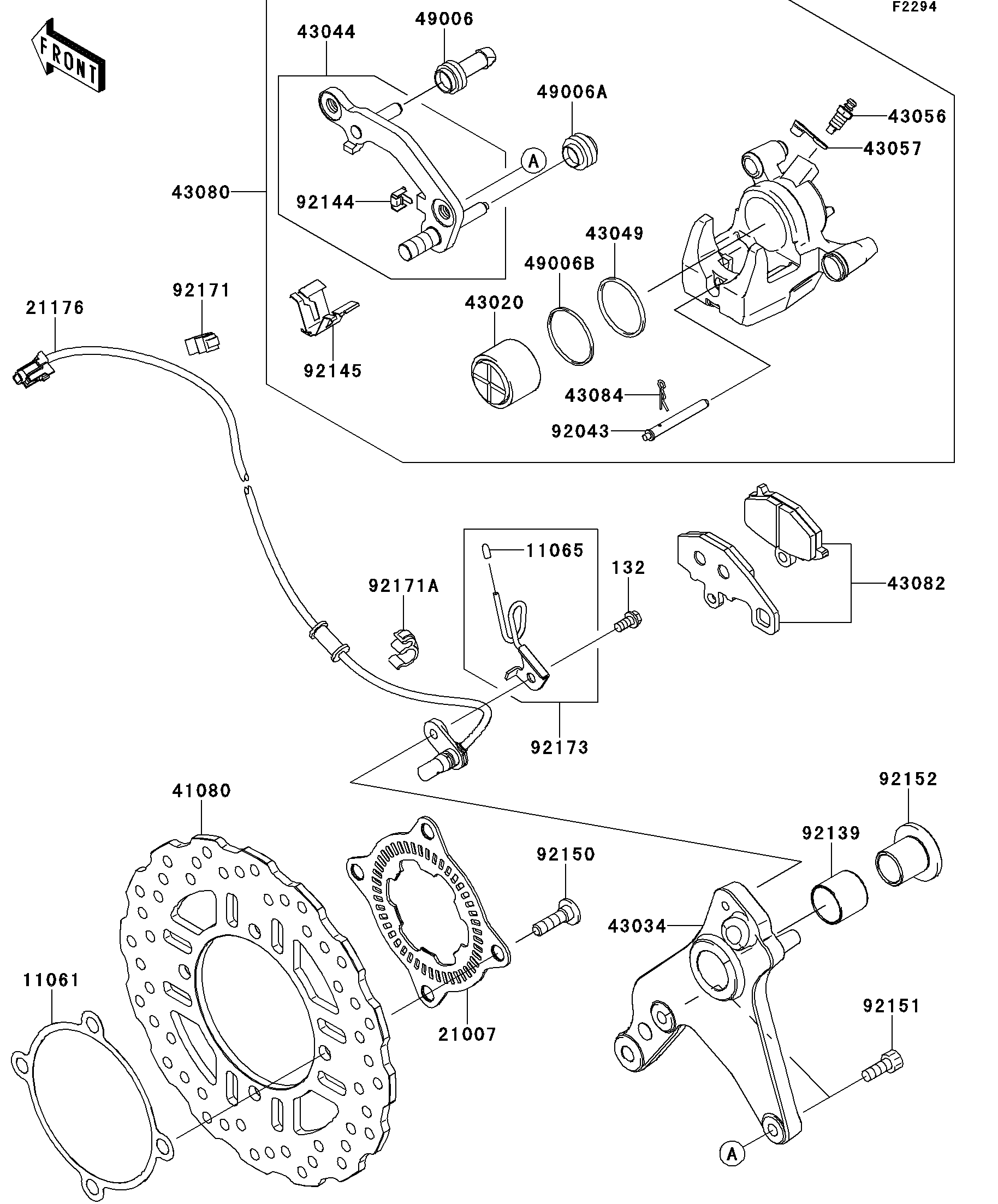

2012 NINJA® 1000 ABS - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
11065
21007
21176
41080
43020
43034
43044
43049
43056
43057
43080
43082
43084
49006
49006A
49006B
92043
92139
92144
92145
92150
92151
92152
92171
92171A
92173
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11061 11061-0204 1
CAP 11065 11065-0374 1
ROTOR,SENSOR,RR 21007 21007-0141 1
SENSOR,WHEEL SPEED,RR 21176 21176-0134 1
DISC,RR 41080 41080-0089 1
PISTON-COMP-BRAKE 43020 43020-1119 1
HOLDER-BRAKE,RR 43034 43034-0059 1
HOLDER-COMP-CALIPER,RR 43044 43044-0033 1
PACKING,PISTON SEAL 43049 43049-1097 1
BREATHER-BRAKE 43056 43056-0007 1
CAP-BREATHER 43057 43057-003 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0103-DJ 1
PAD-ASSY-BRAKE 43082 43082-0119 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
BOOT,PISTON SEAL 49006B 49006-1212 1
PIN,PAD 92043 92043-1489 1
BUSHING,25X28X25 92139 92139-0278 1
SPRING,STOPPER 92144 92144-1831 1
SPRING 92145 92145-0760 1
BOLT,SOCKET,8X30 92150 92150-1771 4
BOLT,SOCKET,8X20 92151 92151-1289 2
COLLAR,20X25X30 92152 92152-0807 1
CLAMP 92171 92171-0921 1
CLAMP,BRAKE HOSE 92171A 92171-1819 1
CLAMP 92173 92173-0276 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
