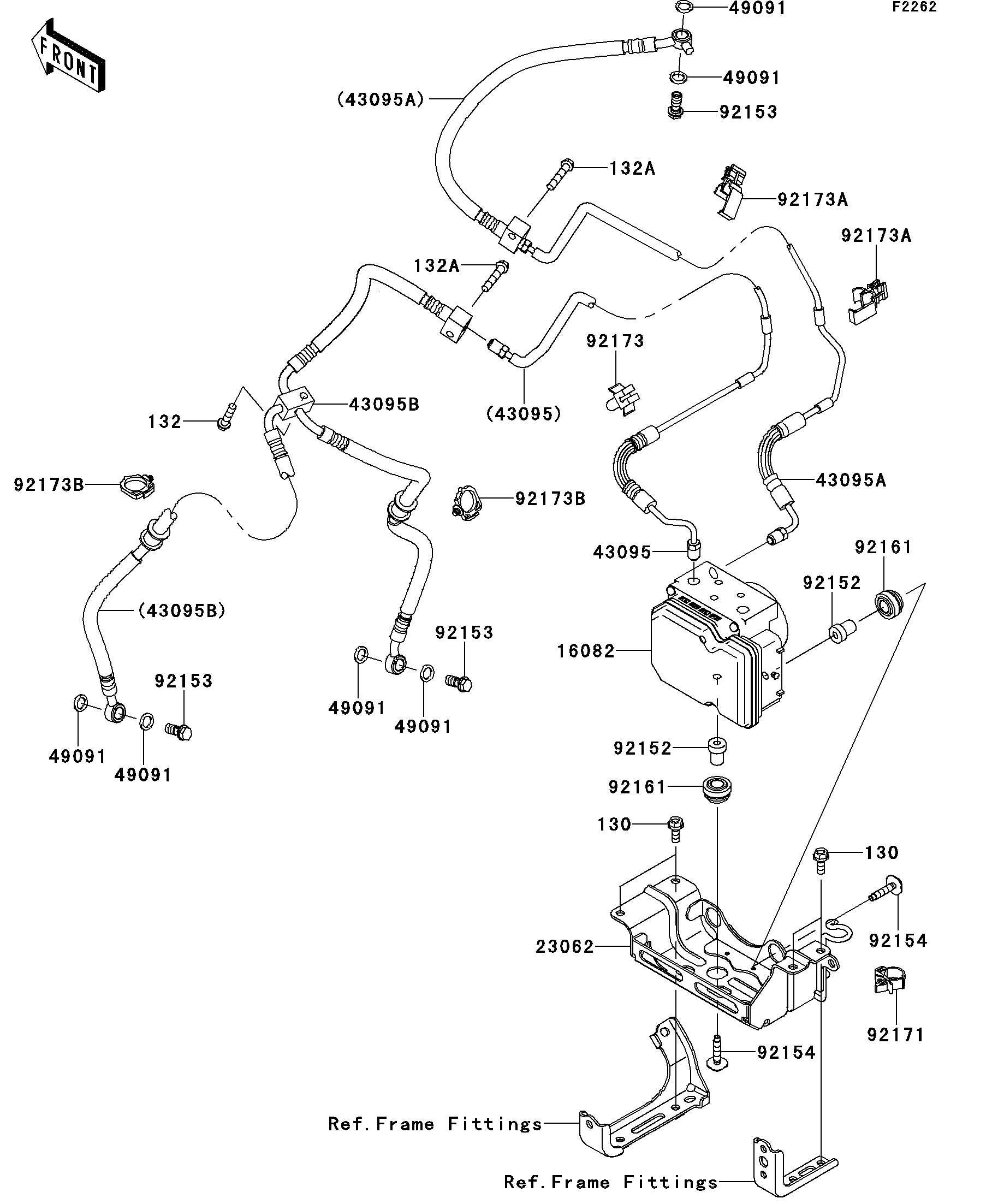

2012 NINJA® 1000 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
16082
23062
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
92152
92152
92153
92153
92153
92154
92154
92161
92161
92171
92173
92173A
92173A
92173B
92173B
130
130
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-ASSY-OIL,ABS,WET 16082 16082-0060 1
BRACKET-COMP,ABS 23062 23062-0719 1
HOSE-BRAKE,HU-FR CALIPER 43095 43095-0505 1
HOSE-BRAKE,FR M/C-HU 43095A 43095-0661 1
HOSE-BRAKE,FR 43095B 43095-0671 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
COLLAR,6.1X11X20.7 92152 92152-0829 3
BOLT,OIL,L=23 92153 92153-0627 3
BOLT,WP,6X31 92154 92154-0291 3
DAMPER 92161 92161-0827 3
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP 92173 92173-0088 1
CLAMP,CLIP 92173A 92173-0799 2
CLAMP 92173B 92173-0868 2
BOLT-FLANGED,6X16 130 130BA0616 4
BOLT-FLANGED-SMALL,6X25 132 132BB0625 1
BOLT-FLANGED-SMALL,6X30 132A 132BB0630 2
