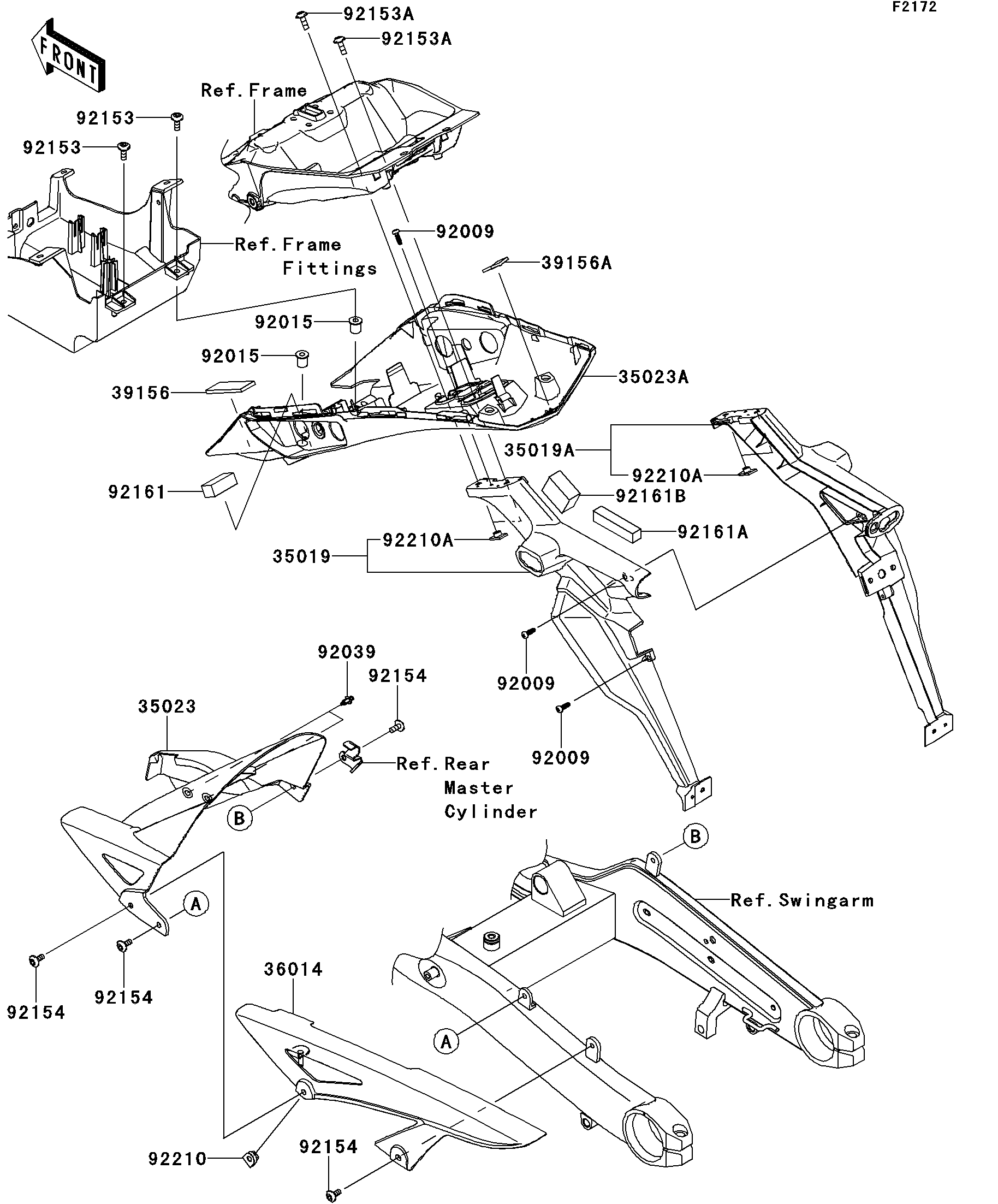

2012 NINJA® 1000 ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
35019
35019A
35023
35023A
36014
39156
39156A
92009
92009
92009
92015
92015
92039
92153
92153
92153A
92153A
92154
92154
92154
92154
92161
92161A
92161B
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLAP,LH 35019 35019-0558 1
FLAP,RH 35019A 35019-0559 1
FENDER-REAR,INNER 35023 35023-0170 1
FENDER-REAR 35023A 35023-0329 1
CASE-CHAIN 36014 36014-0029 1
PAD,25X70X4 39156 39156-0748 1
PAD,20X30X3 39156A 39156-0749 1
SCREW,TAPPING,5X16 92009 92009-1984 4
NUT 92015 92015-1700 2
RIVET 92039 92039-0060 2
BOLT,6X18 92153 92153-0816 2
BOLT,SOCKET,6X18 92153A 92153-1675 4
BOLT,SOCKET,6X14 92154 92154-0745 4
DAMPER,SEAT 92161 92161-0889 1
DAMPER,70X15X15 92161A 92161-0891 2
DAMPER 92161B 92161-3752 2
NUT,6MM 92210 92210-0277 1
NUT,PLATE,6MM 92210A 92210-1352 4
