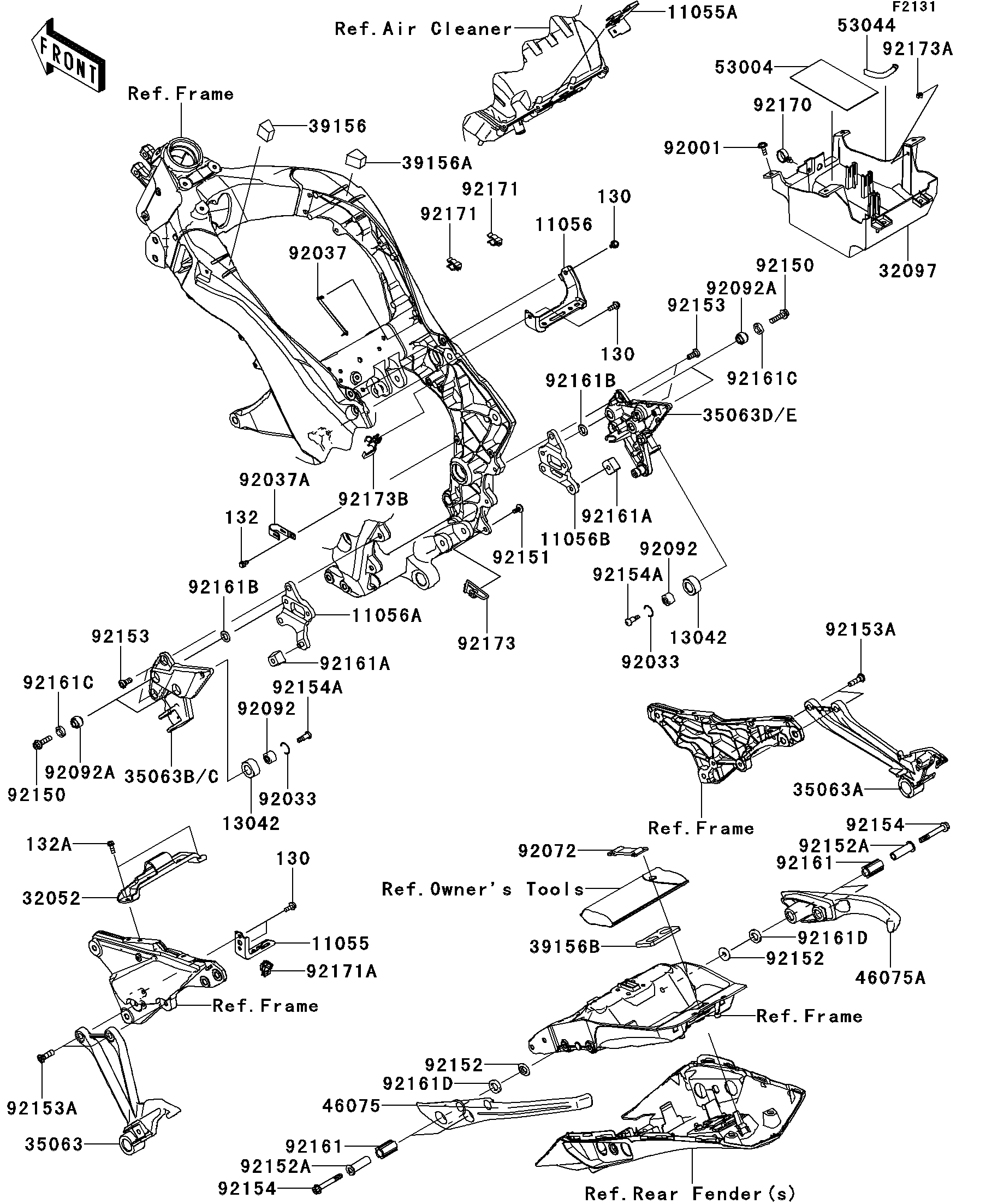

2012 NINJA® 1000 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
11056
11056
11056A
11056A
11056B
11056B
13042
13042
13042
13042
32052
32052
32097
32097
35063
35063
35063A
35063A
35063C
35063C
35063E
35063E
39156
39156
39156A
39156A
39156B
39156B
46075
46075
46075A
46075A
53004
53004
53044
53044
92001
92001
92033
92033
92033
92033
92037
92037
92037A
92037A
92072
92072
92092
92092
92092
92092
92092A
92092A
92092A
92092A
92150
92150
92150
92150
92151
92151
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92161D
92161D
92170
92170
92171
92171
92171
92171
92171A
92171A
92173
92173
92173A
92173A
92173B
92173B
130
130
130
130
130
130
132
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR 11055 11055-1951 1
BRACKET 11055A 11055-1989 1
BRACKET,REGULATOR 11056 11056-0169 1
BRACKET,FR,LH 11056A 11056-0358 1
BRACKET,FR,RH 11056B 11056-0359 1
WEIGHT 13042 13042-0709 2
BRACKET-TANK 32052 32052-0155 1
CASE-BATTERY 32097 32097-0555 1
STAY,RR,LH,F.S.BLACK 35063 35063-0659-18R 1
STAY,RR,RH,F.S.BLACK 35063A 35063-0660-18R 1
STAY,FR,LH,F.M.GRAY 35063C 35063-0726-26M 1
STAY,FR,RH,F.M.GRAY 35063E 35063-0828-26M 1
PAD,LH 39156 39156-0660 1
PAD,RH 39156A 39156-0661 1
PAD,TOOL BOTTOM 39156B 39156-0752 1
GRIP,TANDEM,LH 46075 46075-0097 1
GRIP,TANDEM,RH 46075A 46075-0098 1
MAT,BATTERY 53004 53004-0560 1
TRIM 53044 53044-0018 1
BOLT,6X18 92001 92001-1342 4
RING-SNAP,OD=22.2 92033 92033-1102-SP 2
CLAMP,SPEED,L=80.5 92037 92037-1903 1
CLAMP 92037A 92037-2014 1
BAND,L=90 92072 92072-045 1
BUSHING-RUBBER 92092 92092-0554 2
BUSHING-RUBBER,8.4X20X18 92092A 92092-1018-SP 4
BOLT,SOCKET,8X30 92150 92150-1156 4
BOLT,SOCKET,6X14 92151 92151-1654 1
COLLAR,8X25X4.6 92152 92152-0980 4
COLLAR,9.2X13.8X38.5 92152A 92152-1629 4
BOLT,SOCKET,8X20 92153 92153-1621 4
BOLT,SOCKET,8X30 92153A 92153-1624 4
BOLT,SOCKET,8X60 92154 92154-0259 4
BOLT,SOCKET,6MM 92154A 92154-0800 2
DAMPER 92161 92161-0663 4
DAMPER,STEP STAY 92161A 92161-0942 2
DAMPER,12.5X21X2 92161B 92161-0943 4
DAMPER,12.5X20X4 92161C 92161-0944 4
DAMPER,14.5X25X3.5 92161D 92161-0959 4
CLAMP 92170 92170-1067 1
CLAMP 92171 92171-0974 2
CLAMP 92171A 92171-1722 1
CLAMP 92173 92173-0151 1
CLAMP 92173A 92173-0215 1
CLAMP,CLIP 92173B 92173-0799 1
BOLT-FLANGED,6X16 130 130BA0616 4
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 2
