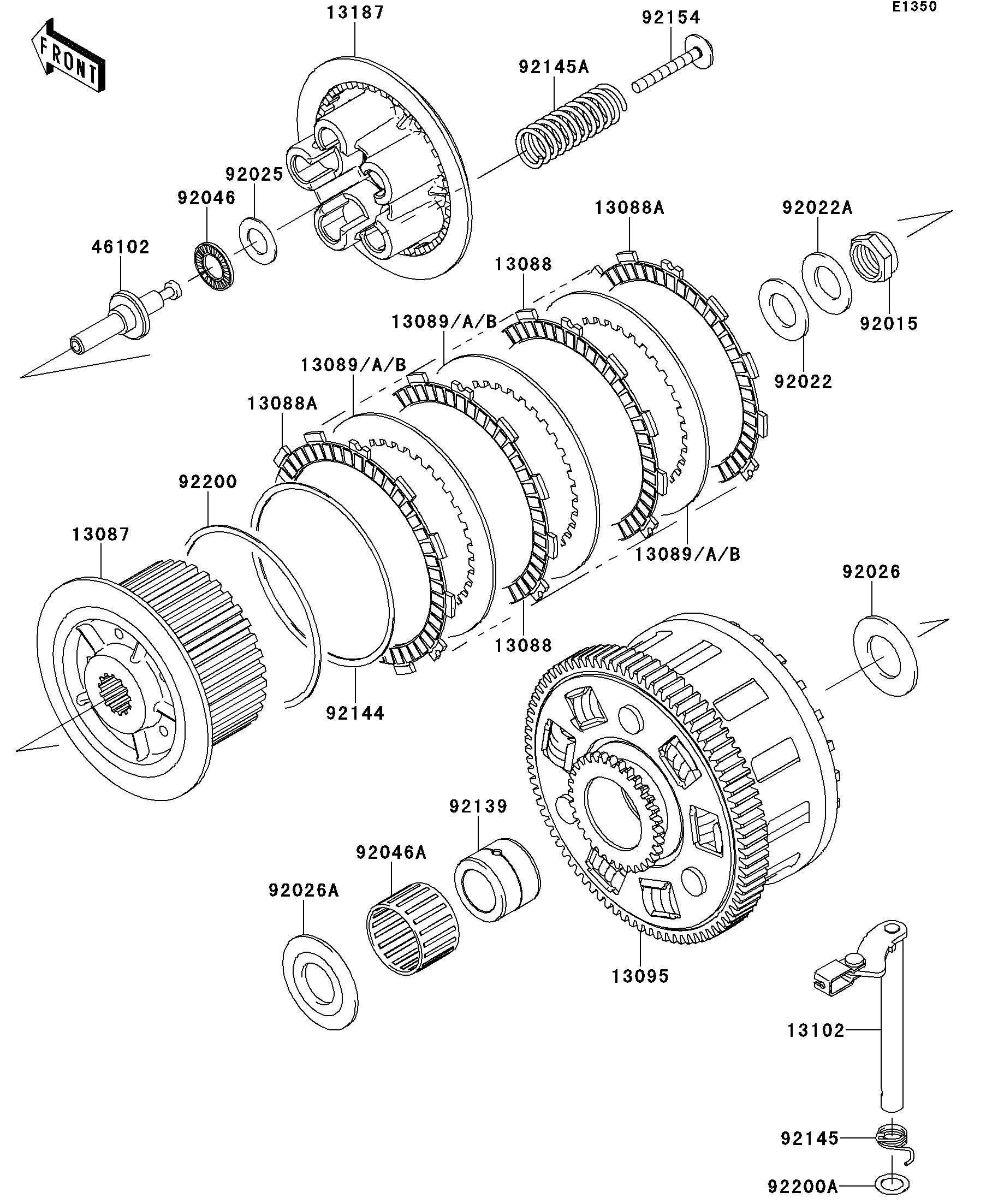

2012 NINJA® 1000 ABS - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13088A
13088A
13089
13089
13089
13089A
13089A
13089A
13089B
13089B
13089B
13095
13102
13187
46102
92015
92022
92022A
92025
92026
92026A
92046
92046A
92139
92144
92145
92145A
92154
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0051 1
PLATE-FRICTION 13088 13088-0049 8
PLATE-FRICTION 13088A 13088-0052 2
PLATE-CLUTCH,T=2.3 13089 13089-0008 AR
PLATE-CLUTCH,T=2.6 13089A 13089-0009 9
PLATE-CLUTCH,T=2.9 13089B 13089-1093 AR
HOUSING-COMP-CLUTCH 13095 13095-0118 1
RELEASE-COMP-CLUTCH 13102 13102-0038 1
PLATE-CLUTCH OPERATING 13187 13187-0019 1
ROD 46102 46102-0083 1
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
WASHER,20.3X36X3.7 92022A 92022-1868 1
SHIM,15.3X27.5X1.20 92025 92025-1137 1
SPACER,25.5X47X2.5 92026 92026-022 1
SPACER 92026A 92026-1497 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
BEARING-NEEDLE,K38X43X28.8X 92046A 92046-1263 1
BUSHING,25X38X29.05 92139 92139-0067 1
SPRING,FRICTION PLATE 92144 92144-1854 1
SPRING,RELEASE-COMP 92145 92145-0325 1
SPRING 92145A 92145-0736 5
BOLT,CLUTCH OPERATING 92154 92154-0352 5
WASHER,FRICTION PLATE 92200 92200-1260 1
WASHER,12X18.5X0.5 92200A 92200-1487 1
