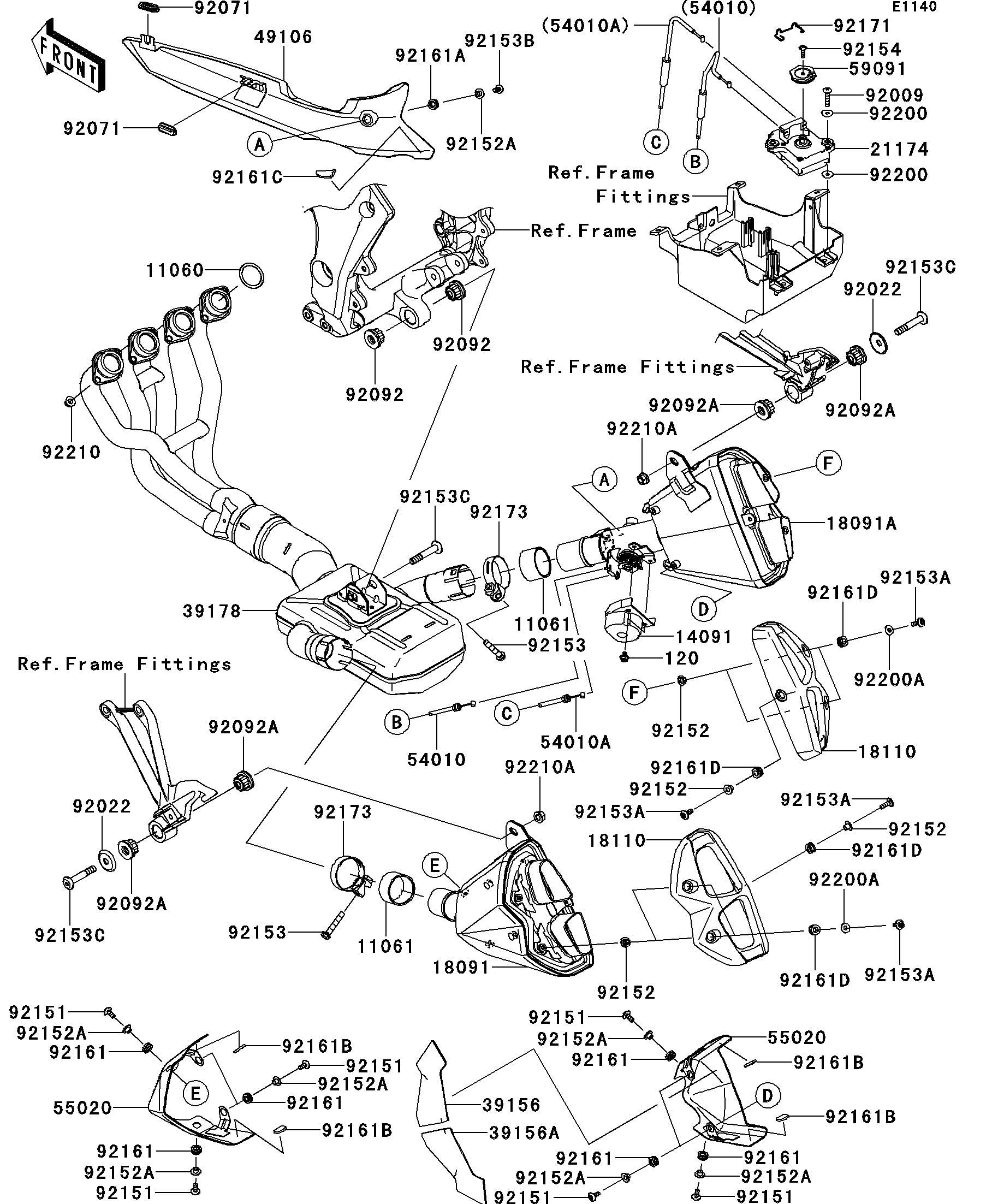

Parts Diagrams |
11060
11061
11061
14091
18091
18091A
18110
18110
21174
39156
39156A
39178
49106
54010
54010A
55020
55020
59091
92009
92022
92022
92071
92071
92092
92092
92092A
92092A
92092A
92092A
92151
92151
92151
92151
92151
92151
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92153
92153
92153A
92153A
92153A
92153A
92153B
92153C
92153C
92153C
92154
92161
92161
92161
92161
92161
92161
92161A
92161B
92161B
92161B
92161B
92161C
92161D
92161D
92161D
92161D
92171
92173
92173
92200
92200
92200A
92200A
92210
92210A
92210A
120
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE HOLDER | 11060 | 11060-1103 | 4 | ||
| GASKET,MUFFLER CONNECTING | 11061 | 11061-0726 | 2 | ||
| COVER,PULLEY | 14091 | 14091-0712 | 1 | ||
| BODY-COMP-MUFFLER,LH | 18091 | 18091-0858 | 1 | ||
| BODY-COMP-MUFFLER,RH | 18091A | 18091-0859 | 1 | ||
| BODY END-MUFFLER | 18110 | 18110-0114 | 2 | ||
| MOTOR-ELECTRIC | 21174 | 21174-0005 | 1 | ||
| PAD | 39156 | 39156-0728 | 1 | ||
| PAD | 39156A | 39156-0729 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0166 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-0710 | 1 | ||
| CABLE,OPEN,WHITE | 54010 | 54010-0119 | 1 | ||
| CABLE,CLOSE,BLACK | 54010A | 54010-0120 | 1 | ||
| GUARD,FRONT COVER | 55020 | 55020-0568 | 2 | ||
| PULLEY | 59091 | 59091-0007 | 1 | ||
| SCREW,TAPPING,6X30 | 92009 | 92009-1481 | 2 | ||
| WASHER | 92022 | 92022-289 | 2 | ||
| GROMMET | 92071 | 92071-1187 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-1081 | 2 | ||
| BUSHING-RUBBER,MUFFLER | 92092A | 92092-1087 | 4 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 8 | ||
| COLLAR | 92152 | 92152-0237 | 6 | ||
| COLLAR | 92152A | 92152-0286 | 9 | ||
| BOLT,8X45 | 92153 | 92153-0702 | 2 | ||
| BOLT,6X18 | 92153A | 92153-0816 | 6 | ||
| BOLT,SOCKET,6X16 | 92153B | 92153-0817 | 1 | ||
| BOLT,SOCKET,10X58 | 92153C | 92153-1930 | 3 | ||
| BOLT,TORX,5X18 | 92154 | 92154-0217 | 1 | ||
| DAMPER | 92161 | 92161-0306 | 8 | ||
| DAMPER | 92161A | 92161-0308 | 1 | ||
| DAMPER | 92161B | 92161-0856 | 4 | ||
| DAMPER,SIDE COVER | 92161C | 92161-0870 | 1 | ||
| DAMPER | 92161D | 92161-0938 | 6 | ||
| CLAMP | 92171 | 92171-0292 | 1 | ||
| CLAMP | 92173 | 92173-0037 | 2 | ||
| WASHER | 92200 | 92200-0078 | 4 | ||
| WASHER,6.5X16X1.0 | 92200A | 92200-3712 | 4 | ||
| NUT,8MM | 92210 | 92210-0076 | 8 | ||
| NUT | 92210A | 92210-0568 | 2 | ||
| BOLT-SOCKET,6X10 | 120 | 120CB0610 | 2 |
