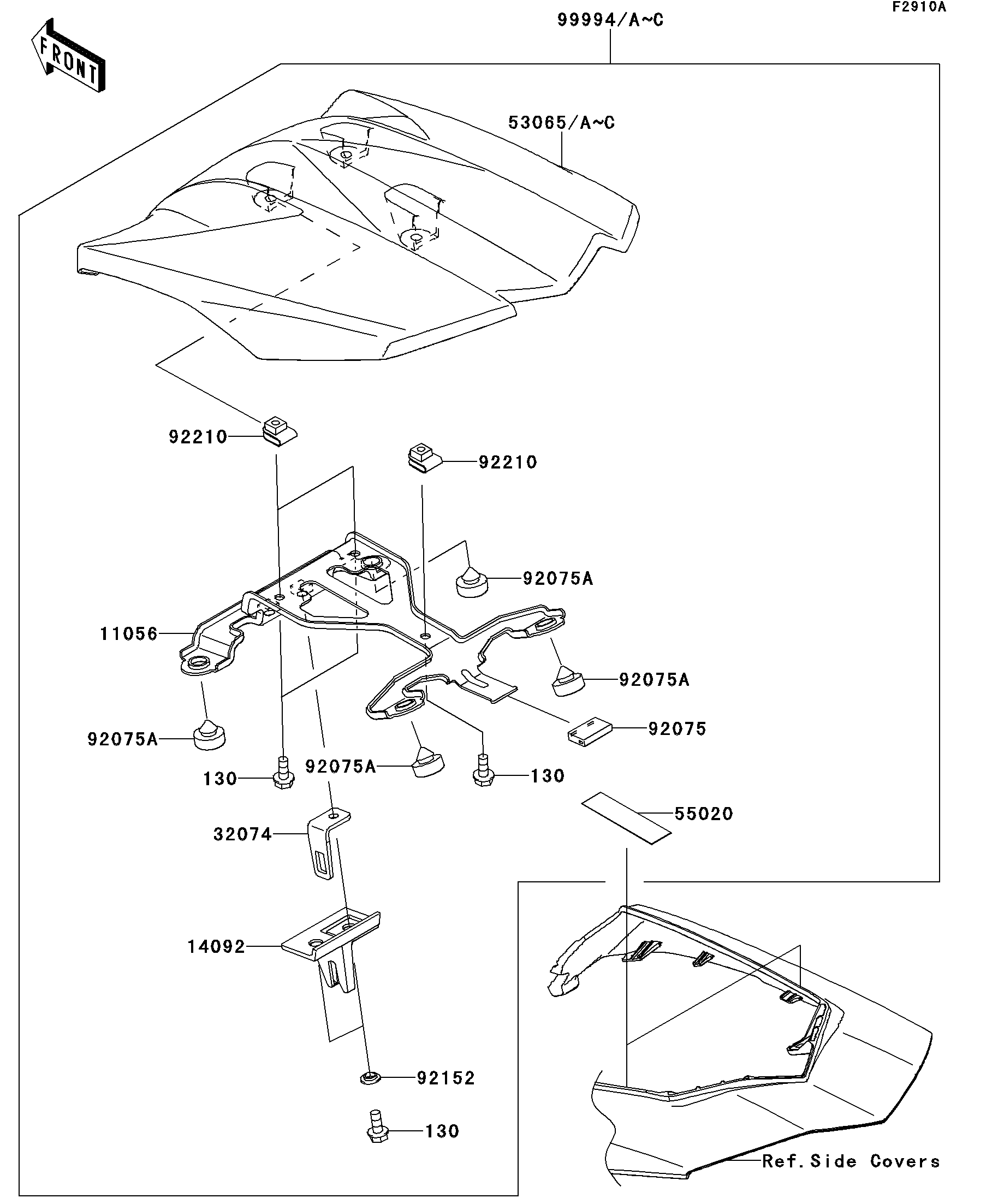

2013 NINJA® 1000 - Accessory(Single Seat Cover)
11056
14092
32074
53065B
53065C
55020
92075
92075A
92075A
92075A
92075A
92152
92210
92210
99994B
99994C
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-0544 | 1 | ||
| COVER | 14092 | 14092-0248 | 1 | ||
| BRACKET-LOCK | 32074 | 32074-0017 | 1 | ||
| COVER SEAT,P.S.WHITE | 53065B | 53065-0019-25Y | 1 | ||
| COVER SEAT,M.S.BLACK | 53065C | 53065-0019-660 | 1 | ||
| GUARD,SCRATCH | 55020 | 55020-0885 | 2 | ||
| DAMPER | 92075 | 92075-1446 | 1 | ||
| DAMPER | 92075A | 92075-1927 | 4 | ||
| COLLAR | 92152 | 92152-0250 | 2 | ||
| NUT,6MM | 92210 | 92210-0277 | 3 | ||
| KIT,SINGLE SEAT COVER,WHITE | 99994B | 99994-0205-25Y | 1 | ||
| KIT,SINGLE SEAT COVER,BLACK | 99994C | 99994-0205-660 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 5 |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-LOCK | |
| REF # | 32074 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,P.S.WHITE | |
| REF # | 53065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,M.S.BLACK | |
| REF # | 53065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,SCRATCH | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| KIT,SINGLE SEAT COVER,WHITE | |
| REF # | 99994B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT,SINGLE SEAT COVER,BLACK | |
| REF # | 99994C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
