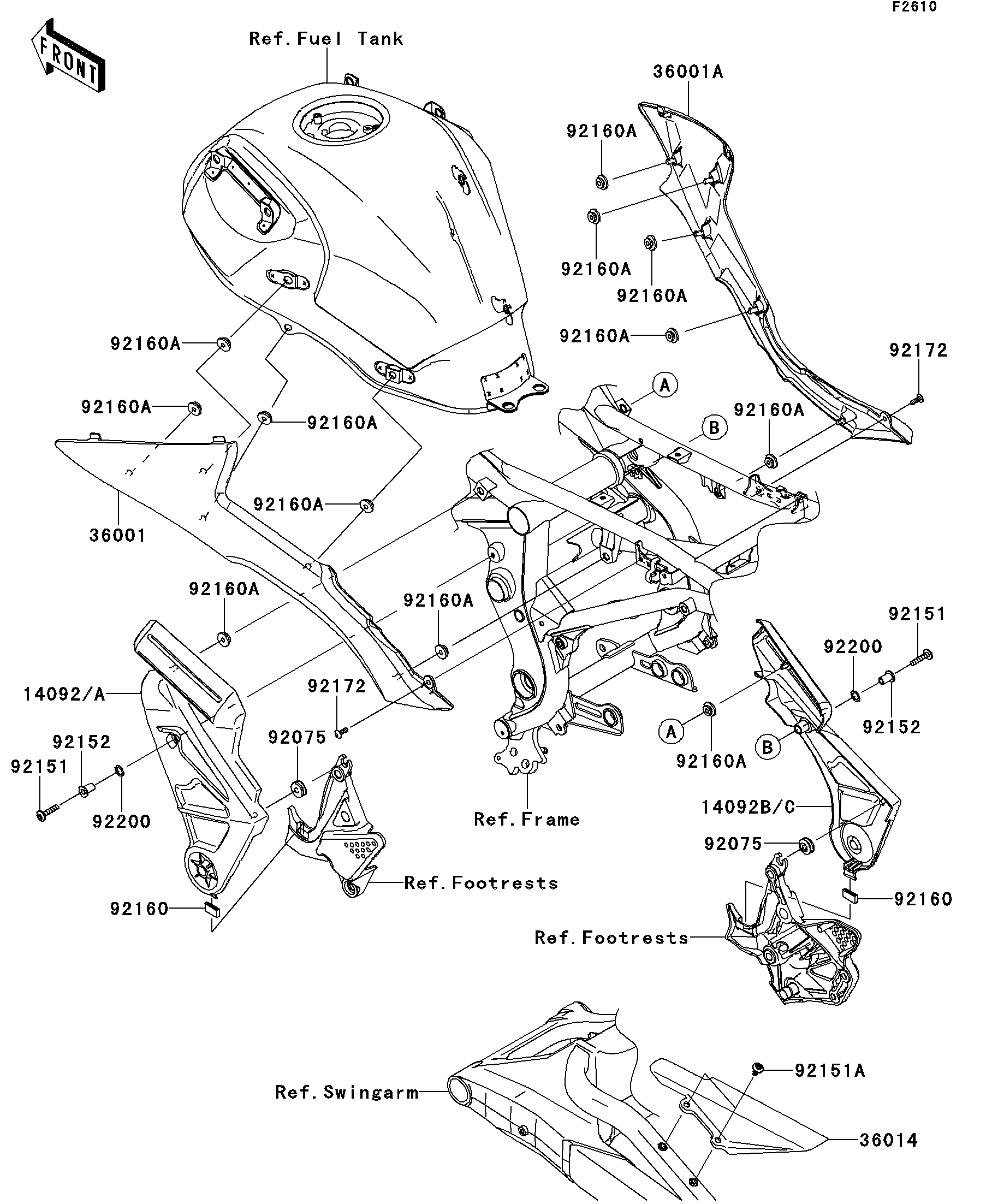

2012 VERSYS® - Side Covers/Chain Cover
14092
14092B
36001
36001A
36014
92075
92075
92151
92151
92151A
92152
92152
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92172
92172
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,PIVOT,LH,F.S.BLACK | 14092 | 14092-0158-18T | 1 | _________________________________________CN | |
| COVER,PIVOT,RH,F.S.BLACK | 14092B | 14092-0159-18T | 1 | _________________________________________CN | |
| COVER-SIDE,LH | 36001 | 36001-0196 | 1 | ||
| COVER-SIDE,RH | 36001A | 36001-0197 | 1 | ||
| CASE-CHAIN,RR | 36014 | 36014-0018 | 1 | ||
| DAMPER | 92075 | 92075-1067 | 2 | ||
| BOLT,SOCKET,6X30 | 92151 | 92151-1605 | 2 | ||
| BOLT,SOCKET,6X14 | 92151A | 92151-1654 | 2 | ||
| COLLAR | 92152 | 92152-0627 | 2 | ||
| DAMPER | 92160 | 92160-1190 | 2 | ||
| DAMPER | 92160A | 92160-1613 | 12 | ||
| SCREW,5X16 | 92172 | 92172-0322 | 2 | ||
| WASHER,10.4X15.9X0.5 | 92200 | 92200-0157 | 2 |
| COVER,PIVOT,LH,F.S.BLACK | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| COVER,PIVOT,RH,F.S.BLACK | |
| REF # | 14092B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| COVER-SIDE,LH | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN,RR | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X30 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.4X15.9X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
