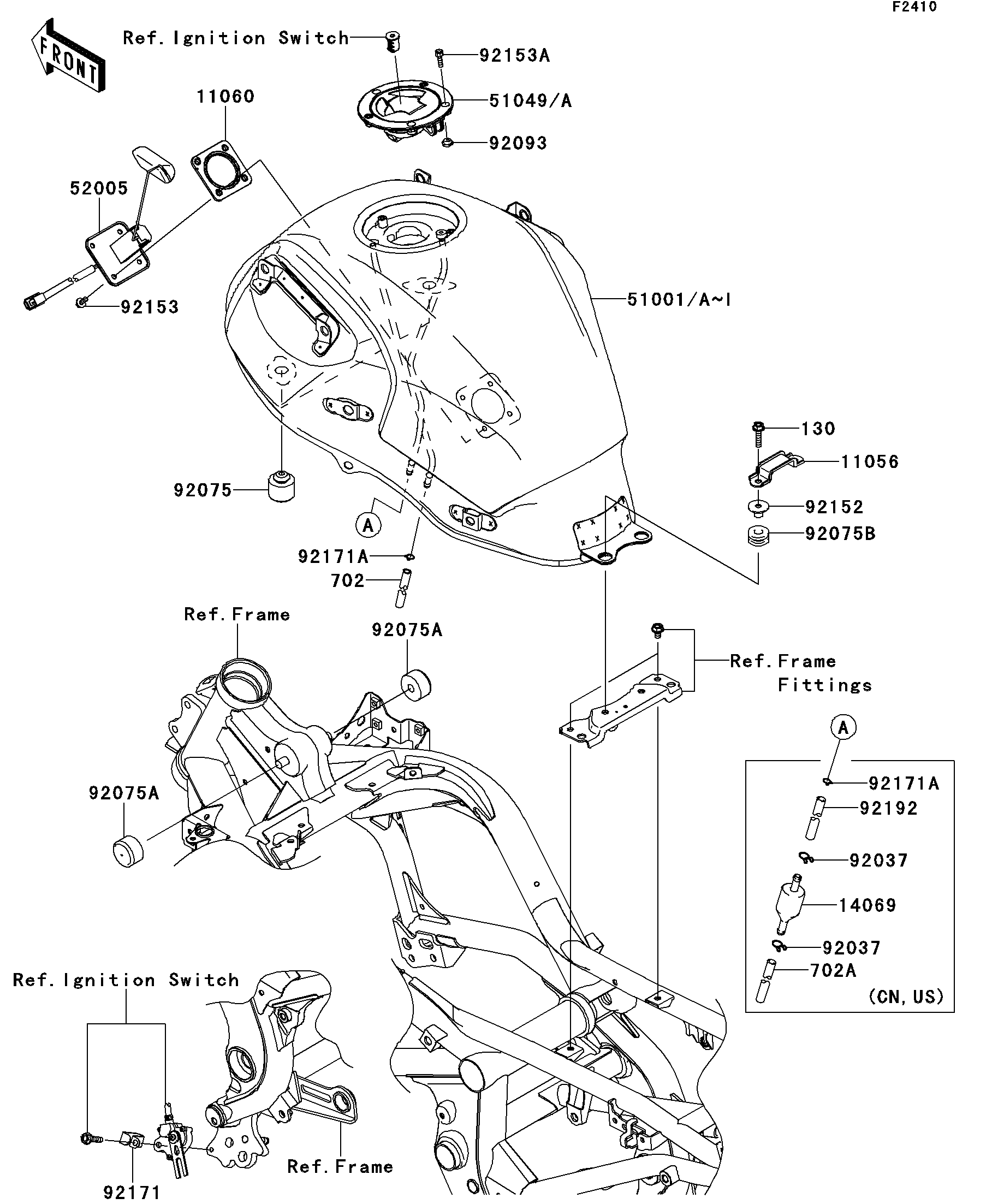

2012 VERSYS® - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11060
11060
51001
51001
51001F
51001F
51001H
51001H
51049
51049
52005
52005
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92093
92093
92152
92152
92153
92153
92153A
92153A
92171
92171
130
130
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11056 11056-0361 1
GASKET,FUEL GAUGE 11060 11060-1952 1
TANK-COMP-FUEL,P.S.YELLOW 51001 51001-0387-15G 1 CN,US
TANK-COMP-FUEL,M.F.S.BLACK 51001B 51001-0387-15V 1 US
TANK-COMP-FUEL,P.S.YELLOW 51001F 51001-0388-15G 1 CA
TANK-COMP-FUEL,M.F.S.BLACK 51001H 51001-0388-15V 1 CA
CAP-TANK,FUEL 51049 51049-0039 1
GAUGE,FUEL 52005 52005-0023 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER 92075B 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X13.1 92152 92152-0910 2
BOLT,FLANGED,5X12 92153 92153-1421 4
BOLT,SOCKET,5X16 92153A 92153-1616 3
CLAMP 92171 92171-0911 1
BOLT-FLANGED,6X25 130 130BA0625 2
TUBE-RUBBER,6X9X750 702 702A06750 1
