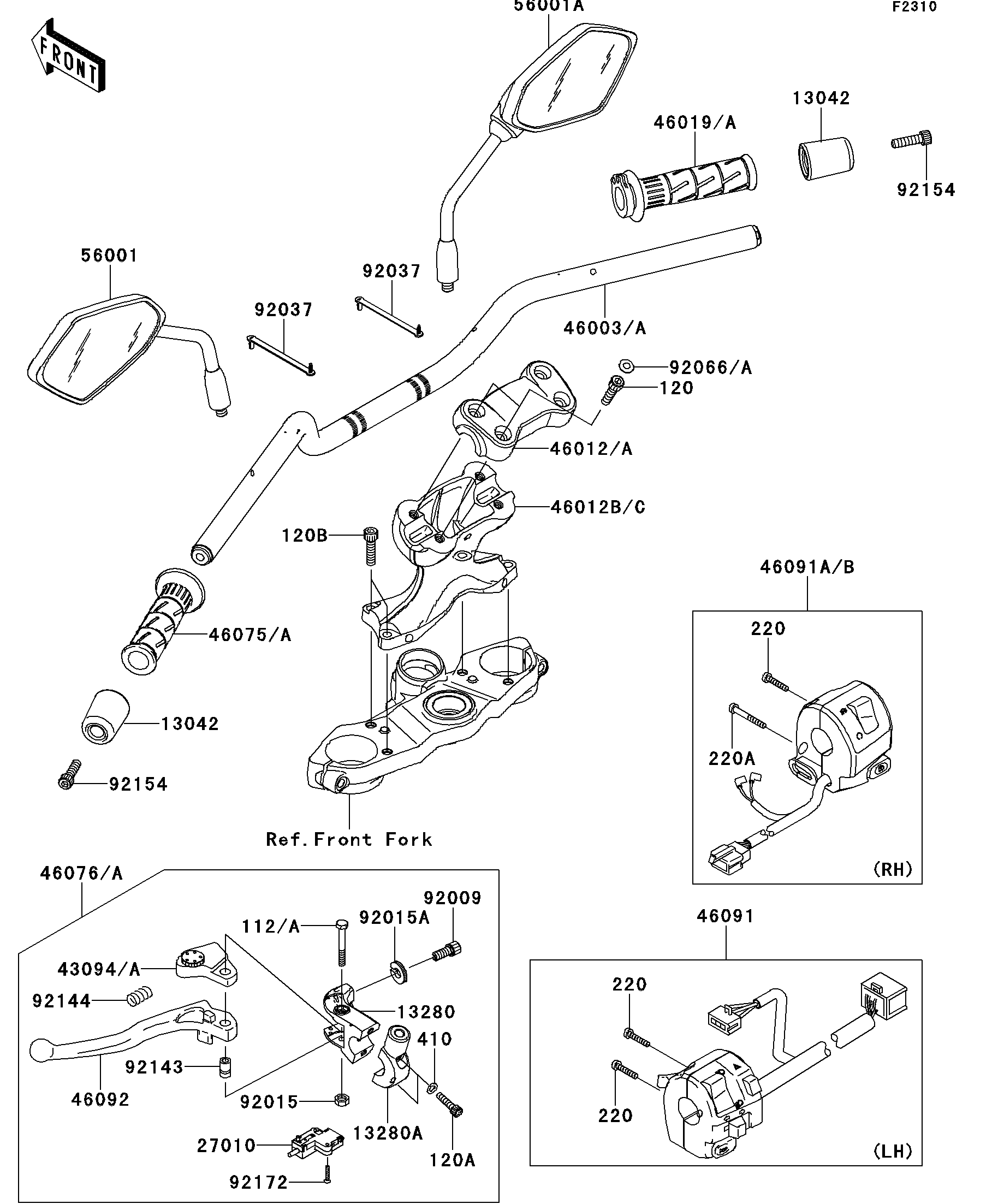

2012 VERSYS® - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13042
13042
13280
13280
13280A
13280A
27010
27010
43094A
43094A
46003
46003
46012
46012
46012B
46012B
46019
46019
46075A
46075A
46076
46076
46091
46091
46091A
46091A
46092
46092
56001
56001
56001A
56001A
92009
92009
92015
92015
92015A
92015A
92037
92037
92037
92037
92066
92066
92143
92143
92144
92144
92154
92154
92154
92154
92172
92172
112
112
120
120
120A
120A
120B
120B
220
220
220
220
220
220
220A
220A
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5002 2
HOLDER,CLUTCH LEVER 13280 13280-0306 1
HOLDER,CLUTCH LEVER 13280A 13280-0307 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094A 43094-1053 1
HANDLE,F.P.SILVER 46003 46003-0167-10T 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0029-18R 1
HOLDER-HANDLE,LWR,F.S.BLACK 46012B 46012-0030-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,HANDLE,LH 46075A 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0052 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0214 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0215 1
LEVER-GRIP,CLUTCH 46092 46092-0031 1
MIRROR-ASSY,LH 56001 56001-0194 1
MIRROR-ASSY,RH 56001A 56001-0195 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
CLAMP,SPEED,L=80.5 92037 92037-1903 2
PLUG 92066 92066-0735 4
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,SOCKET,8X30 92154 92154-0440 2
SCREW,3X16 92172 92172-0183 2
BOLT-UPSET,6X45 112 112AB0645 1
BOLT-SOCKET,8X30 120 120CA0830 4
BOLT-SOCKET,6X25 120A 120CB0625 2
BOLT-SOCKET,8X30 120B 120CC0830 4
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROS,5X40 220A 220AB0540 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
