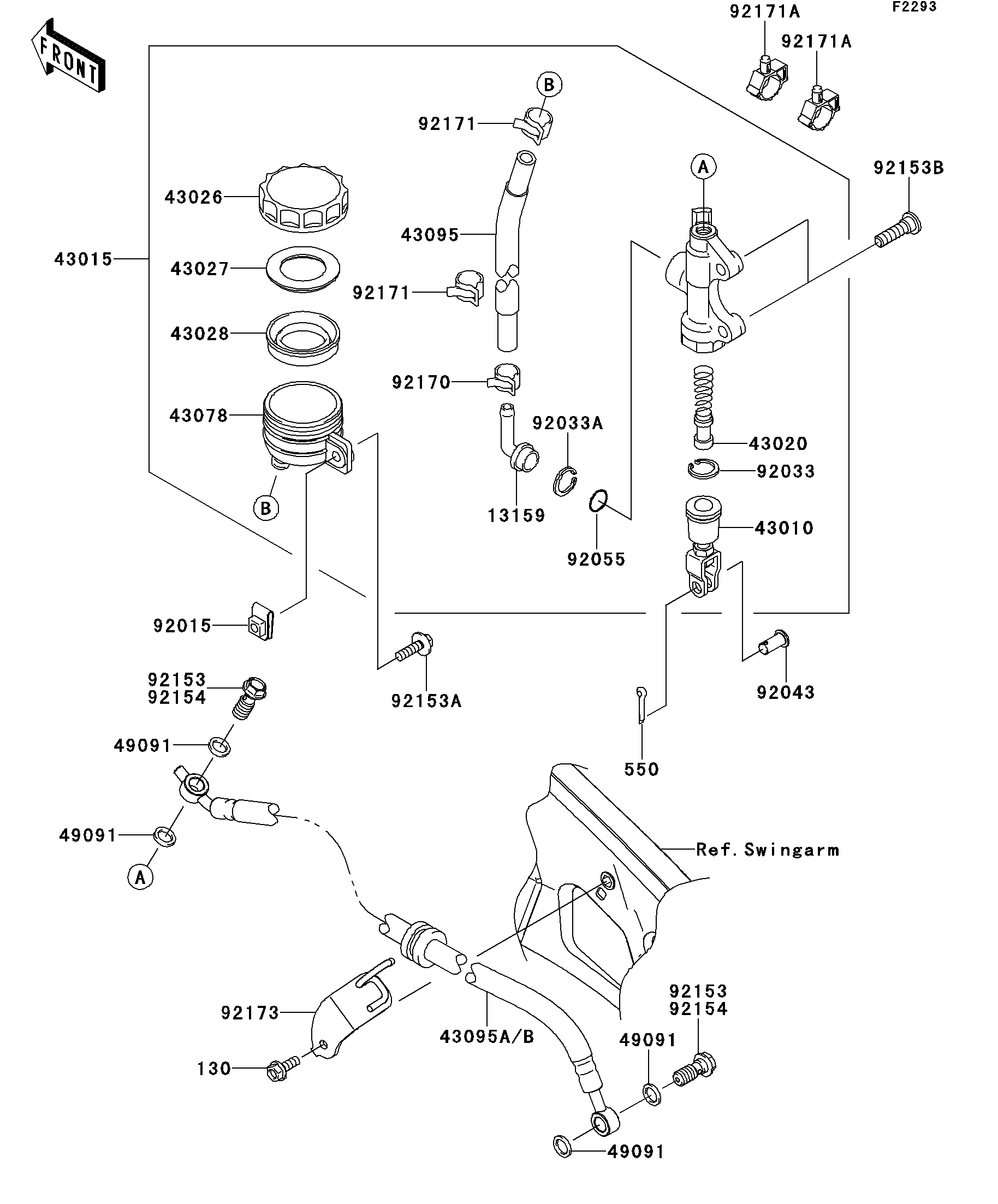

2012 VERSYS® - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49091
49091
49091
49091
92015
92033
92033A
92043
92055
92153
92153
92153A
92153B
92170
92171
92171
92171A
92171A
92173
130
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1074 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0068 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR MASTER CYLINDER 43095 43095-0193 1
HOSE-BRAKE,RR,519MM 43095A 43095-0602 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
NUT,6MM 92015 92015-1602 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0182 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,6X22 92153A 92153-0725 1
BOLT,SOCKET,8X30 92153B 92153-1624 2
CLAMP,HOSE 92170 92170-1091 1
CLAMP,HOSE 92171 92171-0463 2
CLAMP 92171A 92171-0955 2
CLAMP,BRAKE HOSE 92173 92173-0128 1
BOLT-FLANGED,6X16 130 130BB0616 1
PIN-COTTER,2.0X15 550 550AA2015 1
