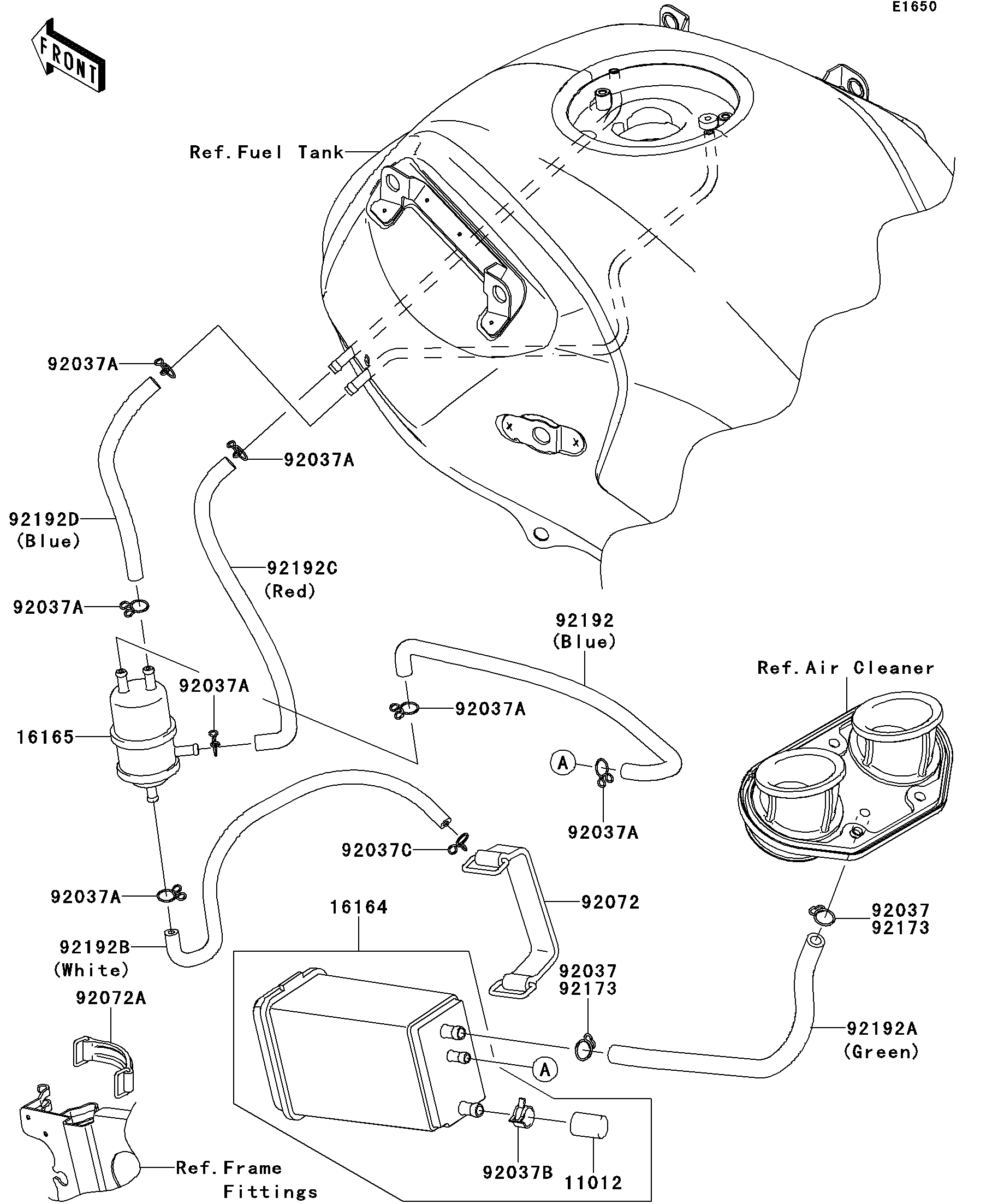

2012 VERSYS® - Fuel Evaporative System(CA)
11012
16164
16165
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037C
92072
92072A
92173
92173
92192
92192A
92192B
92192C
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 7 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 1 | CA | |
| BAND | 92072 | 92072-1384 | 1 | CA | |
| BAND,L=50 | 92072A | 92072-1419 | 1 | CA | |
| CLAMP,11.5MM | 92173 | 92173-0197 | 2 | CA | |
| TUBE,CANISTER-SEPARATOR,BLUE | 92192 | 92192-0719 | 1 | CA | |
| TUBE,A/C-CANISTER,GREEN | 92192A | 92192-0720 | 1 | CA | |
| TUBE,SEPARATOR-THROBO,WHITE | 92192B | 92192-0721 | 1 | CA | |
| TUBE,SEPARATOR-TANK,RED | 92192C | 92192-0871 | 1 | CA | |
| TUBE,TANK-SEPARATOR,BLUE | 92192D | 92192-0872 | 1 | CA |
