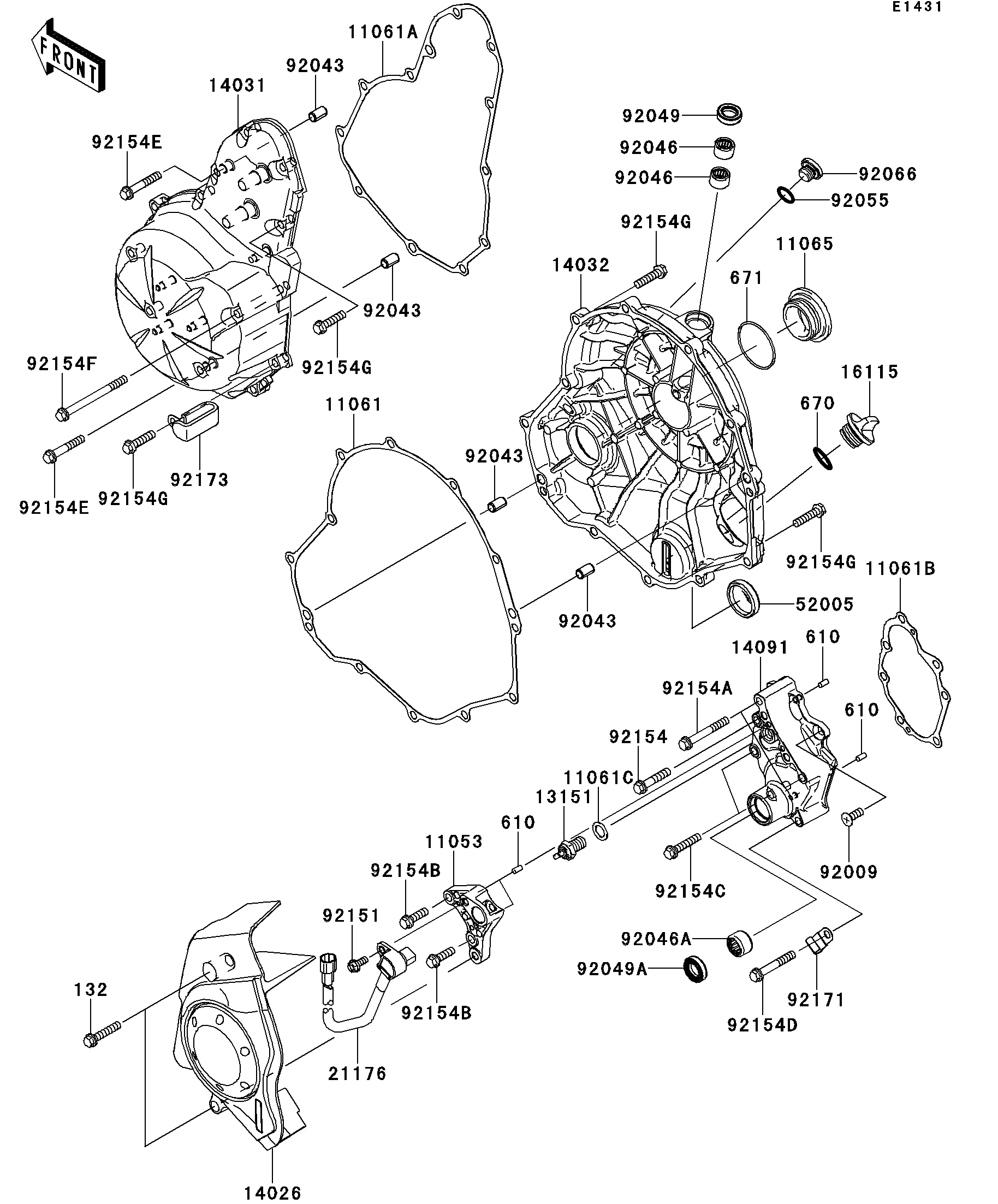

2012 VERSYS® - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11061
11061A
11061B
11061C
11065
13151
14026
14031
14032
14091
16115
21176
52005
92009
92043
92043
92043
92043
92046
92046
92046A
92049
92049A
92055
92066
92151
92154
92154A
92154B
92154B
92154C
92154D
92154E
92154E
92154F
92154G
92154G
92154G
92154G
92171
92173
132
610
610
610
670
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-1739 1
GASKET,CLUTCH COVER 11061 11061-0164 1
GASKET,GENERATOR COVER 11061A 11061-0165 1
GASKET,TRANSMISSION COVER 11061B 11061-0166 1
GASKET,10.5X16X1 11061C 11061-0373 1
CAP 11065 11065-0281 1
SWITCH-COMP,NEUTRAL 13151 13151-1102 1
COVER-CHAIN 14026 14026-0092 1
COVER-GENERATOR 14031 14031-0096 1
COVER-CLUTCH 14032 14032-0115 1
COVER,TRANSMISSION 14091 14091-1673 1
CAP-OIL FILLER 16115 16115-1053 1
SENSOR,SPEED 21176 21176-0065 1
GAUGE,OIL LEVEL 52005 52005-0071 1
SCREW,6X16 92009 92009-1360 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-NEEDLE,HK1210FM 92046 92046-0034 2
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
SEAL-OIL,TC13225.5 92049A 92049-1519 1
RING-O,13.0X1.9 92055 92055-1011 1
PLUG,12X9.1 92066 92066-0131 1
BOLT,FLANGED,5X12 92151 92151-1305 1
BOLT,FLANGED,6X30 92154 92154-0727 1
BOLT,FLANGED,6X45 92154A 92154-0728 2
BOLT,FLANGED,6X20 92154B 92154-0776 2
BOLT,FLANGED,6X30 92154C 92154-0778 2
BOLT,FLANGED,6X40 92154D 92154-0782 1
BOLT,FLANGED,6X35 92154E 92154-0807 2
BOLT,FLANGED,6X70 92154F 92154-0808 1
BOLT,FLANGED,6X25 92154G 92154-0819 21
CLAMP 92171 92171-0813 1
CLAMP 92173 92173-0725 1
BOLT-FLANGED-SMALL,6X30 132 132BB0630 2
ROLLER,4X8 610 610A0408 4
O RING,20MM 670 670B2020 1
O RING,40MM 671 671B2540 1
