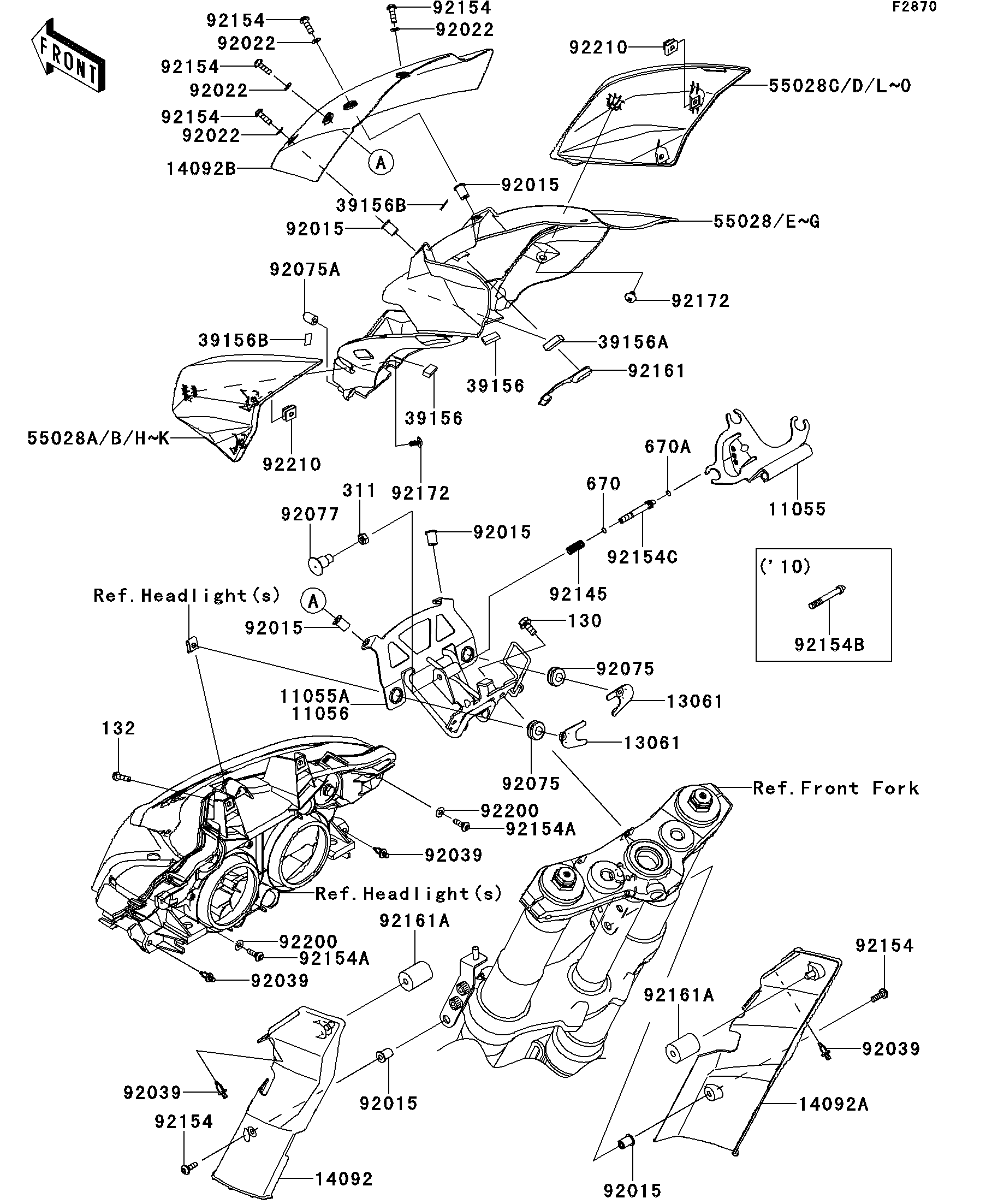

2010 Z1000 - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
13061
13061
13061
13061
14092
14092
14092A
14092A
14092B
14092B
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92039
92039
92039
92039
92039
92039
92039
92039
92075
92075
92075
92075
92075A
92075A
92077
92077
92145
92145
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92200
92200
92200
92200
92210
92210
92210
92210
130
130
132
132
311
311
670A
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11055 11055-1700 1
BRACKET,HEAD LAMP 11055A 11055-1702 1
BOSS 13061 13061-0378 2
COVER,FORK,LH,F.BLACK 14092 14092-0017-6Z 1
COVER,FORK,RH,F.BLACK 14092A 14092-0018-6Z 1
COVER,COWLING 14092B 14092-0082 1
PAD 39156 39156-0284 2
PAD,RUBBER 39156A 39156-0548 1
PAD,UPP COWLING,CNT 39156B 39156-0632 2
COWLING,UPP,CNT,F.S.BLACK 55028 55028-0285-18T 1
COWLING,UPP,LH,P.S.WHITE 55028A 55028-0286-25Y 1 CA,US
COWLING,UPP,LH,M.S.BLACK 55028B 55028-0286-660 1
COWLING,UPP,RH,P.S.WHITE 55028C 55028-0287-25Y 1 CA,US
COWLING,UPP,RH,M.S.BLACK 55028D 55028-0287-660 1
NUT,WELL,5MM 92015 92015-1757 6
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
RIVET 92039 92039-0051 4
DAMPER 92075 92075-1028 2
DAMPER,SIDE COVER 92075A 92075-1964 2
KNOB 92077 92077-0027 1
SPRING 92145 92145-0756 1
BOLT,SOCKET,5X16 92154 92154-0026 6
BOLT,SOCKET,5X16 92154A 92154-0209 2
BOLT,6X42 92154B 92154-0453 1
DAMPER,TAIL LAMP 92161 92161-0191 1
DAMPER,6.3X22X30 92161A 92161-0865 2
SCREW,TAPPING,5X10 92172 92172-1061 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,5MM 92210 92210-0351 2
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED-SMALL 132 132BB0516 2
NUT-HEX,6MM,BLACK 311 311AB0600 1
O RING,5MM 670A 670B1505 1
