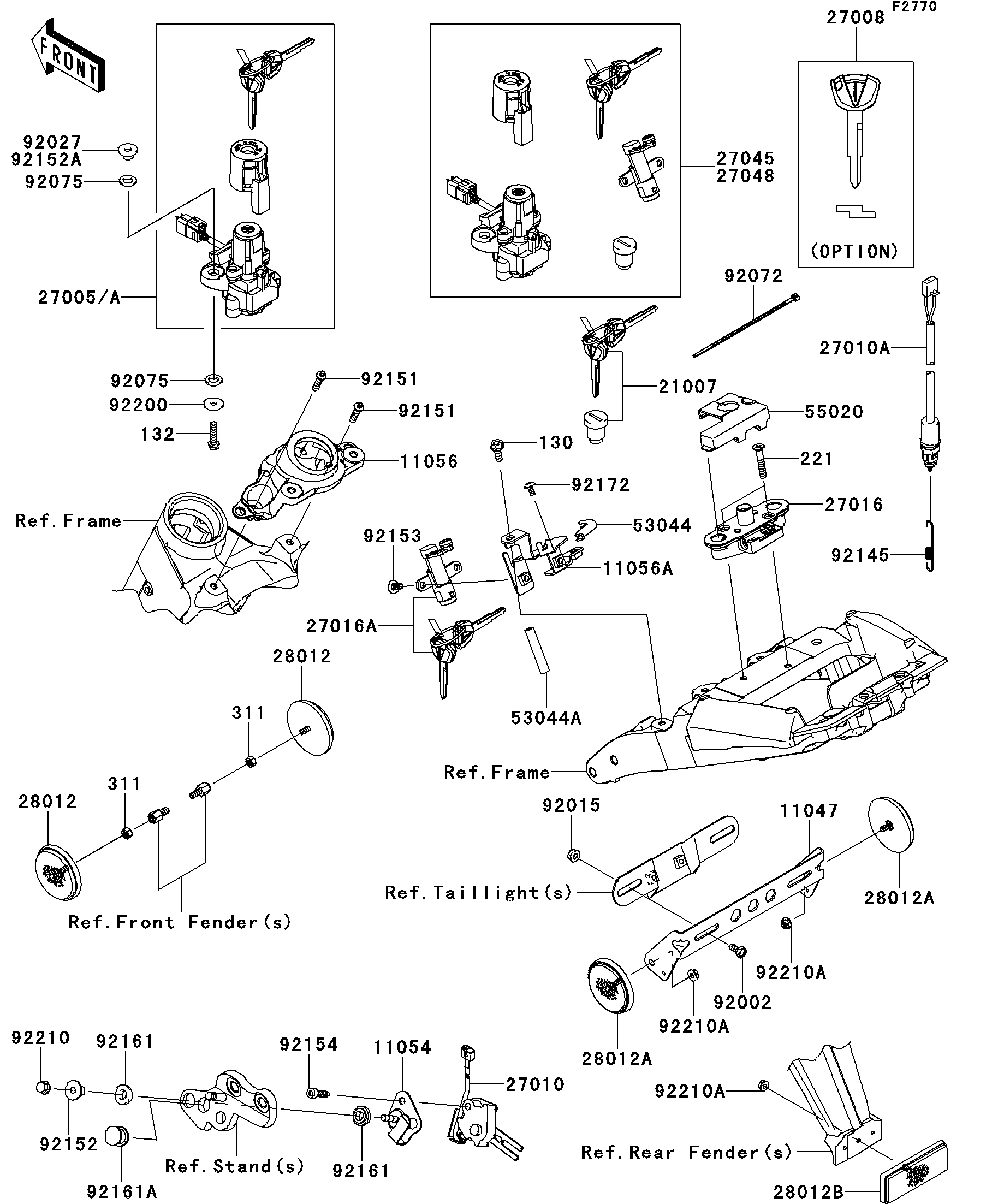

2010 Z1000 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11047
11047
11054
11054
11056
11056
11056A
11056A
21007
21007
27005
27005
27008
27008
27010
27010
27010A
27010A
27016
27016
27016A
27016A
27045
27045
28012
28012
28012
28012
28012A
28012A
28012A
28012A
28012B
28012B
53044
53044
53044A
53044A
55020
55020
92002
92002
92015
92015
92027
92027
92072
92072
92075
92075
92075
92075
92145
92145
92151
92151
92151
92151
92152
92152
92153
92153
92154
92154
92161
92161
92161
92161
92161A
92161A
92172
92172
92200
92200
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
130
130
132
132
221
221
311
311
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11047 11047-1470 1
BRACKET,SIDE STAND SWITCH 11054 11054-1904 1
BRACKET,IGNITION SWITCH 11056 11056-0161 1
BRACKET,SEAT,LOCK 11056A 11056-0181 1
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SWITCH-ASSY-IGNITION 27005 27005-0059 1
KEY-LOCK,BLANK 27008 27008-0069 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0112 1
SWITCH,REAR BRAKE 27010A 27010-1486 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0035 1
LOCK-ASSY,SEAT 27016A 27016-5365 1
SWITCH-ASSY 27045 27045-5413 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
TRIM,L=60 53044 53044-1249 1
TRIM,L=48 53044A 53044-1324 1
GUARD,SEAT STRIKER 55020 55020-0483 1
BOLT,6X12 92002 92002-1132 2
NUT,FLANGED,6MM 92015 92015-1367 2
COLLAR,L=9.6 92027 92027-1045 2
BAND,L=148 92072 92072-3768 1
DAMPER 92075 92075-1564 4
SPRING,BRAKE LAMP SWITCH 92145 92145-0761 1
BOLT,TORX,6X22 92151 92151-1946 2
COLLAR 92152 92152-1074 1
BOLT,SOCKET,6X12 92153 92153-1617 2
BOLT,SOCKET,6X22 92154 92154-0031 1
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
SCREW,TAPPING,5X10 92172 92172-1061 1
WASHER,6X20X1.6 92200 92200-0212 2
NUT,CAP,6MM 92210 92210-0003 1
NUT,FLANGED,5MM 92210A 92210-0007 3
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
SCREW-CSK-CROSS,6X30 221 221AB0630 2
NUT-HEX 311 311AB0500 2
