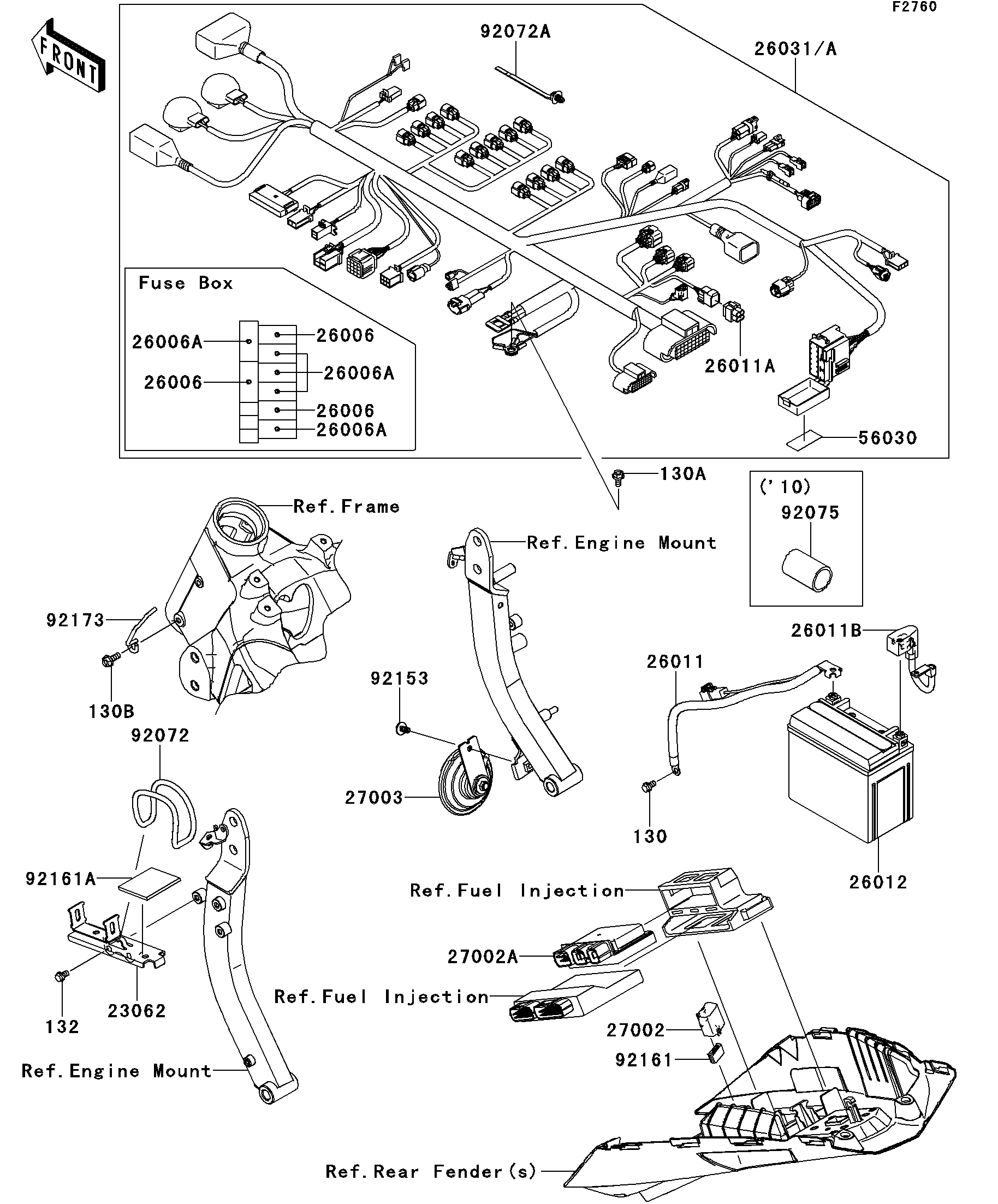

2010 Z1000 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
23062
26006
26006
26006
26006A
26006A
26006A
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
92072
92072A
92075
92153
92161
92161A
92173
130
130A
130B
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-COMP 23062 23062-0117 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 5
WIRE-LEAD,BATTERY(-) 26011 26011-0253 1
WIRE-LEAD,CAP 26011A 26011-0271 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0285 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0088 1
HARNESS,MAIN 26031 26031-0923 1
RELAY-ASSY,SIGNAL LAMP 27002 27002-0005 1
RELAY-ASSY 27002A 27002-0007 1
HORN 27003 27003-0066 1
LABEL,FUSE BOX 56030 56030-0361 1
BAND,79.6X5.7 92072 92072-0118 1
BAND 92072A 92072-1414 2
DAMPER,25X31X50 92075 92075-1369 1
BOLT,SOCKET,6X12 92153 92153-1948 1
DAMPER,SIGNAL RELAY 92161 92161-0283 1
DAMPER,39X45X3 92161A 92161-1360 1
CLAMP 92173 92173-0182 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 1
BOLT-FLANGED,6X16 130B 130BA0616 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
