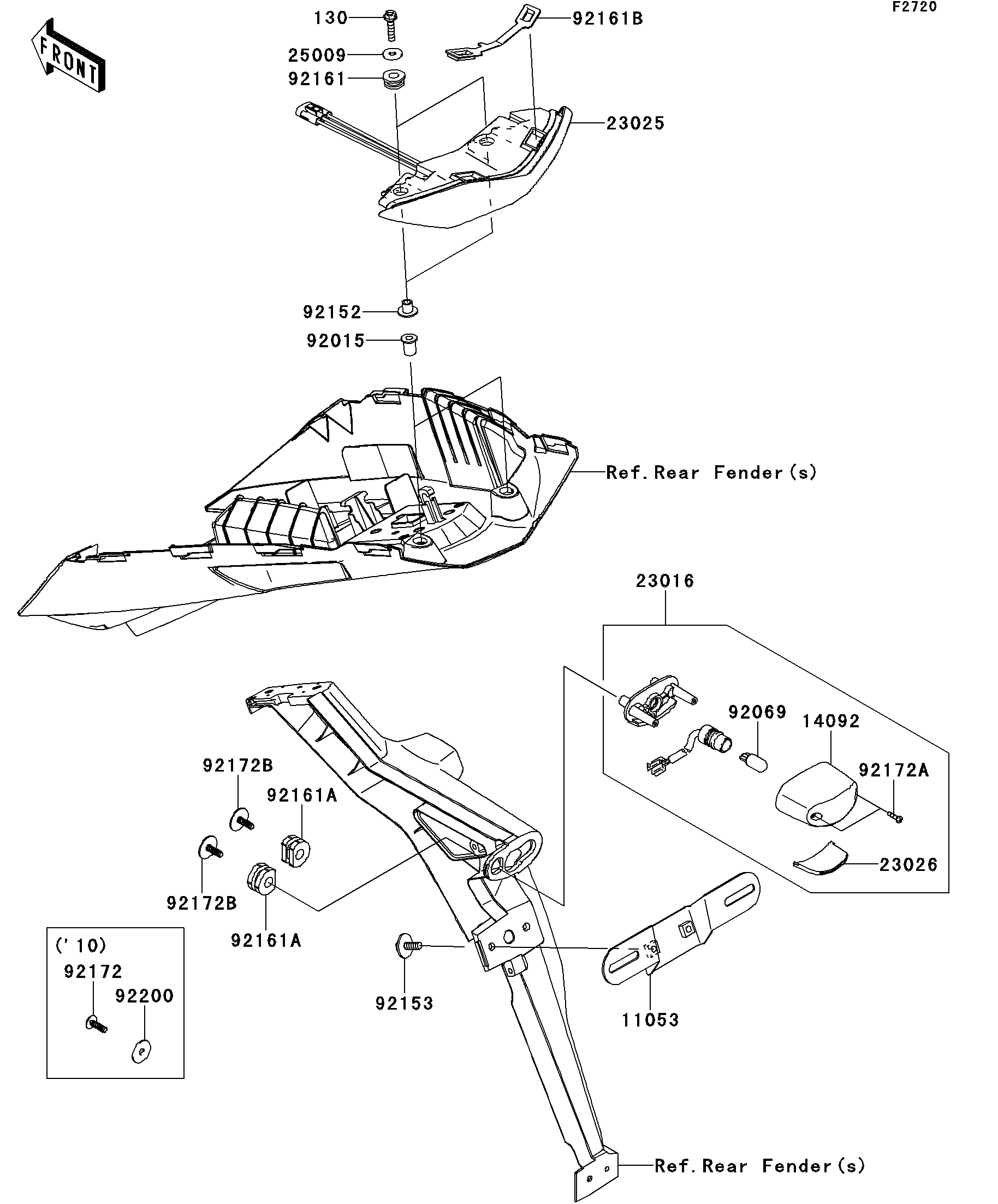

2010 Z1000 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
14092
23016
23025
23026
25009
92015
92069
92152
92153
92161
92161A
92161A
92161B
92172
92172A
92200
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11053 11053-0400 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0033 1
LAMP-TAIL 23025 23025-0068 1
LENS,LICENSE LAMP 23026 23026-0015 1
WASHER,5.2X16X1.2 25009 25009-004 2
NUT,WELL,5MM 92015 92015-1757 2
BULB,12V 5W 92069 92069-1016 1
COLLAR 92152 92152-0092 2
BOLT,6X16 92153 92153-1423 2
DAMPER 92161 92161-0317 2
DAMPER 92161A 92161-0776 2
DAMPER,TAIL LAMP 92161B 92161-0808 1
SCREW,TAPPING,5X16 92172 92172-0175 2
SCREW,TAPPING,2.9X13 92172A 92172-0343 2
WASHER,5.5X20X1.2 92200 92200-0284 2
BOLT-FLANGED,5X25 130 130BA0525 2
