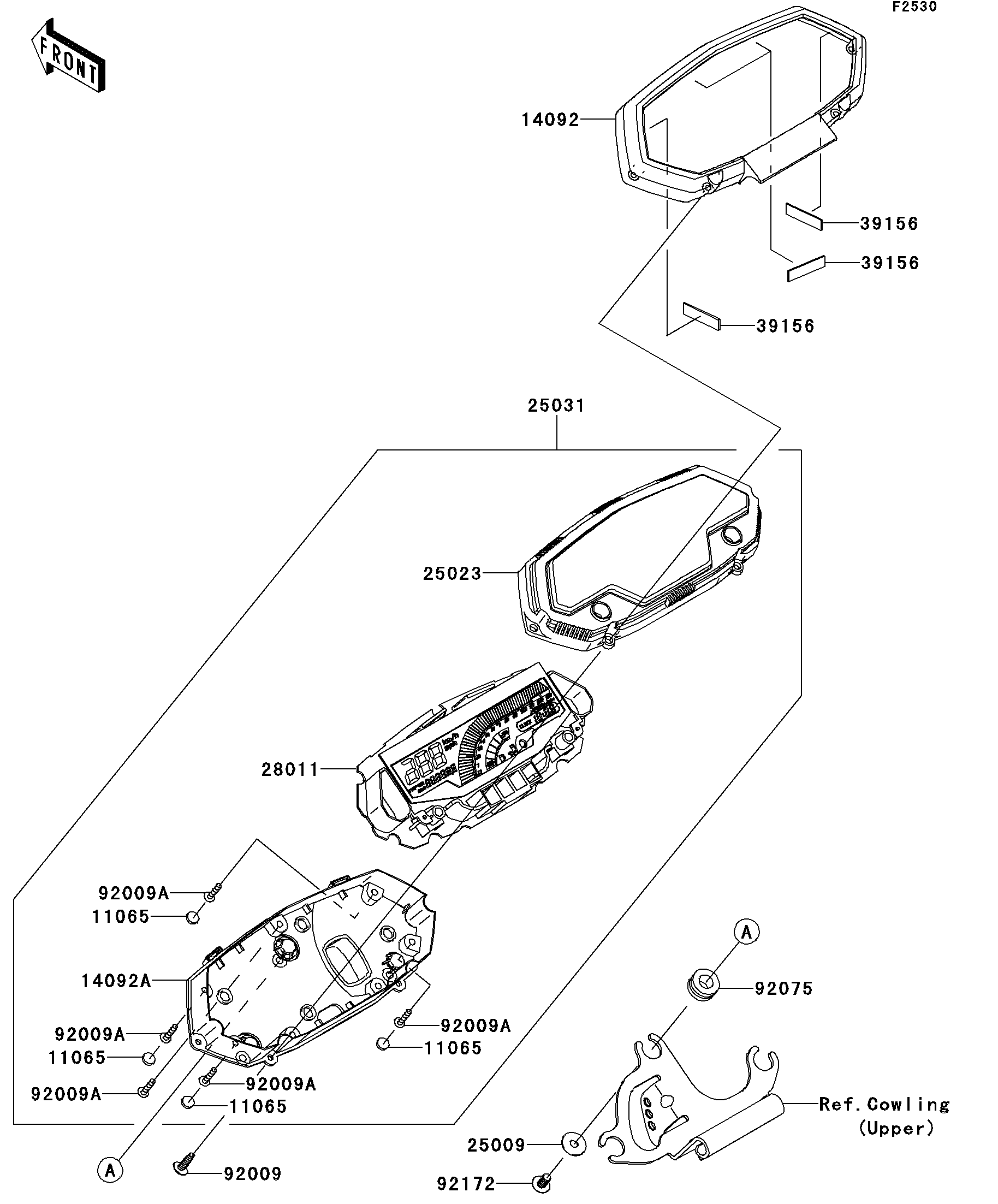

Parts Diagrams |
11065
11065
11065
11065
14092
14092A
25009
25023
25031
28011
39156
39156
39156
92009
92009A
92009A
92009A
92009A
92009A
92075
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-0355 | 4 | ||
| COVER,METER | 14092 | 14092-0019 | 1 | ||
| COVER,METER,LWR | 14092A | 14092-0094 | 1 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
| COVER-METER CASE,UPP | 25023 | 25023-0062 | 1 | ||
| METER-ASSY,LCD,MPH | 25031 | 25031-0299 | 1 | ||
| METER,LCD | 28011 | 28011-0170 | 1 | ||
| PAD | 39156 | 39156-0567 | 4 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 4 | ||
| SCREW,TAPPING,3X16 | 92009A | 92009-1164 | 7 | ||
| DAMPER | 92075 | 92075-1409 | 3 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0335 | 3 |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,METER | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER,LWR | |
| REF # | 14092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 25009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,LCD,MPH | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,LCD | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X16 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
