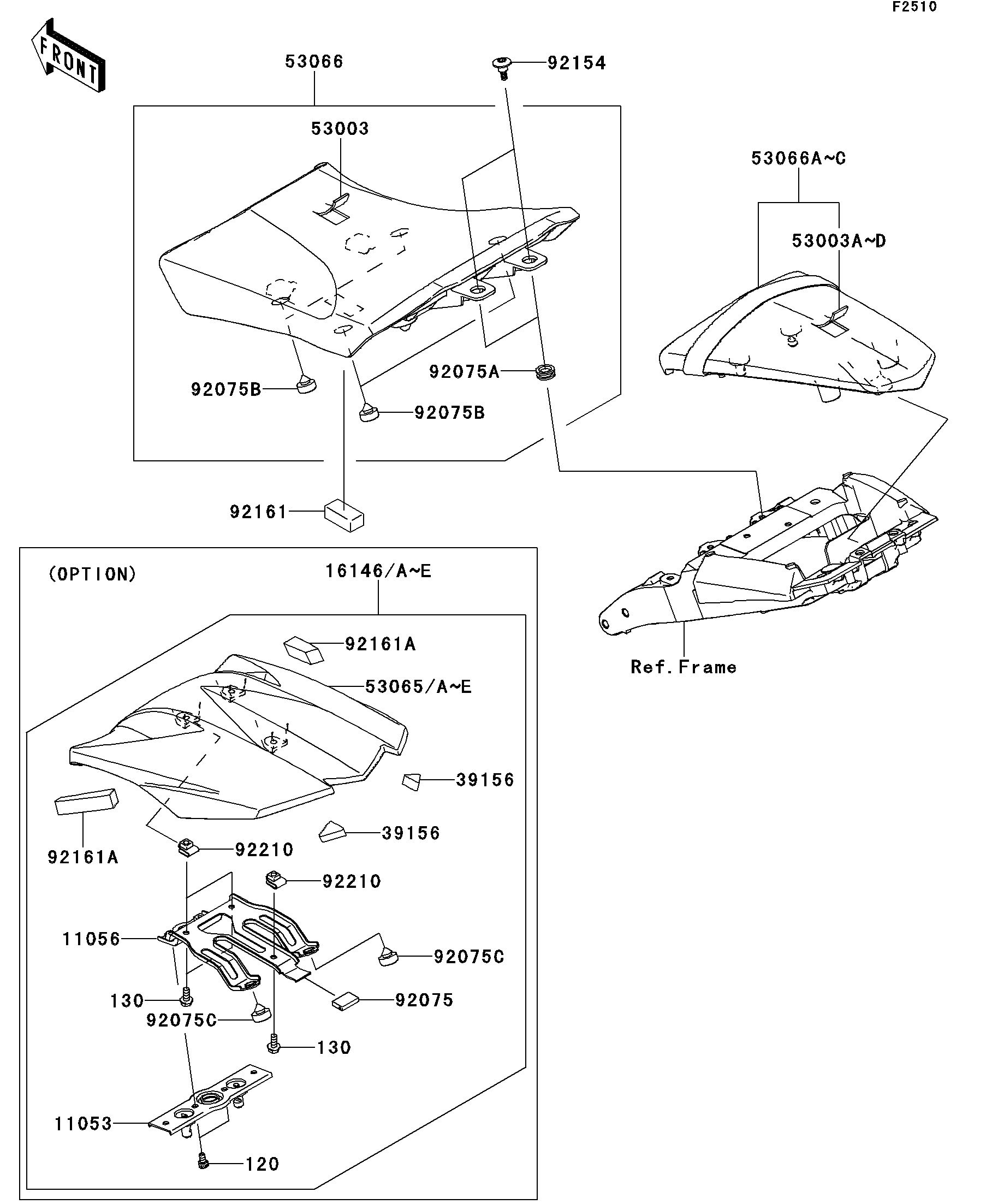

2010 Z1000 - Seat

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11056
11056
16146C
16146C
16146E
16146E
39156
39156
39156
39156
53003
53003
53003A
53003A
53003D
53003D
53065C
53065C
53065E
53065E
53066
53066
53066A
53066A
53066C
53066C
92075
92075
92075A
92075A
92075B
92075B
92075B
92075B
92075C
92075C
92075C
92075C
92154
92154
92161
92161
92161A
92161A
92161A
92161A
92210
92210
92210
92210
120
120
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT LOCK STRIKER 11053 11053-0386 1 (OPTION)
BRACKET 11056 11056-0021 1 (OPTION)
COVER-ASSY,SINGLE SEAT,WHITE 16146C 16146-0124-25Y 1 CA,US
COVER-ASSY,SINGLE SEAT,BLACK 16146E 16146-0124-660 1 (OPTION)
PAD,UPP COWLING,CNT 39156 39156-0099 2 (OPTION)
LEATHER,FR SEAT,BLACK 53003 53003-0162-MA 1
LEATHER,RR SEAT,BLACK 53003A 53003-0163-MA 1
LEATHER,RR SEAT,P.S.WHITE 53003D 53003-0163-13U 1 CA,US
COVER SEAT,P.S.WHITE 53065C 53065-0019-25Y 1 CA,US
COVER SEAT,M.S.BLACK 53065E 53065-0019-660 1 (OPTION)
SEAT-ASSY,FR,BLACK 53066 53066-0282-MA 1
SEAT,RR,LEATHER BLK+BAND BLK 53066A 53066-0284-12Y 1
SEAT,RR,LEATHER WHT+BAND WHT 53066C 53066-0284-13V 1 CA,US
DAMPER 92075 92075-1446 1 (OPTION)
DAMPER 92075A 92075-1634 2
DAMPER 92075B 92075-1927 4
DAMPER 92075C 92075-1927 2 (OPTION)
BOLT,6X20 92154 92154-0292 2
DAMPER,SEAT 92161 92161-0889 1
DAMPER 92161A 92161-0897 2 (OPTION)
NUT,6MM 92210 92210-0277 3 (OPTION)
BOLT-SOCKET,6X10 120 120CA0610 2 (OPTION)
BOLT-FLANGED,6X14 130 130BA0614 3 (OPTION)
