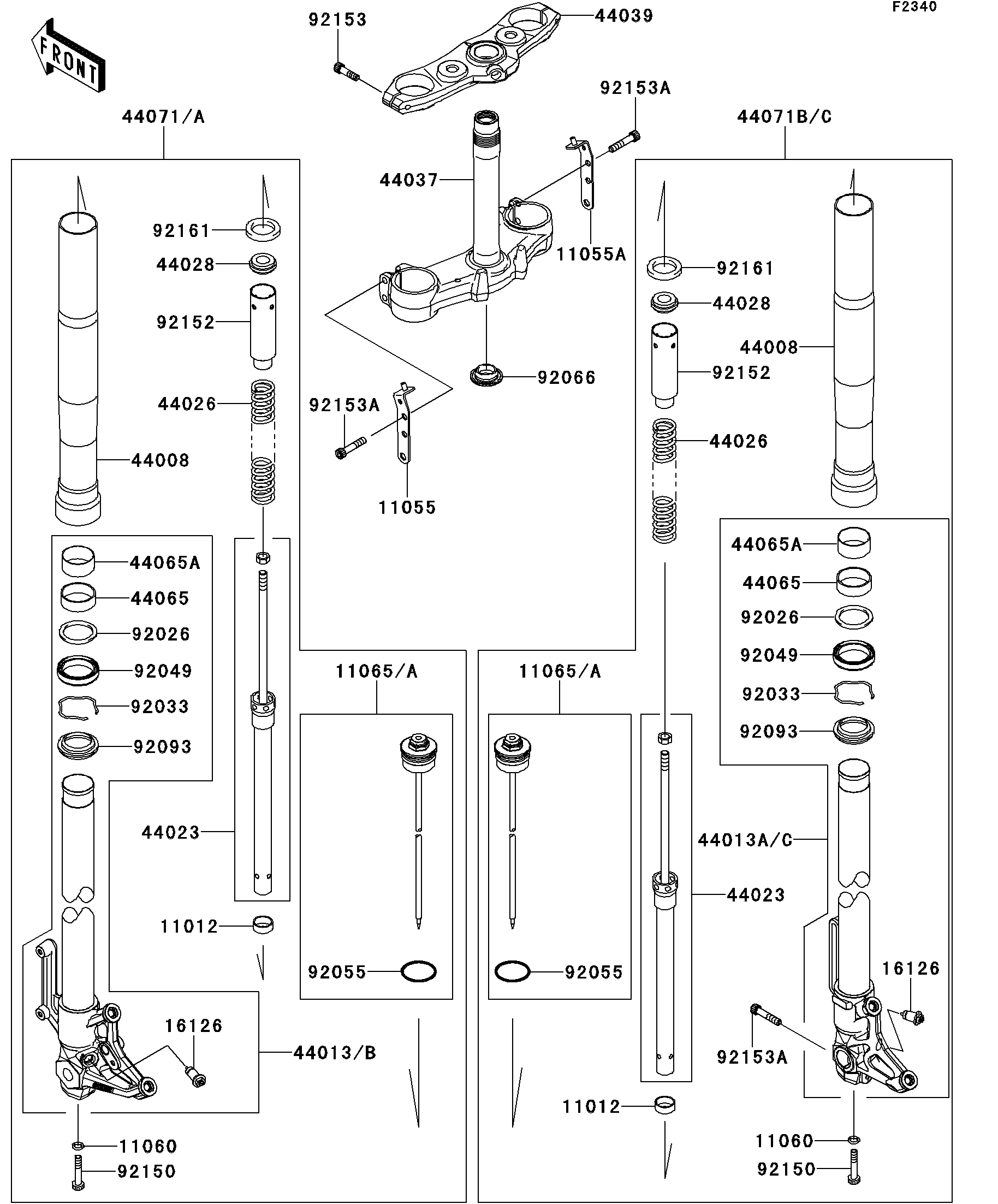

2010 Z1000 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11055
11055A
11060
11060
11065A
11065A
16126
16126
44008
44008
44013
44013A
44023
44023
44026
44026
44028
44028
44037
44039
44065
44065
44065A
44065A
44071
44071B
92026
92026
92033
92033
92049
92049
92055
92055
92066
92093
92093
92150
92150
92152
92152
92153
92153A
92153A
92153A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1761 2
BRACKET,LH 11055 11055-1831 1
BRACKET,RH 11055A 11055-1832 1
GASKET,FORK CYLINDER BOLT 11060 11060-1180 2
CAP,FORK BOLT COMP,A.BLACK 11065A 11065-0329-499 2
VALVE,FORK 16126 16126-0031 2
PIPE-FORK OUTER,A.BLACK 44008 44008-0048-499 2
PIPE-FORK INNER,LH,F.S.BLACK 44013 44013-0137-18R 1
PIPE-FORK INNER,RH,F.S.BLACK 44013A 44013-0138-18R 1
CYLINDER-SET-FORK 44023 44023-0080 2
SPRING-FRONT FORK 44026 44026-0144 2
GUIDE-FORK SPRING 44028 44028-1083 2
HOLDER-FORK UNDER,F.S.BLACK 44037 44037-0107-18R 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0096-18R 1
BUSHING-FRONT FORK,GUIDE 44065 44065-0030 2
BUSHING-FRONT FORK 44065A 44065-0036 2
DAMPER-ASSY,FORK,LH,BLACK 44071 44071-0758-30R 1
DAMPER-ASSY,FORK,RH,BLACK 44071B 44071-0759-30R 1
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0125 2
RING-O 92055 92055-0142 2
PLUG 92066 92066-0032 1
SEAL,DUST 92093 92093-0035 2
BOLT,FORK CYLINDER 92150 92150-1514 2
COLLAR 92152 92152-0263 2
BOLT,SOCKET,8X30 92153 92153-0500 2
BOLT 92153A 92153-0533 5
DAMPER 92161 92161-0418 2
