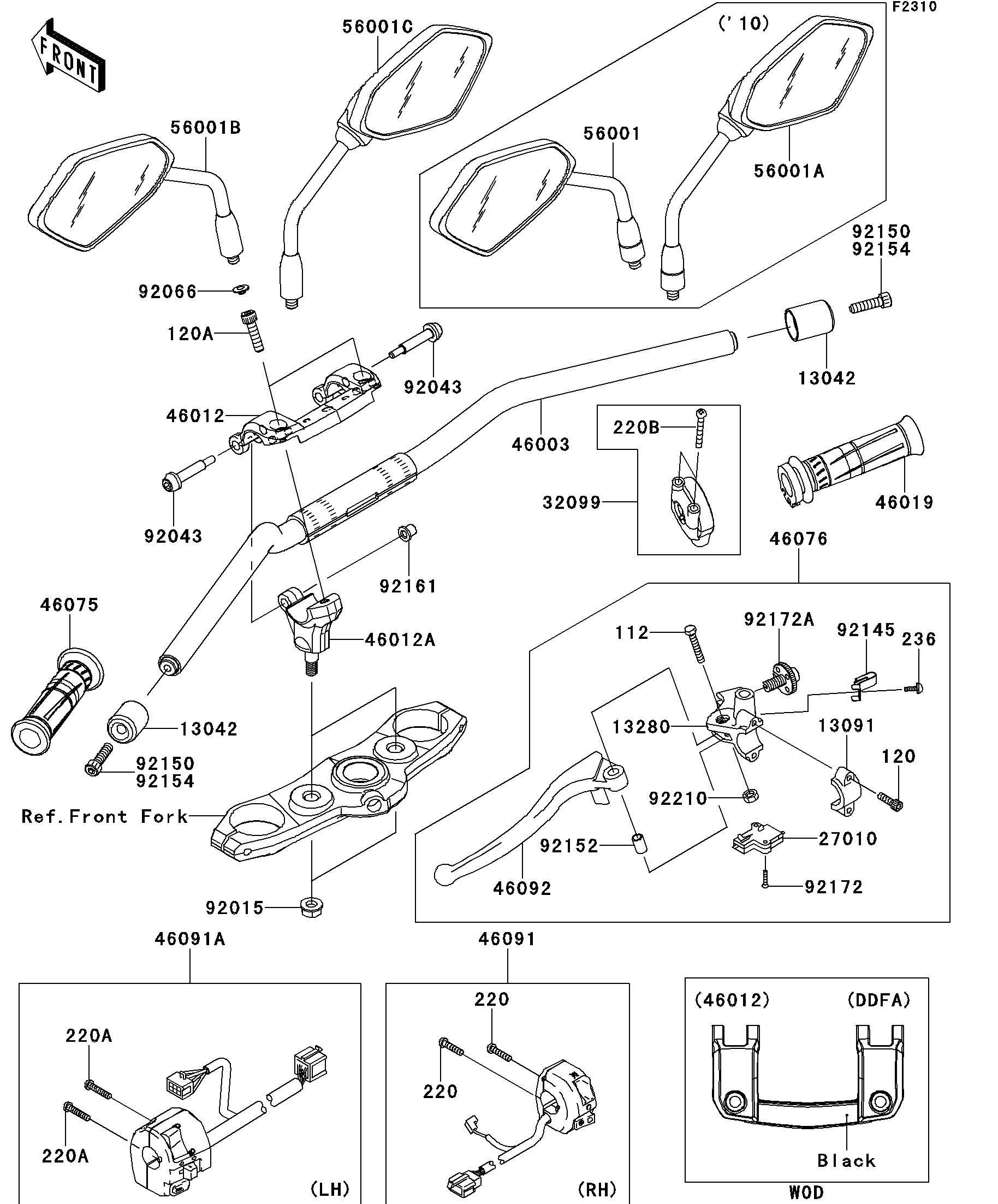

2010 Z1000 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13091
13280
27010
32099
46003
46012
46012A
46019
46075
46076
46091
46091A
46092
56001
56001A
92015
92043
92043
92066
92145
92150
92150
92152
92161
92172
92172A
92210
112
120
120A
220
220
220A
220A
220B
236
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5001 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0017 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
CASE,THROTTLE 32099 32099-0027 1
HANDLE,F.S.BLACK 46003 46003-0201-18R 1
HOLDER-HANDLE,UPP,F.BLACK 46012 46012-0073-21 1
HOLDER-HANDLE,LWR,F.BLACK 46012A 46012-0074-21 2
GRIP-ASSY,THROTTLE 46019 46019-0020 1
GRIP,LH 46075 46075-0068 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0005 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0185 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0194 1
LEVER-GRIP,CLUTCH 46092 46092-0003 1
MIRROR-ASSY,LH 56001 56001-0186 1
MIRROR-ASSY,RH 56001A 56001-0187 1
NUT,LOCK,FLANGED,10MM 92015 92015-1717 2
PIN,HANDLE HOLDER 92043 92043-0192 2
PLUG 92066 92066-1216 2
SPRING 92145 92145-1286 1
BOLT,SOCKET,8X30 92150 92150-1604 2
COLLAR 92152 92152-0103 1
DAMPER 92161 92161-0834 2
SCREW,3X16 92172 92172-0183 2
SCREW,ADJUST NUT 92172A 92172-1060 1
NUT,LOCK,6MM 92210 92210-0006 1
BOLT-UPSET,6X30 112 112BB0630 1
BOLT-SOCKET,6X20 120 120CB0620 2
BOLT-SOCKET,8X30 120A 120CB0830 2
SCREW-PAN-CROS,5X22 220 220AB0522 2
SCREW-PAN-CROS,5X25 220A 220AB0525 2
SCREW-PAN-CROS,5X35 220B 220AB0535 2
SCREW-PAN-WSP-CROS,4X10 236 236AB0410 1
