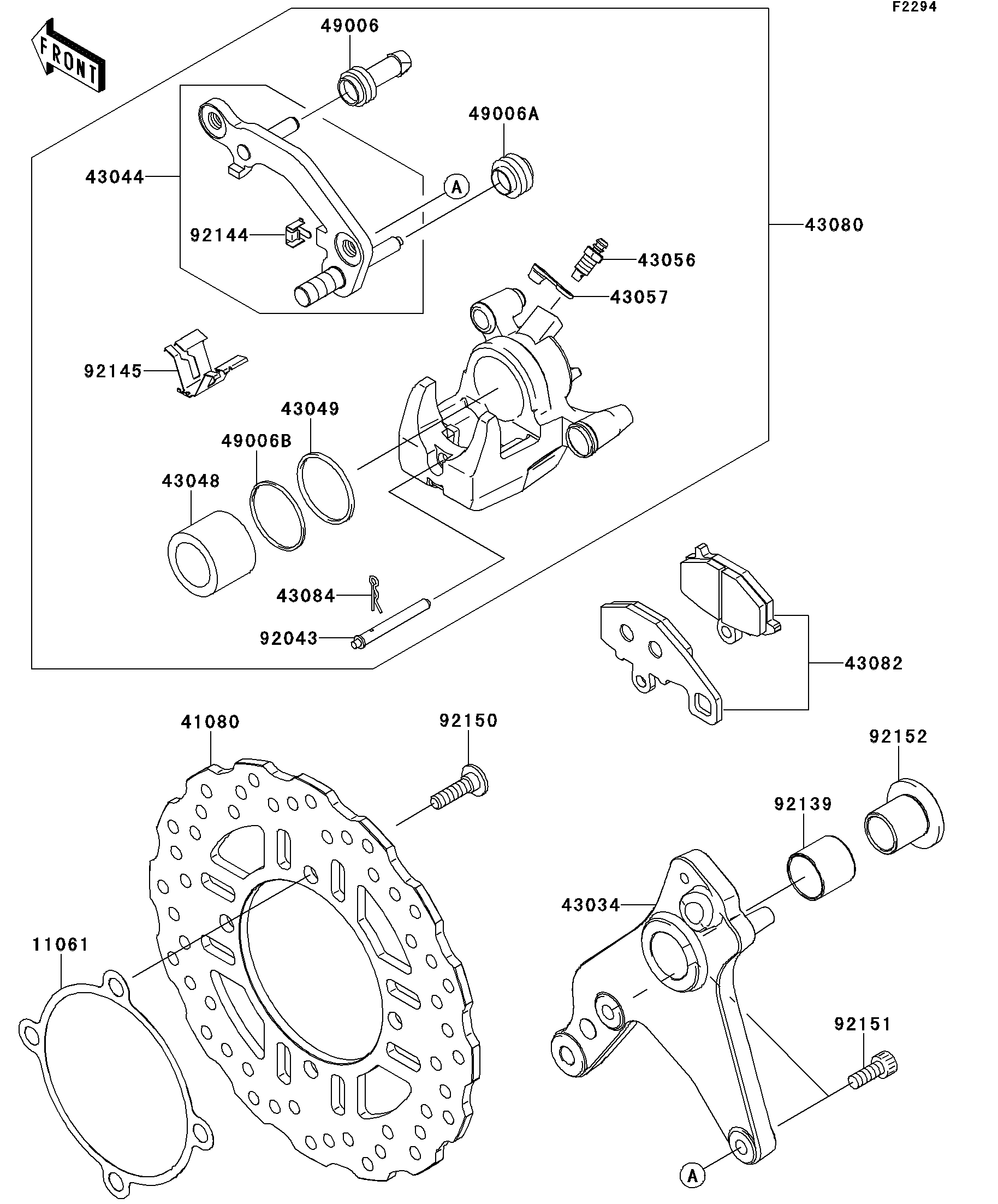

2010 Z1000 - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11061
41080
43034
43044
43048
43049
43056
43057
43080
43082
43084
49006
49006A
49006B
92043
92139
92144
92145
92150
92151
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11061 11061-0204 1
DISC,RR 41080 41080-0089 1
HOLDER-BRAKE,RR 43034 43034-0055 1
HOLDER-COMP-CALIPER,RR 43044 43044-0033 1
PISTON-CALIPER 43048 43048-0003 1
PACKING,PISTON SEAL 43049 43049-1097 1
BREATHER-BRAKE 43056 43056-0007 1
CAP-BREATHER 43057 43057-003 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0084-DJ 1
PAD-ASSY-BRAKE 43082 43082-0111 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
BOOT,PISTON SEAL 49006B 49006-1212 1
PIN,PAD 92043 92043-1489 1
BUSHING,25X28X25 92139 92139-0278 1
SPRING,STOPPER 92144 92144-1831 1
SPRING 92145 92145-0760 1
BOLT,SOCKET,8X30 92150 92150-1771 4
BOLT,SOCKET,8X20 92151 92151-1289 2
COLLAR,20X25X30 92152 92152-0807 1
