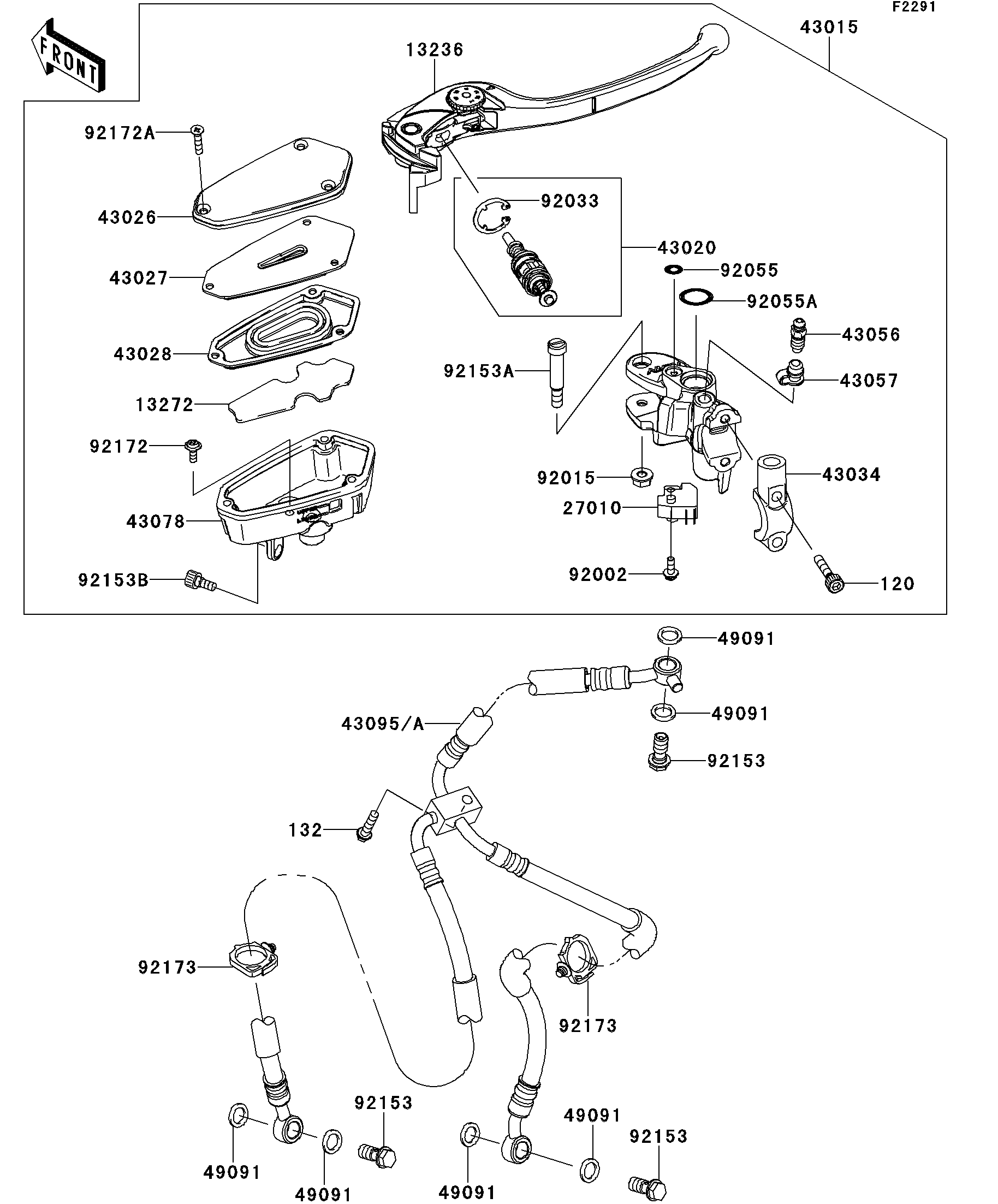

2010 Z1000 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13236
13272
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
49091
49091
49091
49091
49091
49091
92002
92015
92033
92055
92055A
92153
92153
92153
92153A
92153B
92172
92172A
92173
92173
120
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,FRONT BRAKE 13236 13236-0139 1
PLATE 13272 13272-0220 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0136 1
PISTON-COMP-BRAKE 43020 43020-0010 1
CAP-BRAKE 43026 43026-0011 1
PLATE-DIAPHRAGM 43027 43027-0003 1
DIAPHRAGM 43028 43028-0008 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0057 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-0048 1
HOSE-BRAKE,FR 43095 43095-0490 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
BOLT,SCREW,4X12 92002 92002-1323 1
NUT,FLANGED,6MM 92015 92015-1528 1
RING-SNAP 92033 92033-0034 1
RING-O 92055 92055-0137 1
RING-O,MASTER CYLINDER 92055A 92055-1251 1
BOLT,OIL,L=23 92153 92153-0627 3
BOLT,LEVER 92153A 92153-0868 1
BOLT,SOCKET,6X12 92153B 92153-1853 1
SCREW 92172 92172-0319 1
SCREW,4X20 92172A 92172-0320 3
CLAMP 92173 92173-0868 2
BOLT-SOCKET,6X22 120 120CB0622 2
BOLT-FLANGED-SMALL,6X25 132 132BB0625 1
