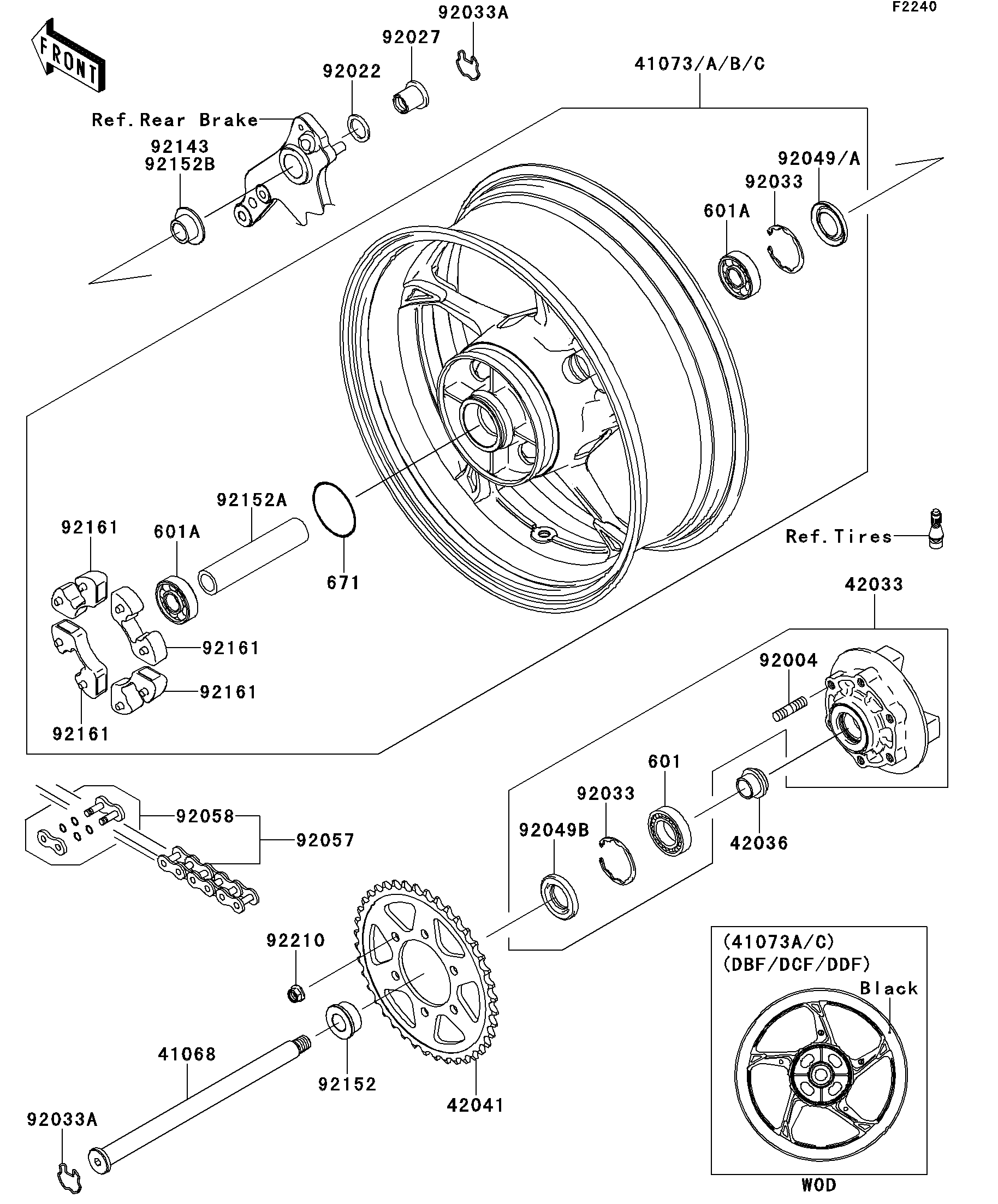

2010 Z1000 - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
41068
41073
42033
42036
42041
92004
92022
92027
92033
92033
92033A
92033A
92049A
92049B
92057
92058
92143
92152
92152A
92161
92161
92161
92161
92210
601
601A
601A
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,RR 41068 41068-1354 1
WHEEL-ASSY,RR,BLACK 41073 41073-0158-18 1 _________________________________________CA,US
COUPLING-ASSY,RR HUB 42033 42033-0028 1
SLEEVE,RR HUB,L=23 42036 42036-1251 1
SPROCKET-HUB,42T 42041 42041-0085 1
STUD,10X19 92004 92004-0028 6
WASHER,23X32X2.3 92022 92022-1618 1
COLLAR,RR AXLE,L=28 92027 92027-1810 1
RING-SNAP,52MM 92033 92033-1043 2
RING-SNAP,RR AXLE 92033A 92033-1156 2
SEAL-OIL,28X52X5 92049A 92049-1061 1
SEAL-OIL 92049B 92049-1287 1
CHAIN,DRIVE,EK525ZX-112L 92057 92057-0203 1
JOINT-CHAIN,DRIVE 92058 92058-0027 1
COLLAR,RR AXLE,RH,L=18 92143 92143-1915 1
COLLAR,RR AXLE,LH,L=18 92152 92152-0118 1
COLLAR,RR HUB,20.2X29X141 92152A 92152-0785 1
DAMPER,SHOCK,RR HUB 92161 92161-0342 4
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
BEARING-BALL 601 601B6205UU 1
BEARING-BALL,#6304UUC3 601A 601B6304UU 2
O RING,60MM 671 671B2560 1
