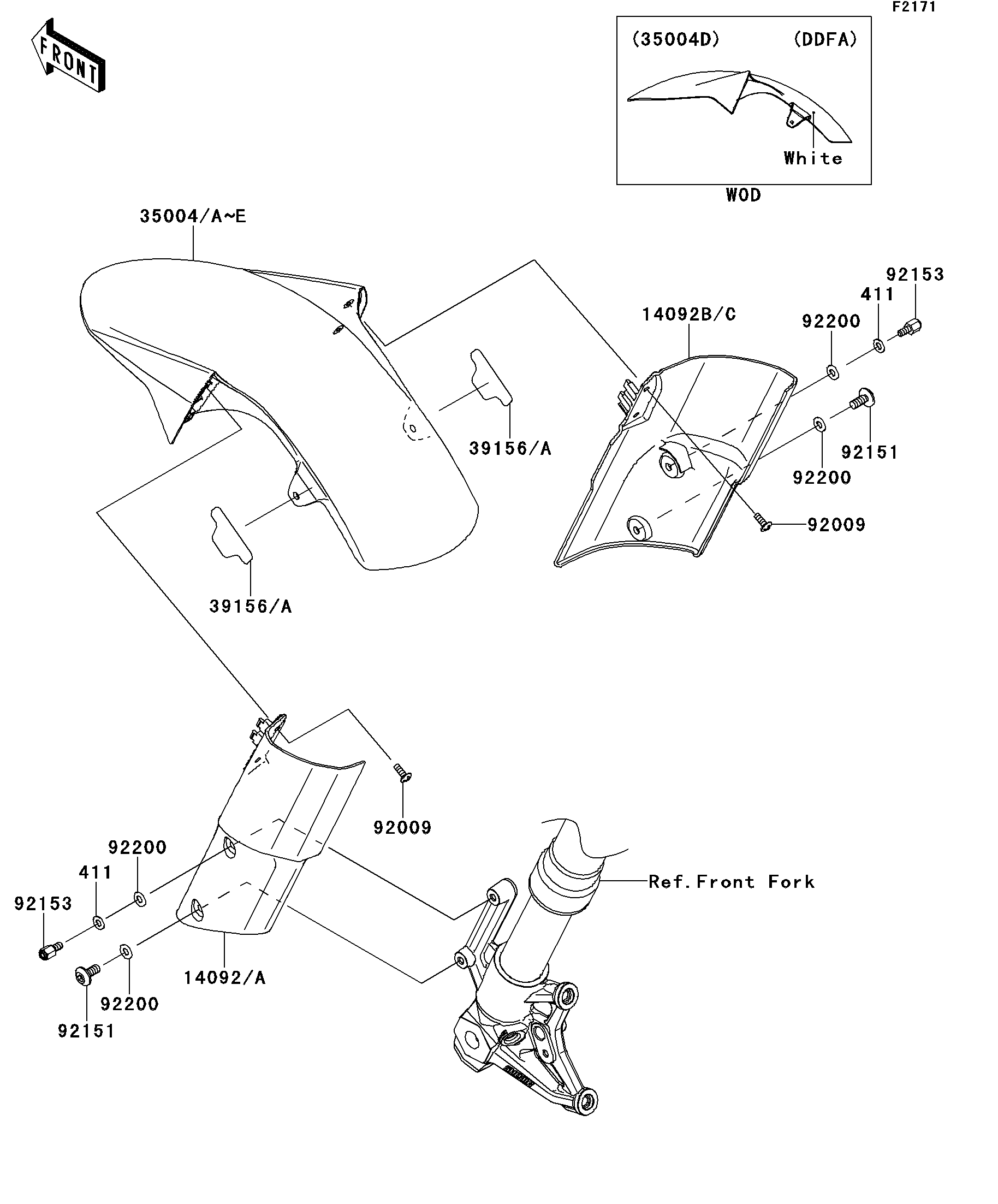

Parts Diagrams |
14092
14092B
35004
35004A
39156
39156
92009
92009
92151
92151
92153
92153
92200
92200
92200
92200
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FR FENDER,LH,EBONY | 14092 | 14092-0156-H8 | 1 | ||
| COVER,FR FENDER,RH,EBONY | 14092B | 14092-0157-H8 | 1 | ||
| FENDER-FRONT,C.B.ORANGE | 35004 | 35004-0129-17L | 1 | CA,US | |
| FENDER-FRONT,A.SILVER | 35004A | 35004-0129-17M | 1 | ||
| PAD,FR FENDER | 39156 | 39156-0711 | 2 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 4 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,6MM | 92153 | 92153-0335 | 2 | ||
| WASHER,6.5X14X1 | 92200 | 92200-1388 | 4 | ||
| WASHER-PLAIN,6.5X13X1 | 411 | 411AB0600 | 2 |
