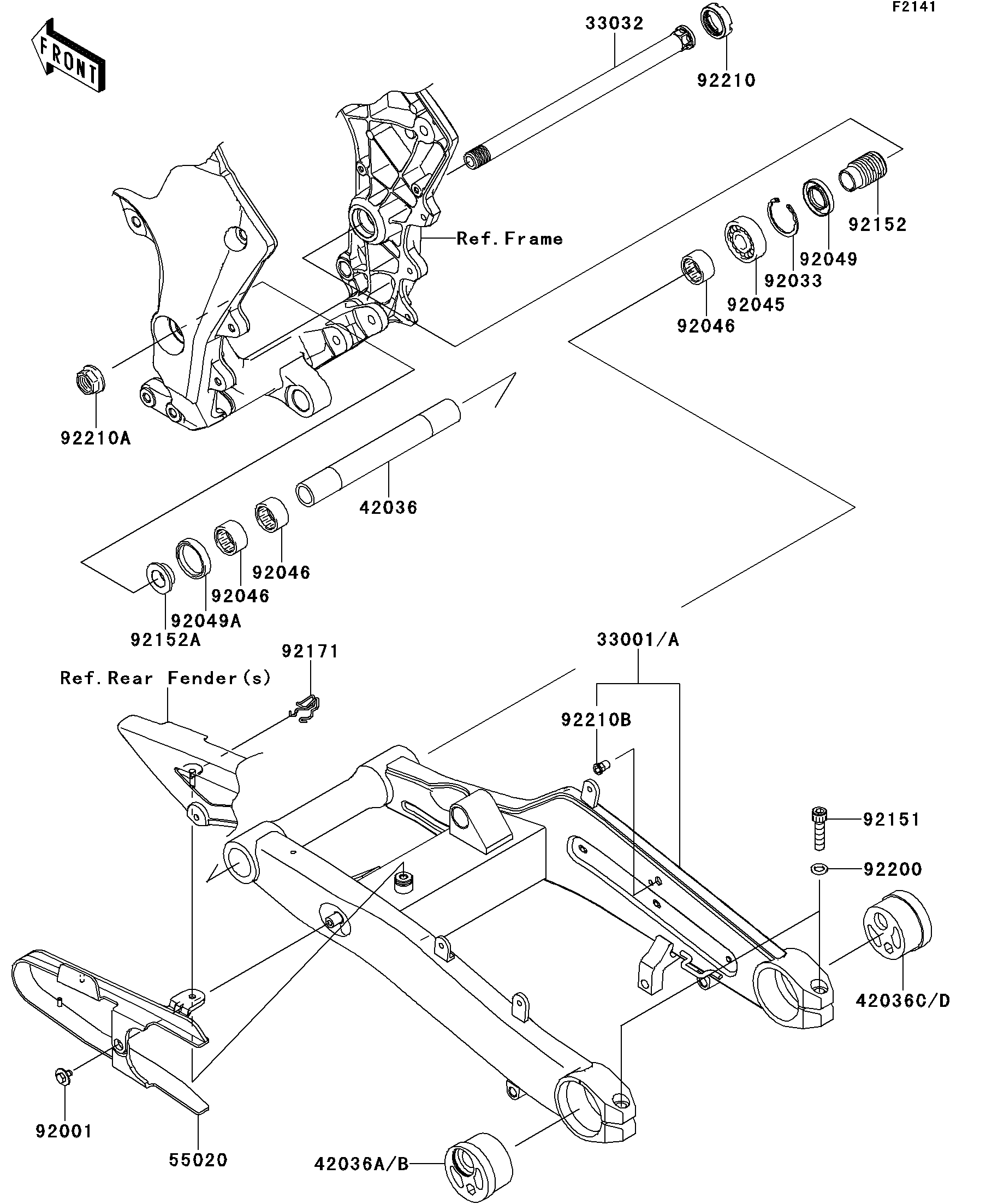

2010 Z1000 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
33001
33001A
33032
42036
42036A
42036C
55020
92001
92033
92045
92046
92046
92046
92049
92049A
92151
92152
92152A
92171
92200
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING,F.S.BLACK 33001 33001-0229-18R 1
ARM-COMP-SWING,P.SILVER 33001A 33001-0229-458 1 CA,US
SHAFT-SWING ARM 33032 33032-0013 1
SLEEVE,20.1X28X226 42036 42036-0069 1
SLEEVE,REAR AXLE,LH,A.GOLD 42036A 42036-1153-ES 1
SLEEVE,REAR AXLE,RH,A.GOLD 42036C 42036-1265-ES 1
GUARD,CHAIN 55020 55020-0549 1
BOLT,6X12 92001 92001-1771 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL,MHSA25X42X6 92049 92049-1314 1
SEAL-OIL,MHSA25X34X7 92049A 92049-1352 1
BOLT,SOCKET,10X40 92151 92151-1899 2
COLLAR,SWING ARM,L=47 92152 92152-0154 1
COLLAR,SWING ARM,L=12.5 92152A 92152-1234 1
CLAMP 92171 92171-0907 1
WASHER,10.5X18X2.3 92200 92200-0531 2
NUT,30MM 92210 92210-0134 1
NUT,FLANGED,20MM 92210A 92210-0320 1
NUT,POP,6MM,L=15 92210B 92210-1397 1
