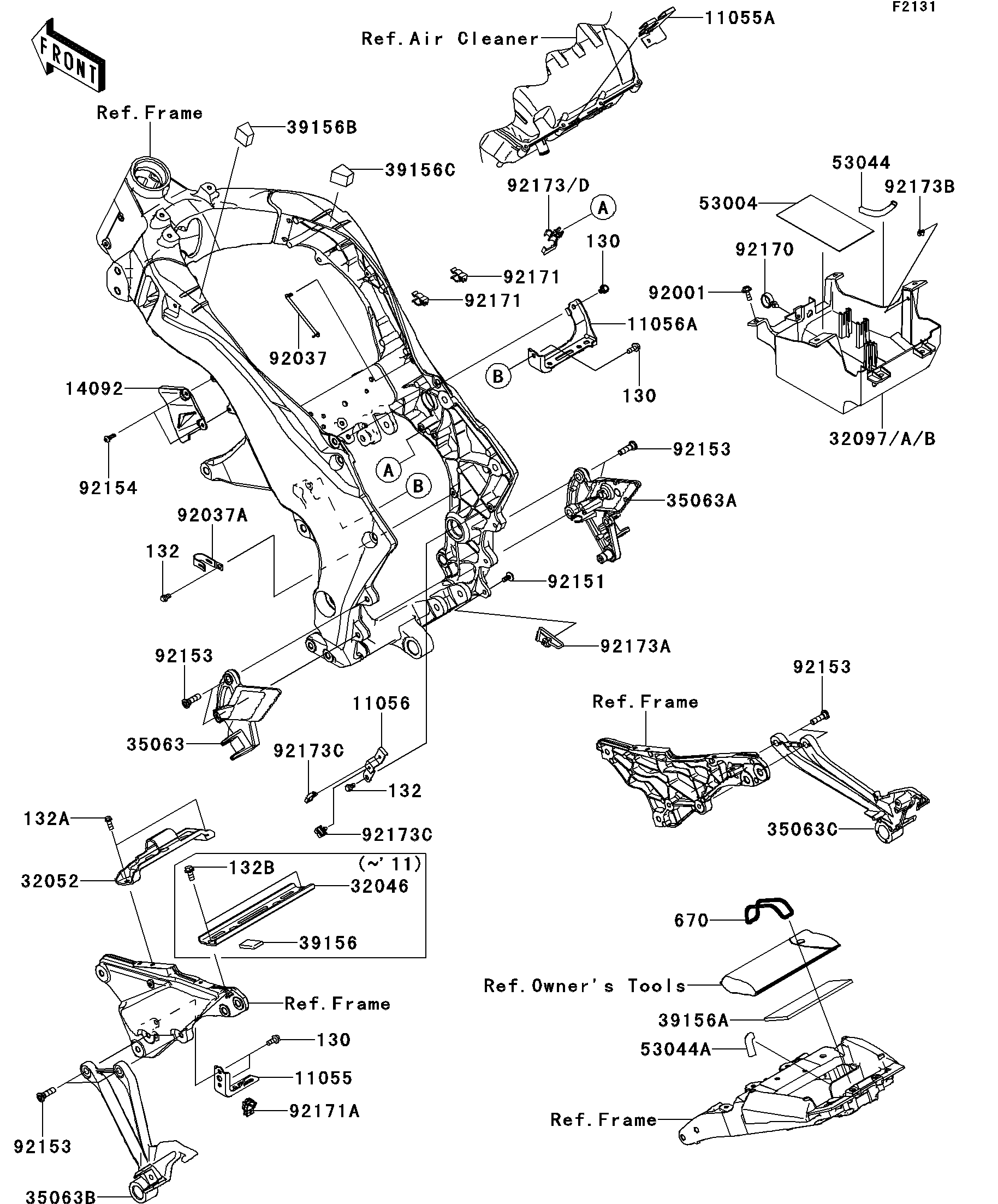

2010 Z1000 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
11056
11056
11056A
11056A
14092
14092
32046
32046
32052
32052
32097
32097
32097A
32097A
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
53004
53004
53044
53044
53044A
53044A
92001
92001
92037
92037
92037A
92037A
92151
92151
92153
92153
92153
92153
92153
92153
92153
92153
92154
92154
92170
92170
92171
92171
92171
92171
92171A
92171A
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173C
92173C
130
130
130
130
130
130
132
132
132
132
132A
132A
132B
132B
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR 11055 11055-1951 1
BRACKET 11055A 11055-1989 1
BRACKET 11056 11056-0106 1
BRACKET,REGULATOR 11056A 11056-0169 1
COVER,THROBO 14092 14092-0016 1
BRACKET-SEAT 32046 32046-0138 1
BRACKET-TANK 32052 32052-0137 1
CASE-BATTERY 32097 32097-0028 1 ( - JKAZRCD19AA004459)
CASE-BATTERY 32097A 32097-0036 1 (JKAZRCD19AA004460 - )
STAY,FR,LH,F.S.BLACK 35063 35063-0657-18R 1
STAY,FR,RH,F.S.BLACK 35063A 35063-0658-18R 1
STAY,RR,LH,F.S.BLACK 35063B 35063-0659-18R 1
STAY,RR,RH,F.S.BLACK 35063C 35063-0660-18R 1
PAD 39156 39156-0320 1
PAD,150X60X5 39156A 39156-0639 1
PAD,LH 39156B 39156-0660 1
PAD,RH 39156C 39156-0661 1
MAT,BATTERY 53004 53004-0560 1
TRIM 53044 53044-0018 1
TRIM,L=40 53044A 53044-1174 1
BOLT,6X18 92001 92001-1342 4
CLAMP,SPEED,L=80.5 92037 92037-1903 1
CLAMP 92037A 92037-2014 1
BOLT,SOCKET,6X14 92151 92151-1654 1
BOLT,SOCKET,8X30 92153 92153-1624 8
BOLT,SOCKET,5X16 92154 92154-0209 2
CLAMP 92170 92170-1067 1
CLAMP 92171 92171-0974 2
CLAMP 92171A 92171-1722 1
CLAMP,CLIP 92173 92173-0087 1
CLAMP 92173A 92173-0151 1
CLAMP 92173B 92173-0215 1
CLAMP 92173C 92173-0229 2
BOLT-FLANGED,6X16 130 130BA0616 4
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 2
BOLT-FLANGED-SMALL,8X16 132B 132BA0816 2
O RING,69.6X5.7 670 670B5070 1
