Parts Diagrams |

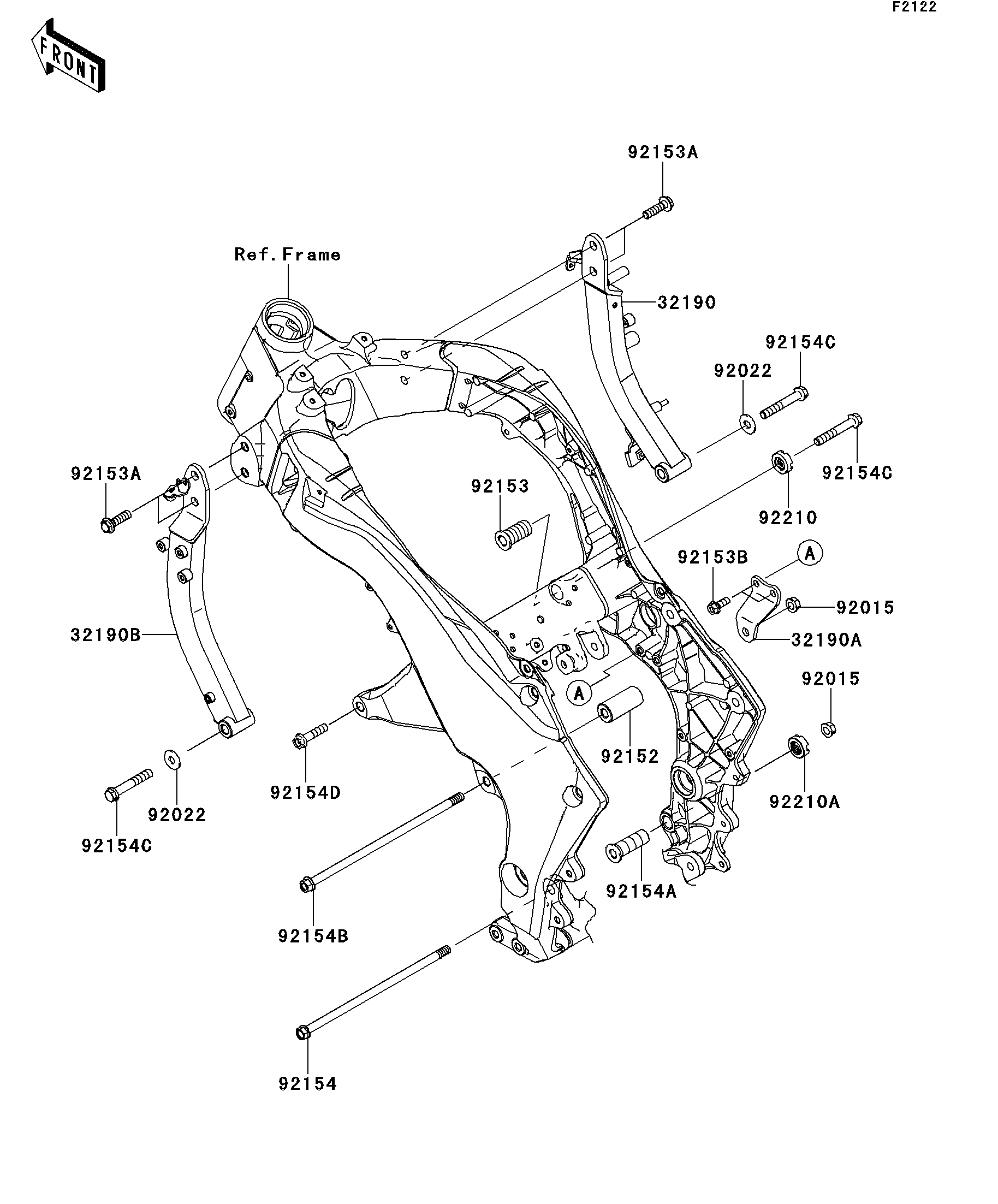

32190
32190A
32190B
92015
92015
92022
92022
92152
92153
92153A
92153A
92153B
92154
92154A
92154B
92154C
92154C
92154C
92154D
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-ENGINE,RH,F.BLACK | 32190 | 32190-0450-21 | 1 | ||
| BRACKET-ENGINE,CR CASE UPP,BLK | 32190A | 32190-0458-18R | 1 | ||
| BRACKET-ENGINE,LH,F.BLACK | 32190B | 32190-0465-21 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1180 | 2 | ||
| WASHER,10.5X26X2.3,BLACK | 92022 | 92022-1396 | 2 | ||
| COLLAR,11X26X56.5 | 92152 | 92152-0853 | 1 | ||
| BOLT,SOCKET,20X43 | 92153 | 92153-0488 | 1 | ||
| BOLT,FLANGED,10X35 | 92153A | 92153-0802 | 4 | ||
| BOLT,FLANGED,8X20 | 92153B | 92153-1554 | 2 | ||
| BOLT,FLANGED,10X255 | 92154 | 92154-0266 | 1 | ||
| BOLT,ENGINE MOUNT,18X53.5 | 92154A | 92154-0267 | 1 | ||
| BOLT,FLANGED,10X270 | 92154B | 92154-0268 | 1 | ||
| BOLT,FLANGED,10X65 | 92154C | 92154-0312 | 3 | ||
| BOLT,FLANGED,10X40 | 92154D | 92154-0313 | 1 | ||
| NUT,20MM | 92210 | 92210-0591 | 1 | ||
| NUT,18MM | 92210A | 92210-1203 | 1 |
| BRACKET-ENGINE,RH,F.BLACK | |
| REF # | 32190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,CR CASE UPP,BLK | |
| REF # | 32190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,LH,F.BLACK | |
| REF # | 32190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,11X26X56.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,20X43 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X35 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X20 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X255 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ENGINE MOUNT,18X53.5 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X270 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X65 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X40 | |
| REF # | 92154D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,18MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
