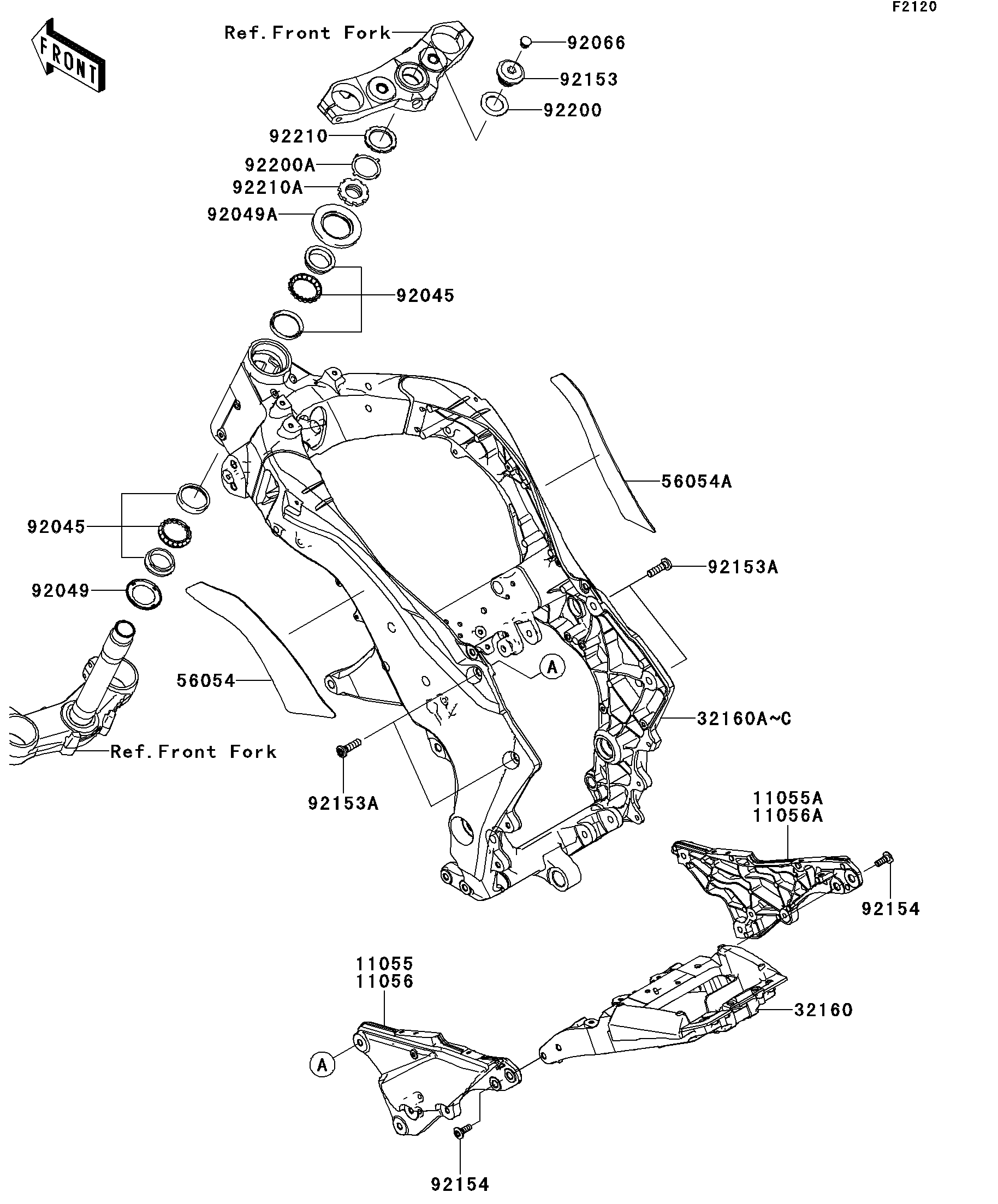

2010 Z1000 - Frame

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
32160
32160A
56054
56054A
92045
92045
92049
92049A
92066
92153
92153A
92153A
92154
92154
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR,LH,F.S.BLACK 11055 11055-1607-18R 1
BRACKET,RR,RH,F.S.BLACK 11055A 11055-1608-18R 1
FRAME-COMP,RR 32160 32160-0410 1
FRAME-COMP,MAIN,F.S.BLACK 32160A 32160-0411-18R 1
MARK,FRAME PAD,LH 56054 56054-0607 1
MARK,FRAME PAD,RH 56054A 56054-0608 1
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL,DS35X55X4 92049 92049-0022 1
SEAL-OIL,XMH 43 75 6.4J 92049A 92049-1382 1
PLUG 92066 92066-0071 1
BOLT,26MM 92153 92153-0474 1
BOLT,SOCKET,10X35 92153A 92153-1442 4
BOLT,SOCKET,8X23 92154 92154-0379 4
WASHER,27X42X2.3 92200 92200-0081 1
WASHER 92200A 92200-0281 1
NUT,STEERING STEM 35MM 92210 92210-0062 1
NUT,STEERING STEM,35MM 92210A 92210-0077 1
