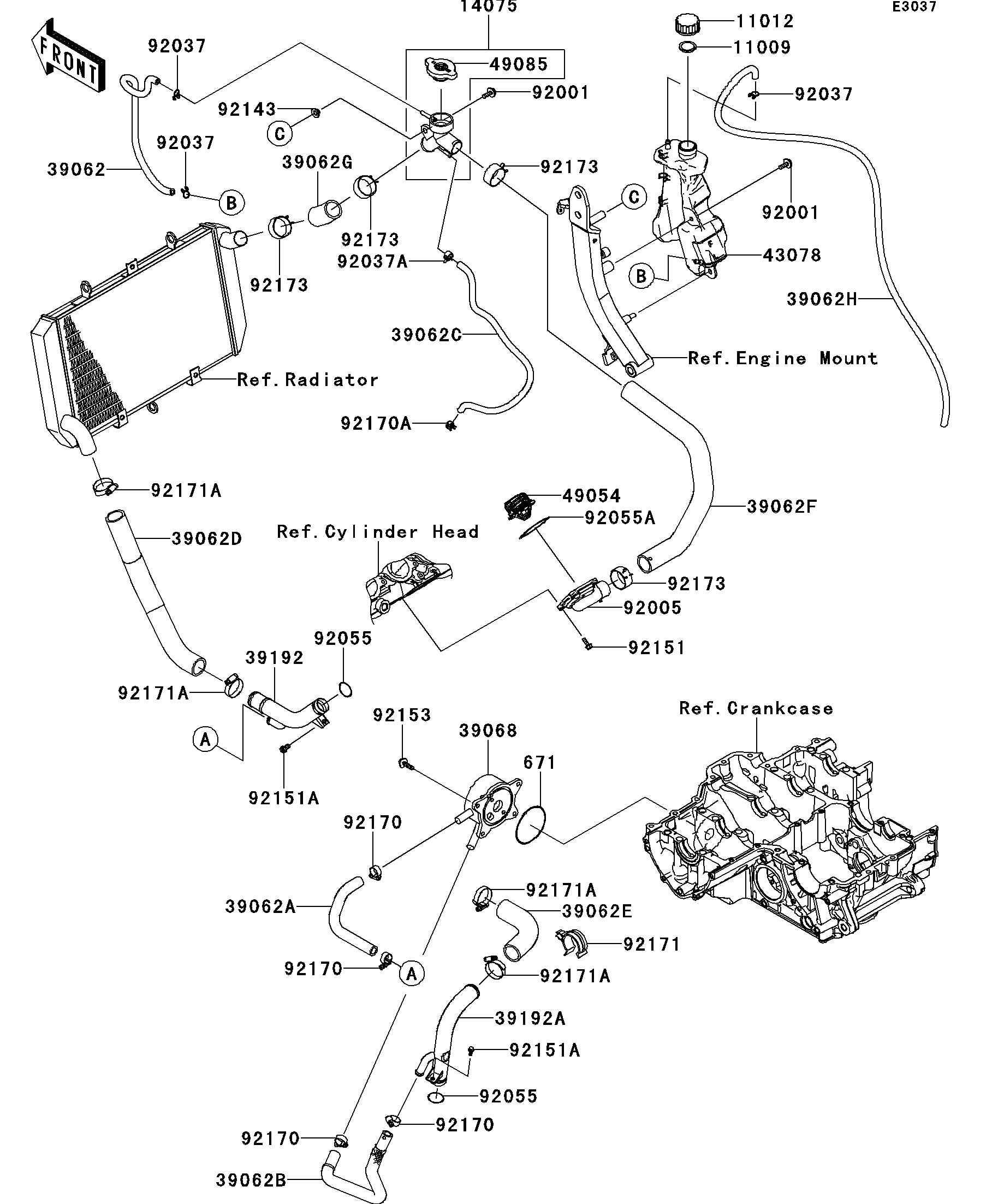

2010 Z1000 - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11012
14075
39062
39062A
39062B
39062C
39062D
39062E
39062F
39062G
39062H
39068
39192
39192A
43078
49054
49085
92001
92001
92005
92037
92037
92037
92037A
92055
92055
92055A
92143
92151
92151A
92151A
92153
92170
92170
92170
92170
92170A
92171
92171A
92171A
92171A
92171A
92173
92173
92173
92173
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
CAP-ASSY 14075 14075-0011 1
HOSE-COOLING,RETURN 39062 39062-0307 1
HOSE-COOLING,PIPE-OIL COOLER 39062A 39062-0308 1
HOSE-COOLING,PIPE-OIL COOLER 39062B 39062-0309 1
HOSE-COOLING,AIR BLEED 39062C 39062-0310 1
HOSE-COOLING,RAD.-PIPE 39062D 39062-0311 1
HOSE-COOLING,PIPE-CYLINDER 39062E 39062-0312 1
HOSE-COOLING,CAP-THERMO 39062F 39062-0313 1
HOSE-COOLING,CAP-RAD. 39062G 39062-0314 1
HOSE-COOLING 39062H 39062-1873 1
COOLER-ASSY-OIL 39068 39068-0010 1
PIPE-WATER 39192 39192-0114 1
PIPE-WATER 39192A 39192-0116 1
RESERVOIR 43078 43078-0064 1
THERMOSTAT 49054 49054-0004 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
BOLT,6X18 92001 92001-1342 2
FITTING,THERMO CAP 92005 92005-0076 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,TUBE 92037A 92037-1505 1
RING-O,20.8X2.4 92055 92055-0114 2
RING-O,THERMOSTAT CAP 92055A 92055-1699 1
COLLAR 92143 92143-1057 1
BOLT,5X14 92151 92151-1764 4
BOLT,6X12 92151A 92151-1997 2
BOLT,6X22 92153 92153-0725 4
CLAMP 92170 92170-1283 4
CLAMP 92170A 92170-1493 1
CLAMP 92171 92171-0130 1
CLAMP 92171A 92171-0179 4
CLAMP 92173 92173-0072 4
O RING,65MM 671 671B2565 1
