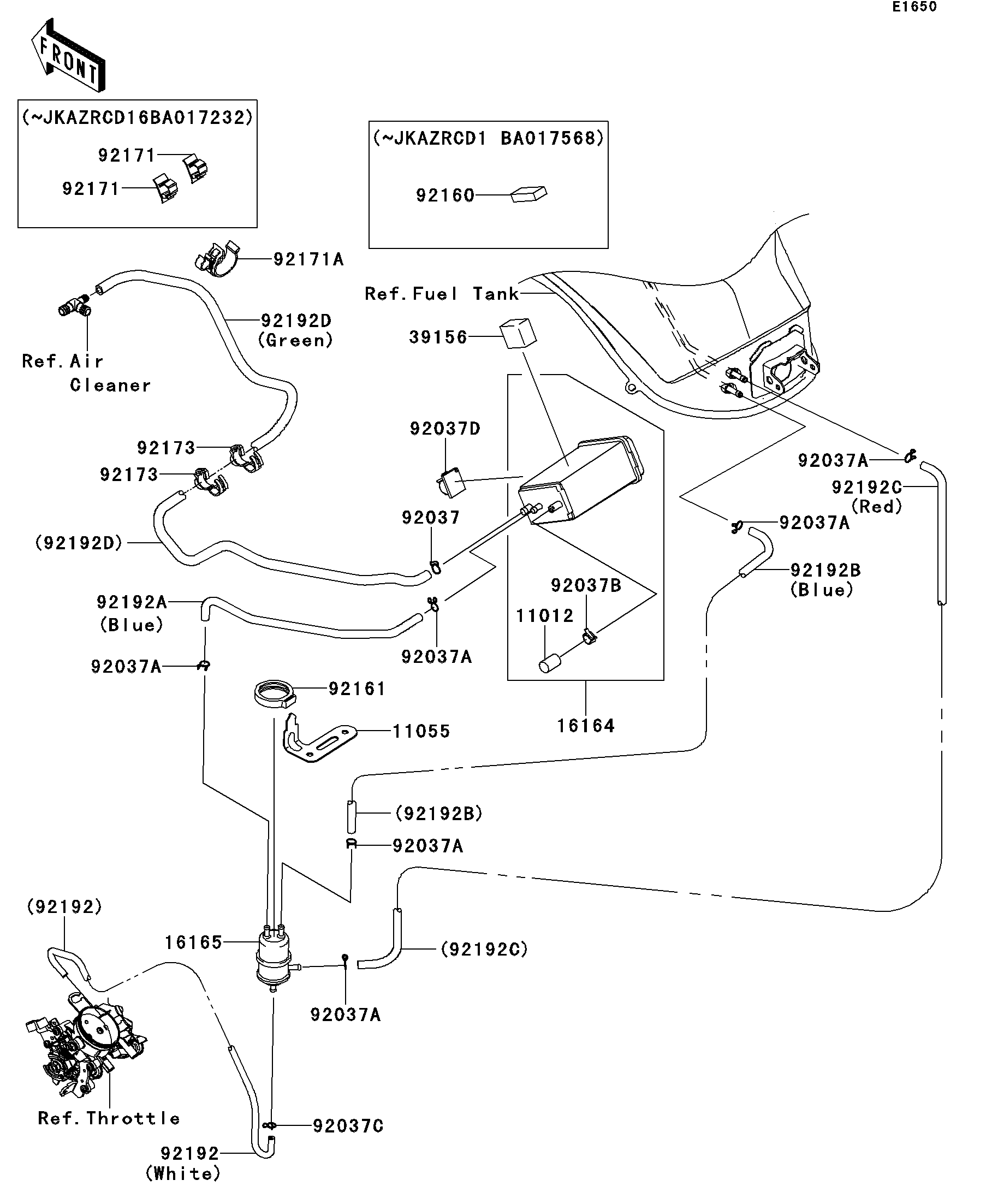

2010 Z1000 - Fuel Evaporative System(CA)
11012
11012
11055
11055
16164
16164
16165
16165
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037C
92037C
92037D
92037D
92160
92160
92161
92161
92171
92171
92171
92171
92171A
92171A
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET | 11055 | 11055-1793 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 6 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 1 | CA | |
| CLAMP,HARNESS | 92037D | 92037-1816 | 1 | CA | |
| DAMPER | 92160 | 92160-1439 | 1 | CA | |
| DAMPER | 92161 | 92161-0239 | 1 | CA | |
| CLAMP,HARNESS | 92171 | 92171-1269 | 2 | CA | |
| CLAMP | 92171A | 92171-1276 | 1 | CA | |
| TUBE,THROTTLE-SEPARATOR,WHITE | 92192 | 92192-0175 | 1 | CA | |
| TUBE,CANISTER-SEPARATOR,BLUE | 92192A | 92192-0847 | 1 | CA | |
| TUBE,TANK-SEPARATOR,BLUE | 92192B | 92192-0848 | 1 | CA | |
| TUBE,TANK-SEPARATOR,RED | 92192C | 92192-0849 | 1 | CA | |
| TUBE,CANISTER-A/C,GREEN | 92192D | 92192-0850 | 1 | CA |
