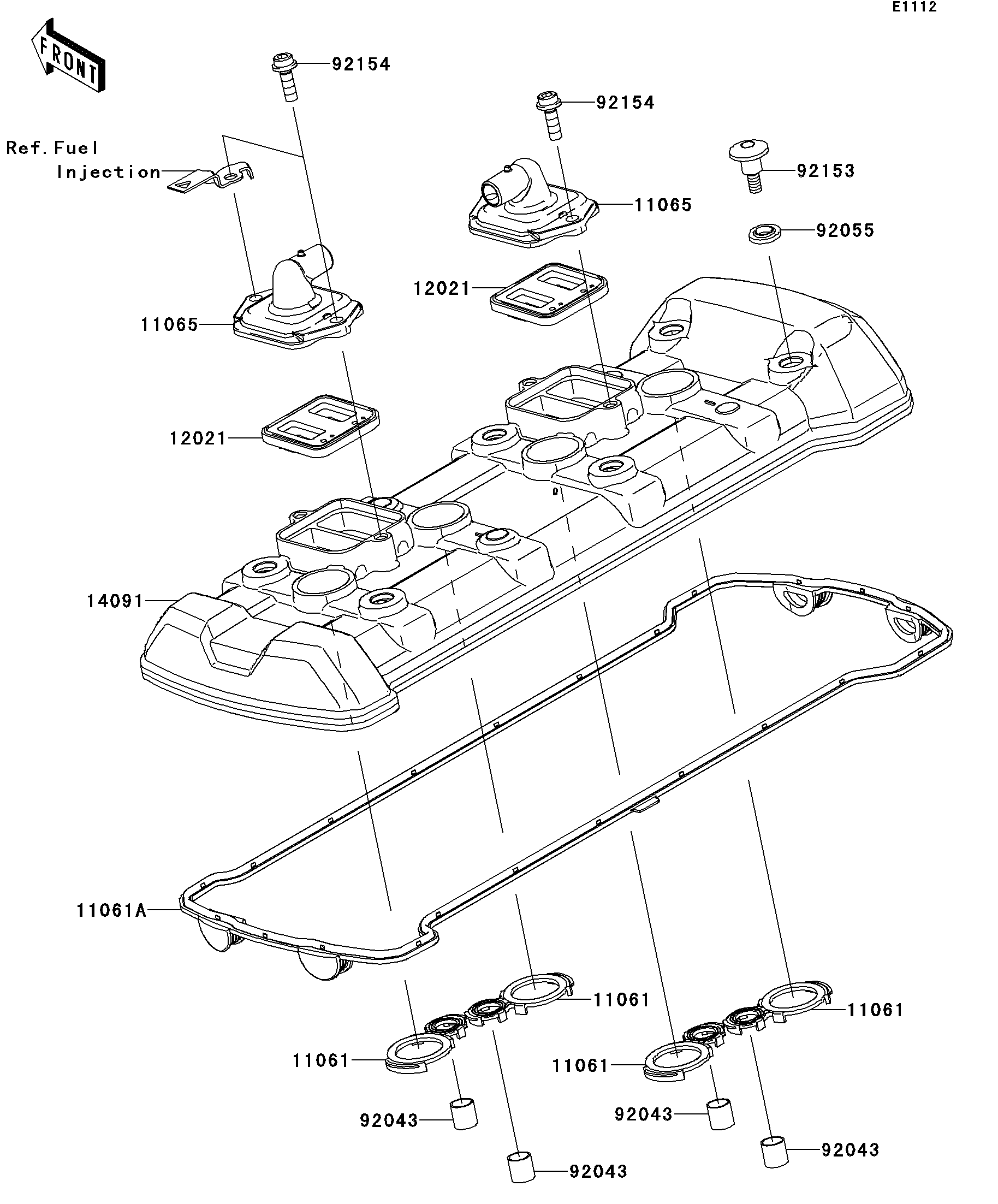

Parts Diagrams |
11061
11061
11061
11061
11061A
11065
11065
12021
12021
14091
92043
92043
92043
92043
92055
92153
92154
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SPARK PLUG | 11061 | 11061-0104 | 4 | ||
| GASKET,HEAD | 11061A | 11061-0438 | 1 | ||
| CAP,HEAD COVER | 11065 | 11065-0328 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-0016 | 2 | ||
| COVER,HEAD | 14091 | 14091-1771 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O | 92055 | 92055-0143 | 6 | ||
| BOLT,SOCKET,6X22.5 | 92153 | 92153-1779 | 6 | ||
| BOLT,SOCKET,6X18 | 92154 | 92154-0351 | 4 |
