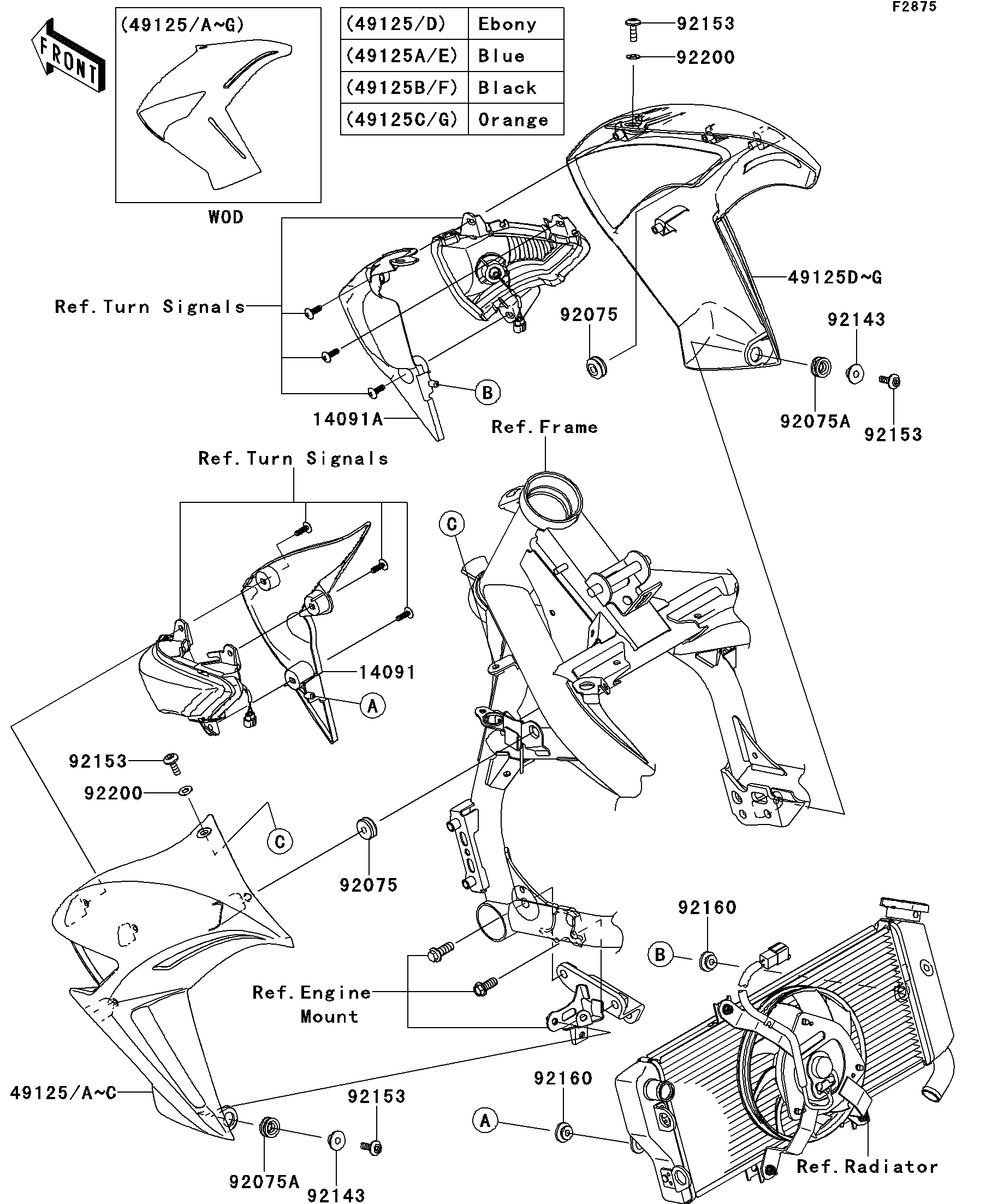

2010 ER-6n - Shroud

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
49125
49125B
49125C
49125D
49125F
49125G
92075
92075
92075A
92075A
92143
92143
92153
92153
92153
92153
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SHROUD,LH 14091 14091-1590 1
COVER,SHROUD,RH 14091A 14091-1591 1
SHROUD,LH,EBONY 49125 49125-0033-H8 1 CN
SHROUD,LH,M.F.S.BLACK 49125B 49125-0033-15V 1 CA,US
SHROUD,LH,P.B.ORANGE 49125C 49125-0033-848 1 CN
SHROUD,RH,EBONY 49125D 49125-0034-H8 1 CN
SHROUD,RH,M.F.S.BLACK 49125F 49125-0034-15V 1 CA,US
SHROUD,RH,P.B.ORANGE 49125G 49125-0034-848 1 CN
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1634 2
COLLAR 92143 92143-1962 2
BOLT,6X18 92153 92153-0816 4
DAMPER 92160 92160-1613 2
WASHER,6.5X14X1 92200 92200-1388 2
