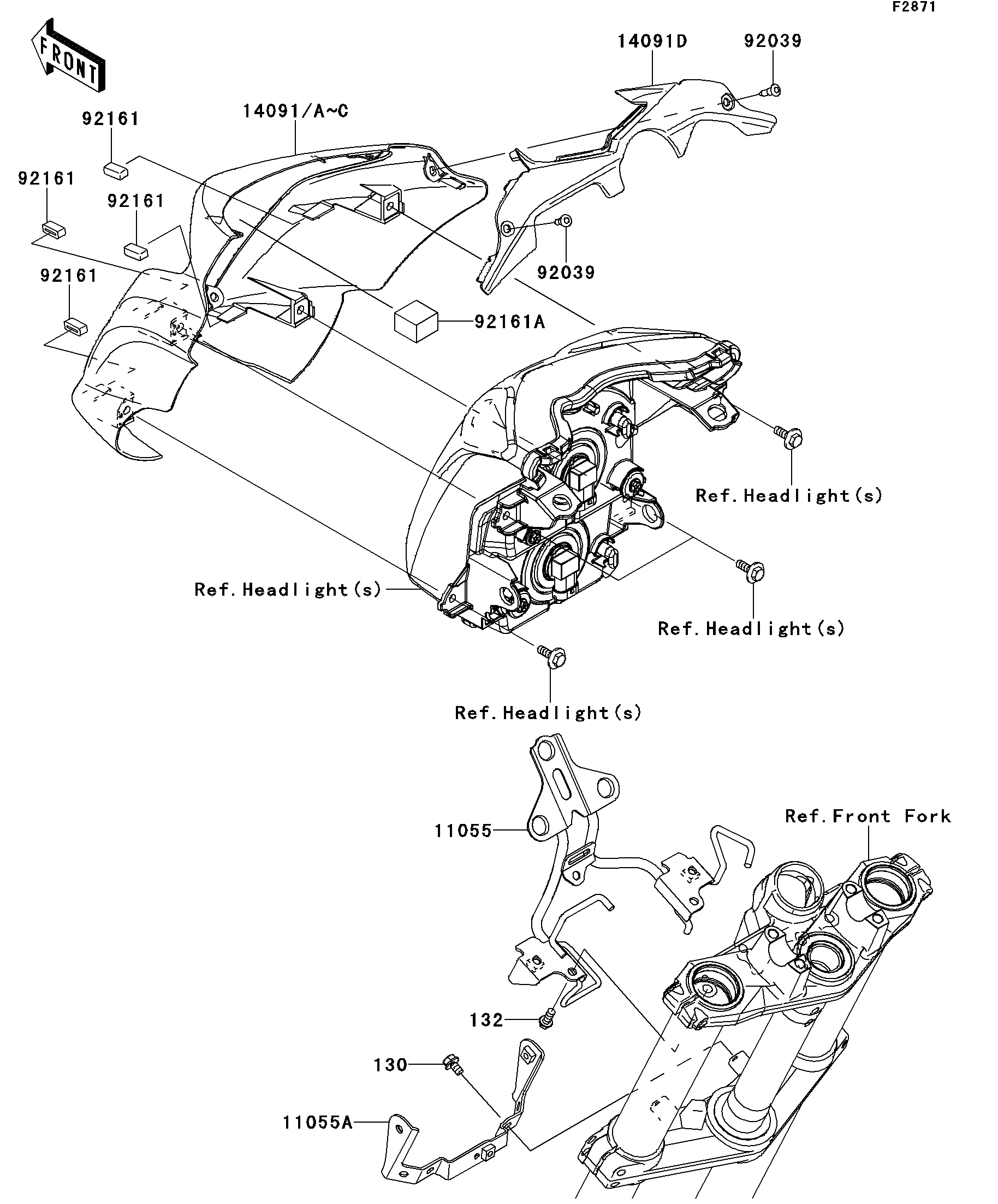

11055
11055A
14091
14091B
14091C
14091D
92039
92039
92161
92161
92161
92161
92161A
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP,UPP 11055 11055-0591 1
BRACKET,HEAD LAMP,LWR 11055A 11055-0592 1
COVER,HEAD LAMP,EBONY 14091 14091-1587-H8 1 CN
COVER,HEAD LAMP,M.F.S.BLACK 14091B 14091-1587-15V 1 CA,US
COVER,HEAD LAMP,P.B.ORANGE 14091C 14091-1587-848 1 CN
COVER,INNER,HEAD LAMP 14091D 14091-1589 1
RIVET 92039 92039-0023 2
DAMPER 92161 92161-0620 4
DAMPER,T=13 92161A 92161-0792 1
BOLT-FLANGED,6X10 130 130BB0610 2
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
