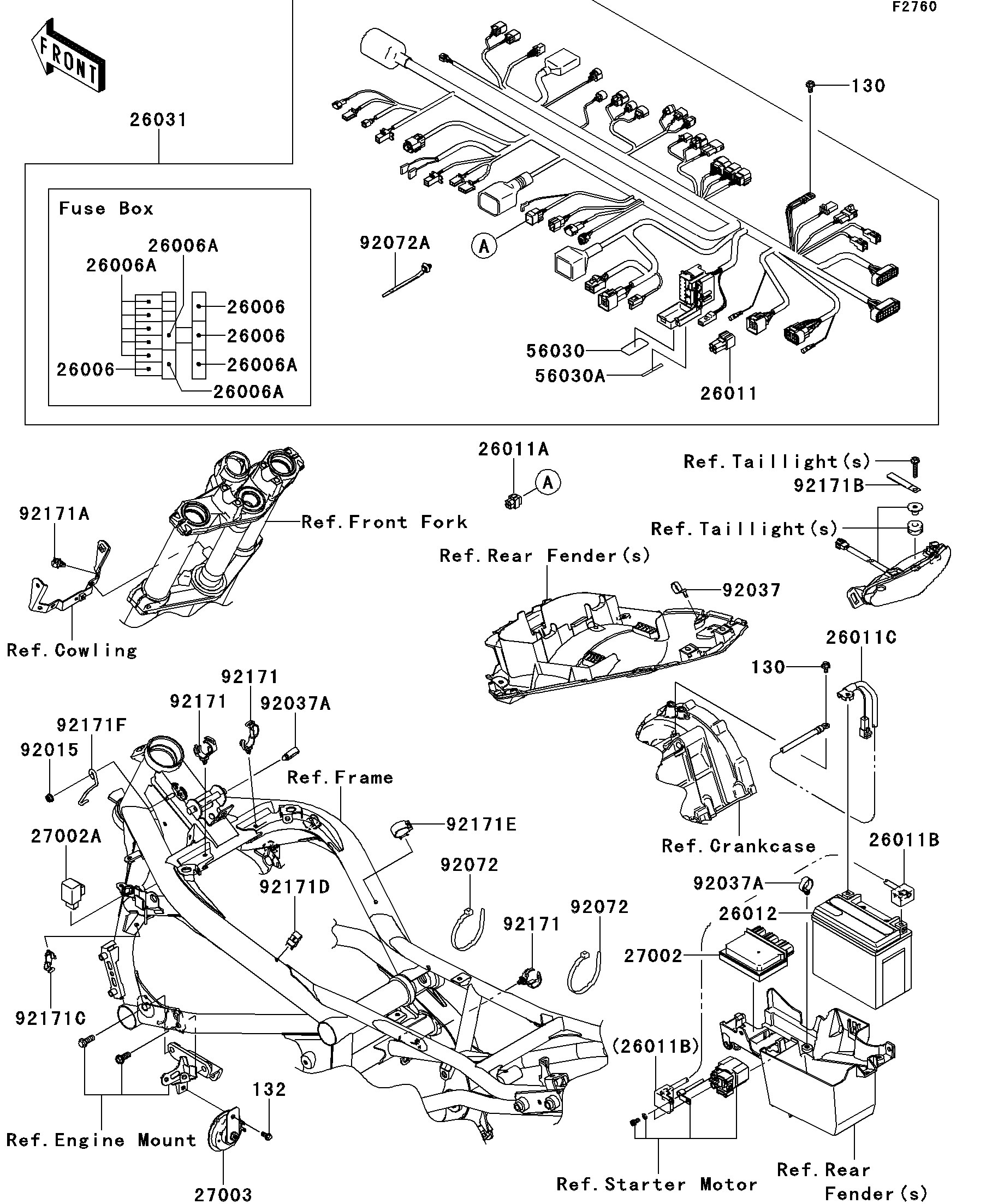

2010 ER-6n - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011A
26011B
26011C
26012
26031
27002
27002A
27003
56030
56030A
92015
92037
92037A
92037A
92072
92072
92072A
92171
92171
92171
92171A
92171B
92171C
92171D
92171E
92171F
130
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE,15A 26006 26006-0001 3
FUSE,10A 26006A 26006-1078 8
WIRE-LEAD 26011 26011-0082 1
WIRE-LEAD,SENSOR CONNECTOR 26011A 26011-0101 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0247 1
WIRE-LEAD,BATTERY(-) 26011C 26011-0250 1
BATTERY,FTX12-BS,12V 10AH 26012 26012-0109 1
HARNESS,MAIN 26031 26031-0670 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0056 1
LABEL,FUSE BOX 56030 56030-0046 1
LABEL,FUSE BOX 56030A 56030-0098 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP,HOSE 92037A 92037-1827 2
BAND,L=365 92072 92072-1197 2
BAND 92072A 92072-1414 12
CLAMP,DIA=20 92171 92171-0069 3
CLAMP 92171A 92171-0640 1
CLAMP 92171B 92171-0652 1
CLAMP,DIA=13 92171C 92171-1415 1
CLAMP,DIA=15 92171D 92171-1424 1
CLAMP,DIA=25 92171E 92171-1559 1
CLAMP 92171F 92171-1897 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
