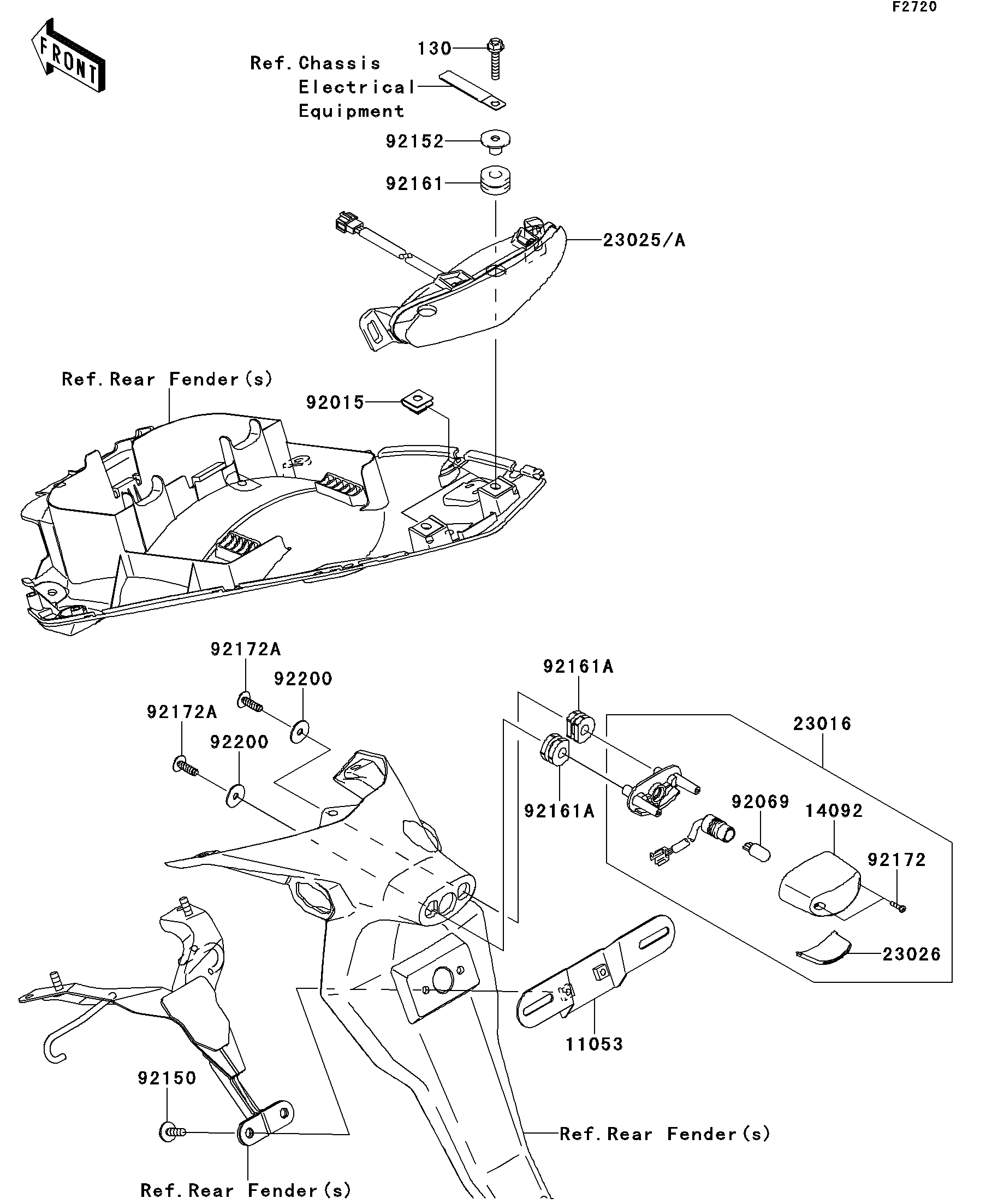

2010 ER-6n - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
14092
23016
23025A
23026
92015
92069
92150
92152
92161
92161A
92161A
92172
92172A
92172A
92200
92200
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11053 11053-0400 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0033 1
LAMP-TAIL,LED 23025A 23025-0066 1
LENS,LICENSE LAMP 23026 23026-0015 1
NUT,6MM 92015 92015-1094 2
BULB,12V 5W 92069 92069-1016 1
BOLT,FLANGED,6X20 92150 92150-1633 2
COLLAR 92152 92152-0365 2
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-0776 2
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
WASHER,5.5X20X1.2 92200 92200-0284 2
BOLT-FLANGED,6X30 130 130BB0630 2
