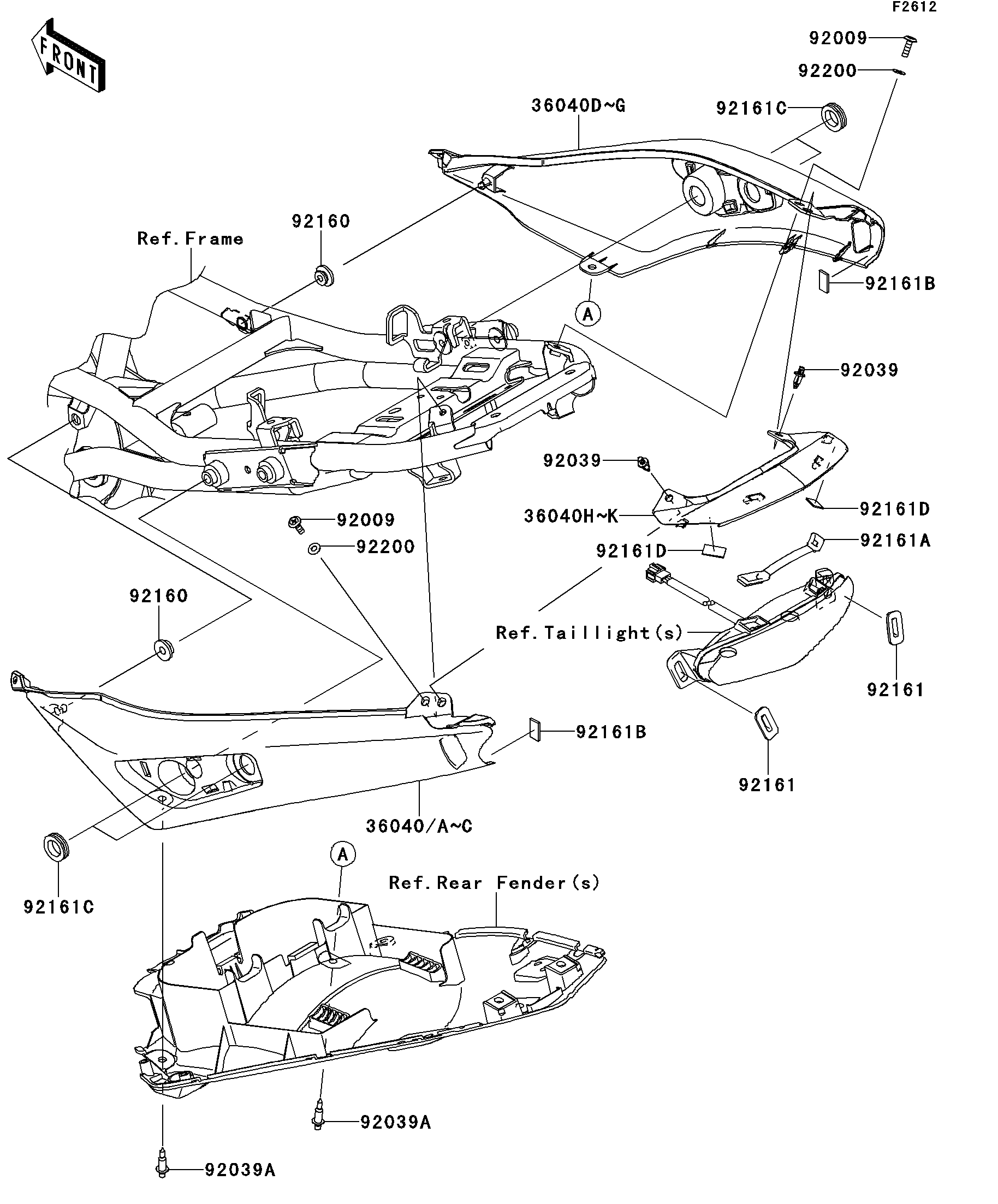

2010 ER-6n - Seat Cover

DOWNLOAD PDF
SELECT A NEW PART
36040
36040B
36040C
36040D
36040F
36040G
36040H
36040J
36040K
92009
92009
92039
92039
92039A
92039A
92160
92160
92161
92161
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-TAIL,LH,EBONY 36040 36040-0081-H8 1 CN
COVER-TAIL,LH,M.F.S.BLACK 36040B 36040-0081-15V 1 CA,US
COVER-TAIL,LH,P.B.ORANGE 36040C 36040-0081-848 1 CN
COVER-TAIL,RH,EBONY 36040D 36040-0082-H8 1 CN
COVER-TAIL,RH,M.F.S.BLACK 36040F 36040-0082-15V 1 CA,US
COVER-TAIL,RH,P.B.ORANGE 36040G 36040-0082-848 1 CN
COVER-TAIL,CNT,EBONY 36040H 36040-0083-H8 1 CN
COVER-TAIL,CNT,M.F.S.BLACK 36040J 36040-0083-15V 1 CA,US
COVER-TAIL,CNT,P.B.ORANGE 36040K 36040-0083-848 1 CN
SCREW,5X16 92009 92009-1909 2
RIVET 92039 92039-0023 2
RIVET 92039A 92039-1283 2
DAMPER 92160 92160-1613 2
DAMPER,TAIL LAMP L&R 92161 92161-0624 2
DAMPER,TAIL LAMP UPP 92161A 92161-0625 1
DAMPER 92161B 92161-0726 2
DAMPER 92161C 92161-0765 4
DAMPER,20X10X1 92161D 92161-0821 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
