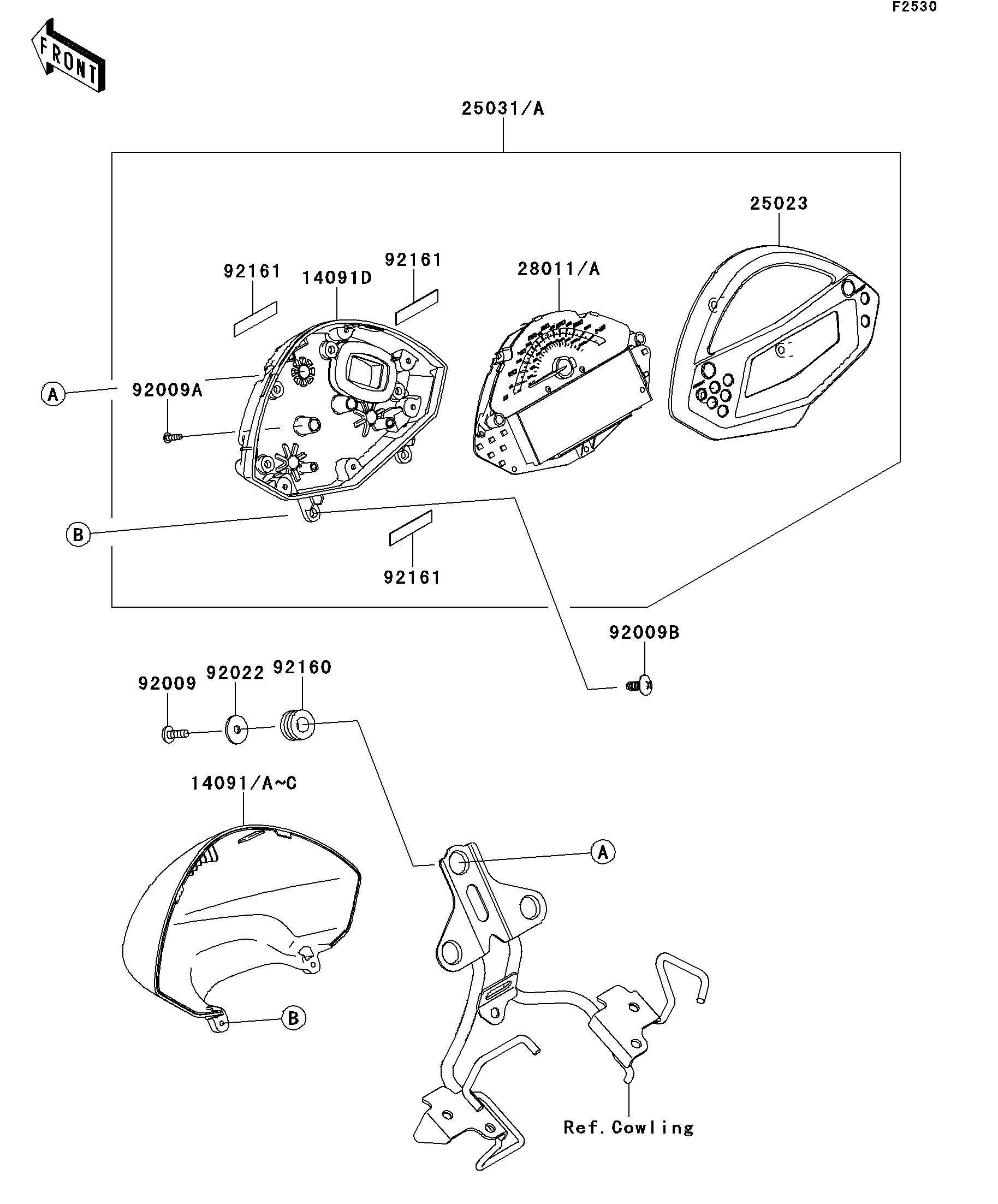

2010 ER-6n - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
14091
14091B
14091C
14091D
25023
25031
25031A
28011
28011A
92009
92009A
92009B
92022
92160
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER,EBONY 14091 14091-1588-H8 1 CN
COVER,METER,M.F.S.BLACK 14091B 14091-1588-15V 1 CA,US
COVER,METER,P.B.ORANGE 14091C 14091-1588-848 1 CN
COVER,METER,LWR 14091D 14091-1713 1
COVER-METER CASE 25023 25023-0046 1
METER-ASSY,KPH 25031 25031-0222 1 CN
METER-ASSY,MPH 25031A 25031-0229 1 CA,US
METER,SPEED&LCD 28011 28011-0121 1 CN
METER,SPEED&LCD 28011A 28011-0122 1 CA,US
SCREW,TAPPING,5X14 92009 92009-1197 3
SCREW,TAPPING,3X16 92009A 92009-1391 9
SCREW,TAPPING,4X14 92009B 92009-1593 2
WASHER,5.5X20X1.2 92022 92022-1405 3
DAMPER 92160 92160-1167 3
DAMPER 92161 92161-0354 3
